5707-5717 MHz C Band PSat 47 dBm RF Power amplifier Amplifiers



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 5707   5717 MHz
RF INPUT   0   dBm
P-sat Power Output   47   dBm
Power Gain   47   dB
Power Gain Flatness   ±1   dB
Harmonic Signals   -30   dBc
Input VSWR   1.5 2
Operating Voltage   28   VDC
Currents   8   A
In-Out impedance   50



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 162*90*23 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB9 --
Cooling Consider heat dissipation with the system --
Mounting 3-4 Thru Hole --
Weight ≤1.5 kg
ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-2 +VDC +28V
3 GND Ground
4 NC NC
5 Amp Enable Disable: TTL “Low”, Enable : TTL “High” (Low : 0~0.5V, High : 2.5~5V)
6-9 GND Ground

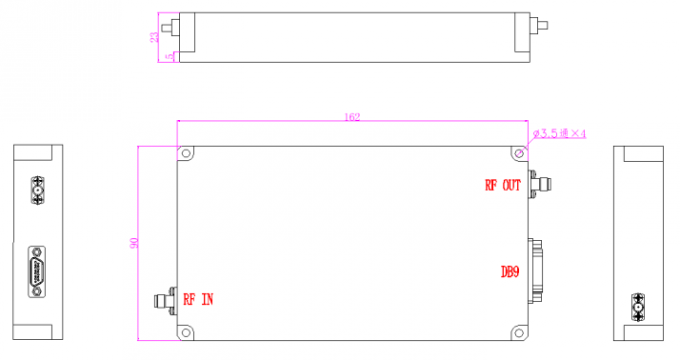

Outline Dimensional Drawing
