Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication
  • Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication

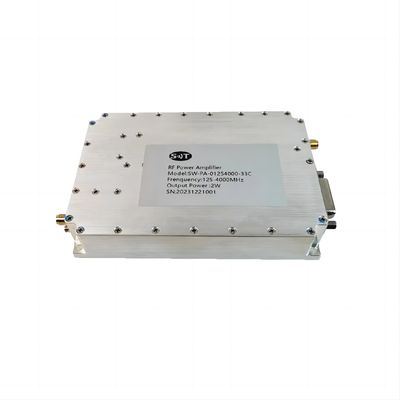

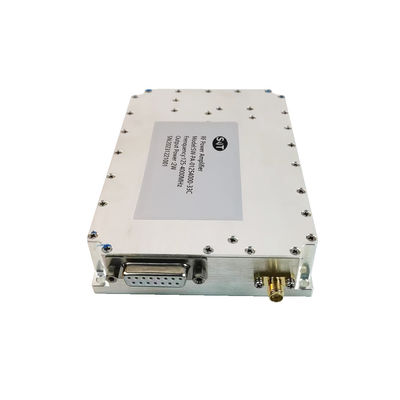

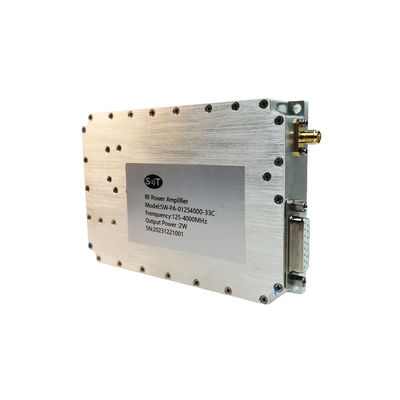

Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication

Place of Origin China
Brand Name SWT
Model Number SW-PA-01254000-33C
Product Details
Frequency Range:
125-4000MHz
Input Power:
0dBm
Gain Flatness:
±2dB
Psat Output Power:
33dBm
Spurious:
-60dBc
Harmonics:
-15dBc
Input VSWR:
2
Power Supply:
28V
Current:
0.5A
Operating Temperature:
-40~70˚C
Dimensions:
162*90*23mm
Weight:
0.8kg
Application:
Military Communication, Radar, Electronic Warfare
High Light:

Solid State high power rf amplifier

,

SMA Connectors high power rf amplifier

,

Customized high power rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD0.01/pc
Delivery Time
5-8 working days
Payment Terms
T/T, L/C
Product Description

Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication



The 0125-4000MHz 2W (33dBm) Microwave RF Power Amplifier is designed to amplify signals within the frequency range of 0125MHz to 4000MHz.

  1. Frequency Range:

    • This power amplifier covers a wide frequency range from 0125MHz to 4000MHz, making it suitable for various microwave applications.
  2. Power Output:

    • The amplifier provides an output power of 2 watts (W), which is equivalent to 33dBm. This moderate power output is suitable for a range of microwave signal amplification needs.
  3. Key Features:

    • Wide Frequency Coverage: Capable of amplifying signals across a broad spectrum from 0125MHz to 4000MHz, making it versatile for microwave communication and radar applications.
    • Moderate Power Output: Offers 2W of output power, suitable for applications requiring moderate signal amplification.
    • High Efficiency: Some models exhibit high energy conversion efficiency, reducing energy waste and heat generation.
  4. Applications:

    • Microwave Communication Systems: Used for signal amplification and transmission in microwave communication systems, such as point-to-point communication and satellite communication.
    • Radar Systems: Applied in radar systems for signal processing and amplification, enhancing radar performance in target detection and tracking.
    • Scientific Research: Utilized in laboratory settings for microwave experiments and research, including spectrum analysis and astronomy observations.
  5. Technical Characteristics:

    • High Linearity: Ensures accurate and stable signal amplification, suitable for various microwave signal processing.
    • Multiple Interfaces and Control Methods: Supports various interfaces and control methods for ease of integration and use.
    • High Reliability: Designed for stability and reliability, suitable for long-term operation and high-load environments.

In summary, the 0125-4000MHz 2W (33dBm) Microwave RF Power Amplifier is a versatile and moderate-power amplifier suitable for a wide range of microwave applications, characterized by its wide frequency coverage, moderate power output, and high reliability.

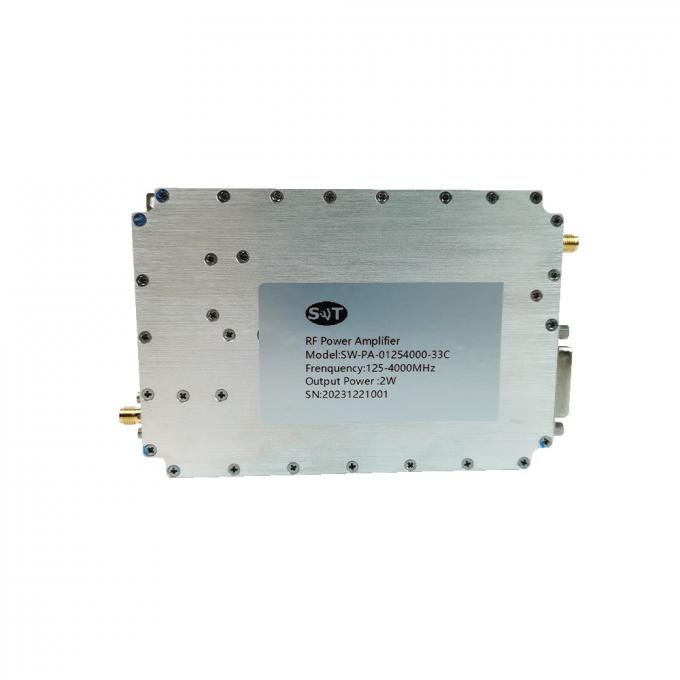

Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication 0

Customized Solid State High Power RF Amplifier 0125-4000MHz 2W 33dBm Microwave Amplifier for Military Communication 1

Parameter Min Typical Max Units
Frequency Range 125   4000 MHz
Input Power   0   dBm
Gain Flatness   ±2   dB
Psat Output Power   33   dBm
Spurious     -60 dBc
Harmonics   -15   dBc
Input VSWR   2   Ratio
Power Supply   28   Volt
Current   0.5   A





Parameter Min Typical Max Units
Max Input power       dBm
Operating Temperature -40   +70 ˚C
Non-operating Temperature -45   +85 ˚C
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

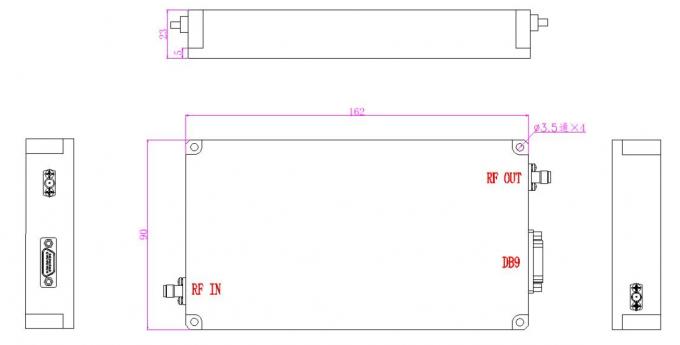

Parameter Value Limits Units
Dimensions 162*90*23   Milimeter
Weight 0.8   Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   ohms

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
