High power density 15-500 MHz Past 53 dBm 44V C Band RF High Frequency Power Amplifier

High power density 15-500 MHz Past 53 dBm C Band RF High Frequency Power Amplifier

Description

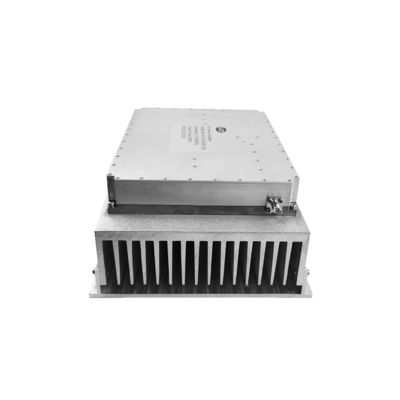

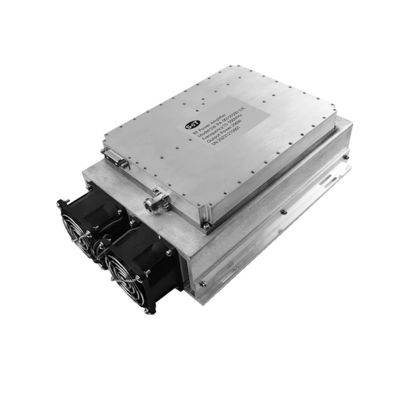

The 15-500 MHz Psat 53 dBm RF Power Amplifier is designed to amplify signals within the frequency range of 15 MHz to 500 MHz, offering a Psat (saturated output power) of 53 dBm.

1. Frequency Range:

   • This power amplifier is suitable for amplifying signals across the frequency range of 15 MHz to 500 MHz, covering a wideband spectrum.

2. Psat and Power Output:

   • The amplifier provides a Psat (saturated output power) of 53 dBm, which corresponds to approximately 200 watts (W) of power. This high power output makes it suitable for applications requiring strong signal amplification.

3. Key Features:

   • Wideband Design: Capable of amplifying signals across a broad frequency spectrum from 15 MHz to 500 MHz, making it versatile for various applications.
   • High Psat: The 53 dBm Psat level provides ample power for signal transmission and processing in RF communication and testing systems.
   • High Efficiency: Some models exhibit high energy conversion efficiency, reducing energy consumption and heat generation.

4. Applications:

   • RF Testing and Measurement: Used in RF testing equipment and spectrum analyzers for signal amplification and analysis in laboratory and field settings.
   • Communication Systems: Suitable for signal amplification in RF communication systems operating within the 15-500 MHz frequency range.
   • Military and Aerospace Applications: Applied in military and aerospace systems for signal amplification and transmission.

5. Technical Characteristics:

   • High Linearity: Ensures accurate and stable signal amplification, crucial for maintaining signal integrity in various RF applications.
   • Multiple Interfaces and Control Methods: Supports various interfaces and control methods for ease of integration and use.
   • High Reliability: Designed for stability and reliability, suitable for continuous operation in demanding environments.

In summary, the 15-500 MHz Psat 53 dBm RF Power Amplifier is a versatile and high-power amplifier suitable for a wide range of RF applications, characterized by its wideband capability, high Psat, and reliability in signal amplification.

Specification

Typical performance at +44VDC +25oC, and in a 50Ω system.

Outline Dimensional Drawing

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.

Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
