2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

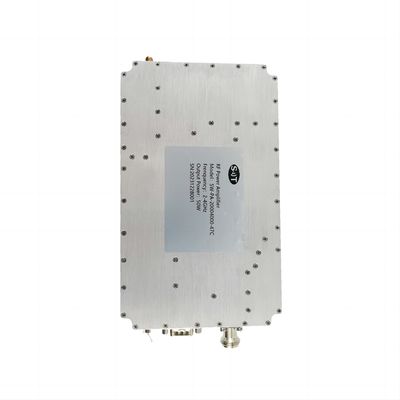

  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

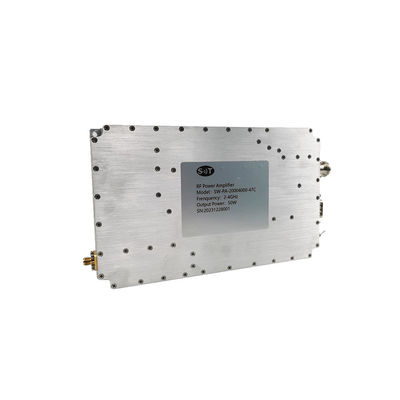

  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

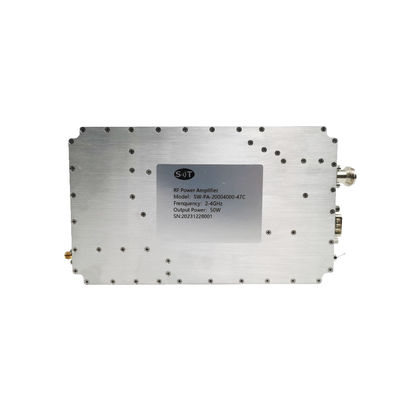

  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

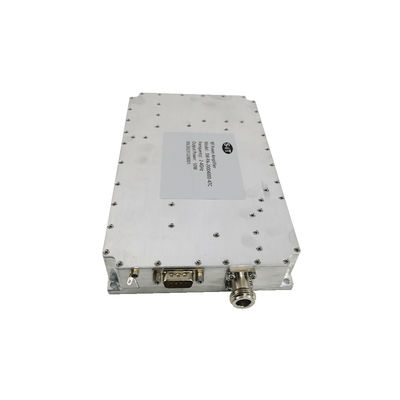

  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

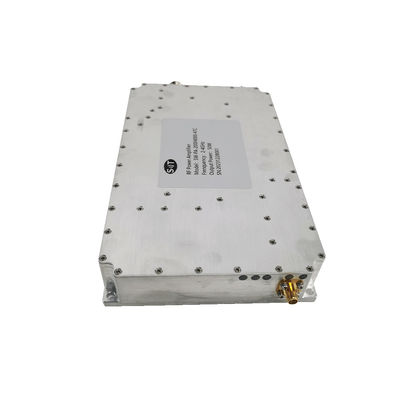

  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system
  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system
  • 2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system

Place of Origin China
Brand Name SWT
Model Number SW-PA-20004000-47C
Product Details
Frequency Range:
2000~4000MHz
Input Power:
0dBm
Gain Flatness:
±2dB
Psat Output Power:
47dBm
Spurious:
-60dBc
Harmonics:
-15dBc
Input VSWR:
2Ratio
Power Supply:
28V
Current:
0.5A
Operating Temperature:
-40~70˚C
Dimensions:
200*120*30mm
Application:
Military Communication, Radar, Electronic Warfare
High Light:

SW-PA-20004000-47C rf signal amplifier

,

Efficient rf signal amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD0.01/pc
Packaging Details
carton
Delivery Time
5-8 working days
Payment Terms
L/C, T/T
Product Description

2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system For Radar system



The 2000-4000MHz 47dBm S Band Power Amplifier is designed to amplify signals within the frequency range of 2000MHz to 4000MHz, specifically targeting the S band. Below are the detailed specifications and features of this power amplifier:

Frequency Range:
This power amplifier is suitable for amplifying signals across the frequency range of 2000MHz to 4000MHz, falling within the S band.
Power Output:
The amplifier features a power output of 47dBm, equivalent to 50 watts (W) of power. This high power output is suitable for applications requiring strong signal amplification.
Key Features:
High Power Output: Provides a power output of 47dBm, suitable for applications requiring high-power signal amplification.
S Band Design: Specifically designed for signal amplification in the S band, ensuring compatibility and performance within this frequency range.
High Linearity: Ensures accurate and stable signal amplification, suitable for demanding RF signal processing.
Applications:
Communication Systems: Used for signal amplification in S band communication systems such as point-to-point communication, microwave links, etc.
Test and Measurement Equipment: Utilized in RF test equipment and spectrum analyzers for signal amplification and processing in laboratory settings.
Military Applications: Applied in military radar and communication systems for signal amplification and processing.
Technical Characteristics:
High Efficiency: Some models exhibit high energy conversion efficiency, reducing energy waste and heat generation.
Multiple Interfaces and Control Methods: Supports various interfaces and control methods for ease of integration and use.
High Reliability: Designed for stability and reliability, suitable for long-term operation and high-load environments.
Overall, the 2000-4000MHz 47dBm S Band Power Amplifier is a high-power amplifier suitable for a wide range of applications in the S band, characterized by high power output, efficiency, and reliability, making it a critical component in many communication, test, and military systems.

Parameter Min Typical Max Units
Frequency Range 2000   4000 MHz
Input Power   0   dBm
Gain Flatness   ±2   dB
Psat Output Power   47   dBm
Spurious     -60 dBc
Harmonics   -15   dBc
Input VSWR   2   Ratio
Power Supply   28   Volt
Current   0.5   A



Parameter Min Typical Max Units
Max Input power       dBm
Operating Temperature -40   +70 ˚C
Non-operating Temperature -45   +85 ˚C
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone



Parameter Value Limits Units
Dimensions 200*120*30   Milimeter
Weight 1.5   Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   ohms

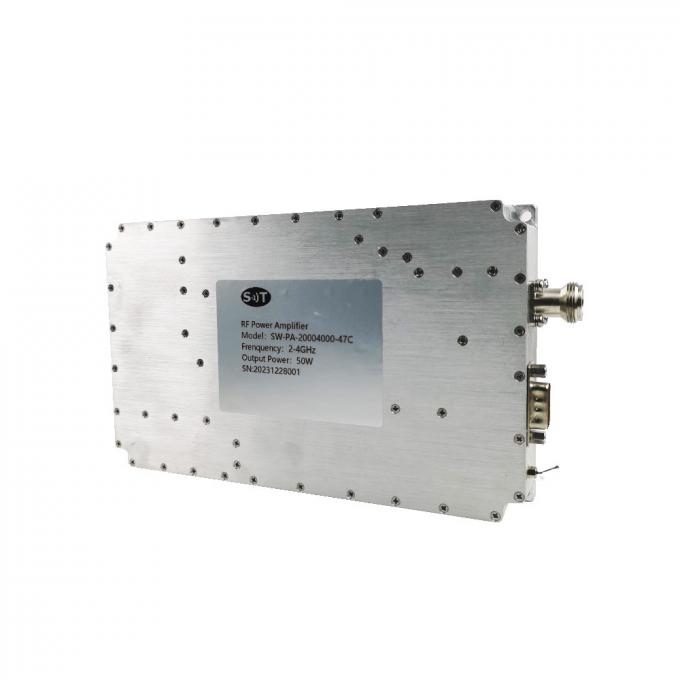

2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system 0


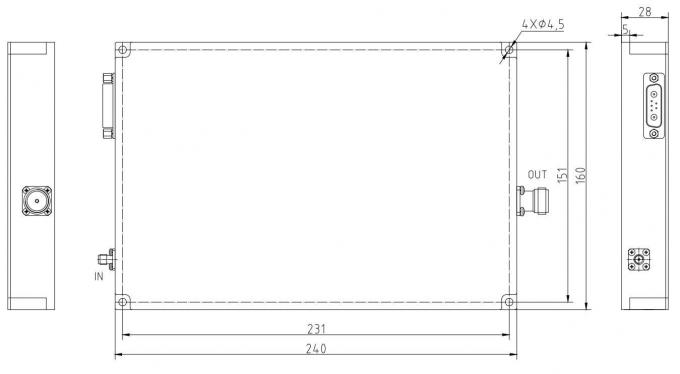

2000-4000MHz Linear Amplifier 47dBm S Band Power Amplifier For Radar system 1

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
