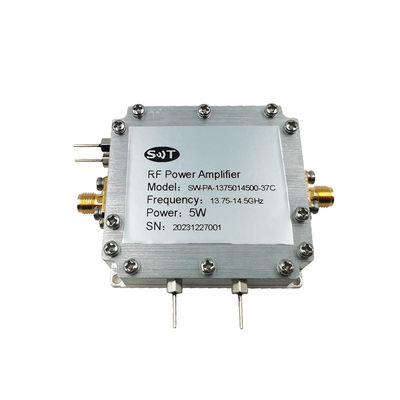

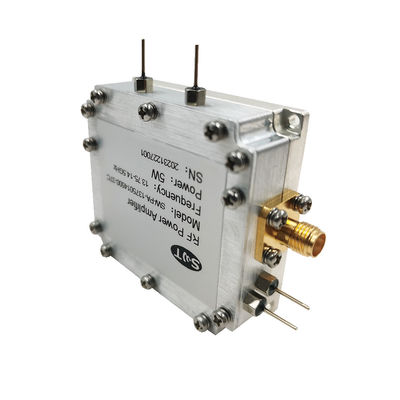

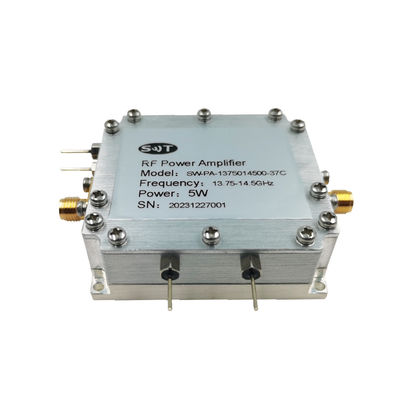

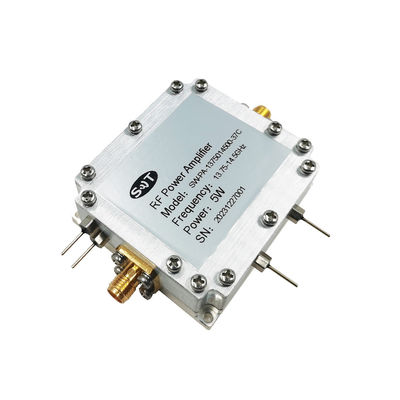

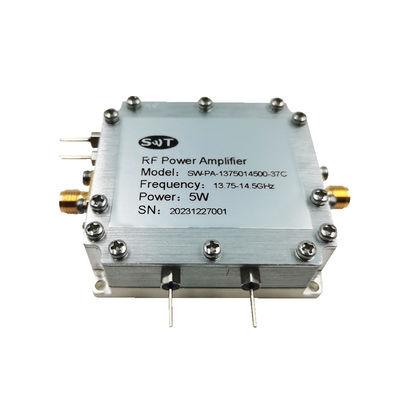

13.75-14.5GHz RF Amplifier Module Ku Band PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication
  • 13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication

13.75-14.5GHz RF Amplifier Module Ku Band PSat 50 dBm Microwave Amplifier For Military Communication

Place of Origin China
Brand Name SWT
Model Number SW-PA-1375014500-50C
Product Details
Frequency Range:
13.75-14.5GHz
PSat Power Output:
50dBm
Power Gain:
50dB
Power Gain Flatness:
±1
VSWR:
1.5
RF INPUT:
DBm
Harmonic Signals:
-30dBc
Operating Voltage:
24V
Currents:
32A
In-Out Impedance:
50Ω
Operating Temp. (Housing Temp.):
-20~55°C
Dimensions:
350*280*40mm
Application:
Military Communication, Radar, Electronic Warfare
High Light:

13.75-14.5GHz rf power amplifier module

,

Ku Band rf power amplifier module

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs/Month
Product Description

13.75-14.5GHz RF Amplifier Module Ku Band PSat 50 dBm Microwave Amplifier For Military Communication



Description

The 13.75-14.5GHz Ku Band PSat 50 dBm RF Power Amplifier is designed to amplify signals within the frequency range of 13.75GHz to 14.5GHz, specifically targeting the Ku band. Below are the detailed specifications and features of this power amplifier:

  1. Frequency Range:

    • This power amplifier is suitable for amplifying signals across the frequency range of 13.75GHz to 14.5GHz, falling within the Ku band.
  2. PSat and Power Output:

    • The amplifier is capable of providing a PSat (saturated output power) of 50 dBm, which corresponds to approximately 100 watts (W) of power. This high output power makes it suitable for applications requiring strong signal amplification.
  3. Key Features:

    • Ku Band Design: Specifically designed for Ku band signal amplification, ensuring compatibility and performance within this frequency range.
    • High PSat: The 50 dBm PSat level provides ample power for signal transmission and processing in Ku band communication and radar systems.
    • High Gain and Efficiency: Exhibits high gain and efficiency characteristics, optimizing signal amplification while minimizing energy consumption.
  4. Applications:

    • Satellite Communications: Used in Ku band satellite communication systems for signal amplification in ground stations and satellite uplinks.
    • Radar Systems: Applied in radar systems for signal amplification and processing, enhancing radar performance in target detection and tracking.
    • Microwave Links: Utilized in microwave links and point-to-point communication systems requiring high-power amplification in the Ku band.
  5. Technical Characteristics:

    • High Linearity: Ensures accurate and stable signal amplification, critical for maintaining signal integrity in communication and radar applications.
    • Wide Operating Temperature Range: Capable of operating within a wide temperature range, suitable for various environmental conditions.
    • Compact Design: Designed to be compact and efficient, facilitating integration into different RF systems and equipment.

In summary, the 13.75-14.5GHz Ku Band PSat 50 dBm RF Power Amplifier is a high-performance amplifier suitable for Ku band applications, offering high PSat, gain, and efficiency for reliable signal amplification in satellite communication, radar, and microwave link systems.



Specification



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 13750   14500 MHz
RF INPUT   0   dBm
P-sat Power Output   50   dBm
Power Gain   50   dB
Power Gain Flatness   ±1   dB
Harmonic Signals   -30   dBc
Input VSWR   1.5 2
Operating Voltage   24   VDC
Currents   32   A
In-Out impedance   50



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H)
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector

D-SUB 7W2

--
Cooling Consider heat dissipation with the system --
Mounting

φ3-8 Thru Hole

--
Weight ≤10 kg
ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:

D-SUB 7W2

TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-2 +VDC +24V
3 GND Ground
4 NC NC
5 Amp Enable Disable: TTL “Low”, Enable : TTL “High” (Low : 0~0.5V, High : 2.5~5V)
6-9 GND Ground

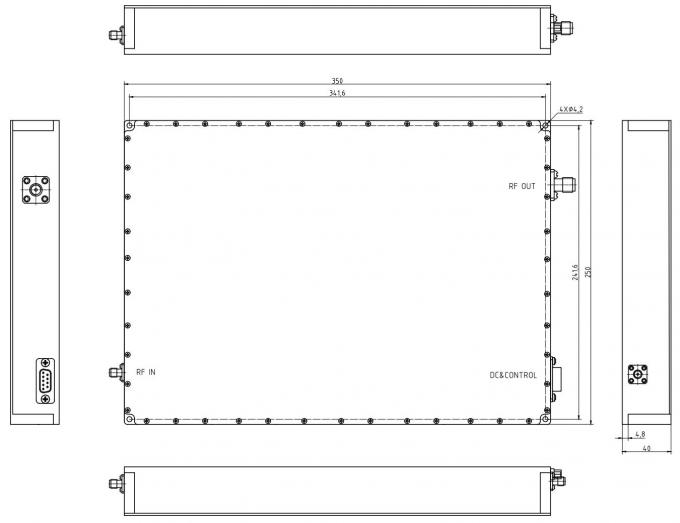

Outline Dimensional Drawing

13.75-14.5GHz RF Amplifier Module Ku Band  PSat 50 dBm Microwave Amplifier For Military Communication 0

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
