2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
  • 2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology

2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology

Place of Origin China
Brand Name SWT
Model Number SW-PA-200018000-47C
Product Details
Frequency Range:
2-18GHz
PSat Power Output:
50W
Power Gain:
47dB
Power Gain Flatness:
±3.5
VSWR:
2
Harmonic Signals:
-10dBc
Operating Voltage:
28V
In-Out Impedance:
50Ω
RF INPUT:
0dBm
Operating Temp.:
-40~85°C
Dimensions:
350*280*40mm
Application:
Military Communication, Radar, Electronic Warfare
High Light:

2-18GHz rf amplifier module

,

Ku Band rf amplifier module

,

PSat 50 W rf amplifier module

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs/Month
Product Description

2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology



Description

The 2-18GHz Ku Band RF Power Amplifier is designed to amplify signals within the frequency range of 2GHz to 18GHz, specifically targeting the Ku band.

  1. Frequency Range:

    • This power amplifier is suitable for amplifying signals across the frequency range of 2GHz to 18GHz, falling within the Ku band.
  2. Key Features:

    • Wideband Design: Capable of amplifying signals across a broad frequency spectrum from 2GHz to 18GHz, making it versatile for Ku band applications.
    • High Power Output: Offers high output power suitable for applications requiring strong signal intensity.
    • High Efficiency: Some models exhibit high energy conversion efficiency, reducing energy waste and heat generation.
  3. Applications:

    • Satellite Communications: Used for signal amplification and transmission in Ku band satellite communication systems.
    • RF Measurements: Applied in spectrum analyzers and other RF measurement equipment for signal amplification and processing.
    • Radar Systems: Utilized for signal processing and amplification in radar systems, enhancing radar performance.
  4. Technical Characteristics:

    • High Linearity: Ensures signal amplification accuracy and stability, suitable for demanding RF signal processing.
    • Multiple Interfaces and Control Methods: Supports various interfaces and control methods for ease of integration and use.
    • High Reliability: Designed for stability and reliability, suitable for long-term operation and high-load environments.
  5. Use Cases:

    • Satellite Ground Stations: Used for signal amplification and processing in satellite ground stations.
    • RF Testing: Applied in various RF testing equipment and laboratory setups for signal amplification and testing.
    • Communication Equipment: Suitable for signal amplification and transmission in Ku band communication equipment.

In summary, the 2-18GHz Ku Band RF Power Amplifier is a versatile device suitable for a wide range of Ku band RF applications, characterized by high power output, efficiency, and reliability. It is an essential component in many communication, radar, and measurement systems.



Specification



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2   18 GHz
RF INPUT   0   dBm
P-sat Power Output   50   W
Power Gain   47   dB
Power Gain Flatness   ±3.5   dB
Harmonic Signals   -10   dBc
Input VSWR   2 2.5
Operating Voltage   28   VDC
Currents       A
In-Out impedance   50



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) 350*300*90 mm
RF Connectors (Input / Output) SMA-KF / SMA-KF --
Control Connector D-SUB:Power on/power off control; Monitoring parameters include output power, temperature --
Cooling Exteral Heatsink Required --
Weight ≤8 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -40 +85 °C
Storage Temp. -40 +85 °C
Amplifier Safeguard Temp. +90 °C
Protections With over temperature protection, input over power protection, over voltage protection, over current protection



INPUT/OUTPUT panel Connector

AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 SMA-FK RF IN
X2 SMA-FK RF OUT
X6 D-SUB DC & Control interface





Connector Definition
AMPLIFIER CONNECTOR TYPE: D-SUB
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 VDD 28V
2 VDD 28V
3 GND GND
4 GND GND
5 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
6 Alarm Alarm (TTL)
7 Temp monitoring Temperature (Analog)
8 NC NC
9 NC NC

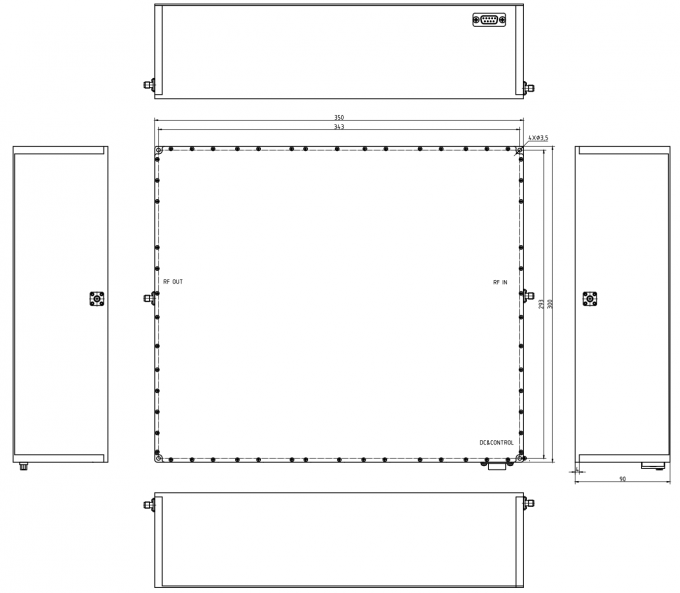

Outline Dimensional Drawing

2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology 0

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
