2-6GHz 50W 50Ω Silver S Band Amplifier Module RF Power Amplifier For Scientific Research

Place of Origin China
Brand Name SWT
Model Number SW-PA-20006000-47C
Product Details
Operating Frequency:
2000~6000MHz
Dimensions (L X W X H):
200x120x30mm
RF Connectors (Input / Output):
SMA- KFD/ SMA- KFD
DC / Control Connector:
DB15
P-sat Power Output:
47dBm
Power Gain:
47dB
Operating Voltage:
28VDC
In-Out Impedance:
50Ω
Current:
10A
Operating Temp. (Housing Temp.):
-49~+85°C
Application:
Communication,EMC Test,Electronic Warfare
High Light:

Silver S Band Amplifier Module

,

50Ω RF Power Amplifier

,

50W RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
2-6GHz 50W 50Ω silver S Band Amplifier Module RF Power Amplifier for Scientific Research



 Description



The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

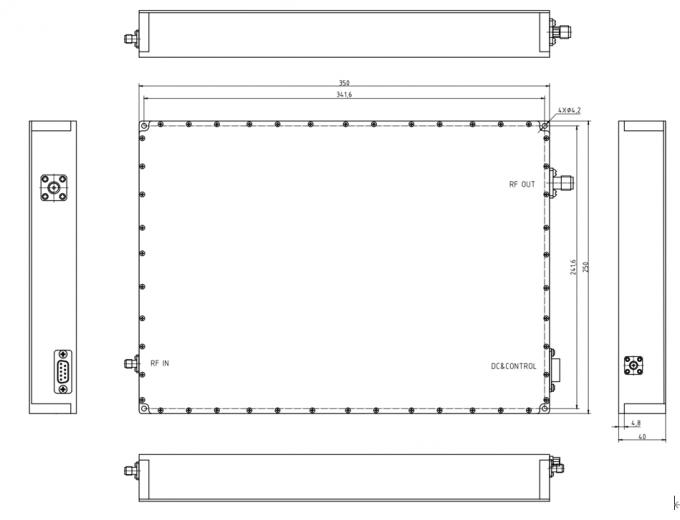

Outline Dimensional Drawing

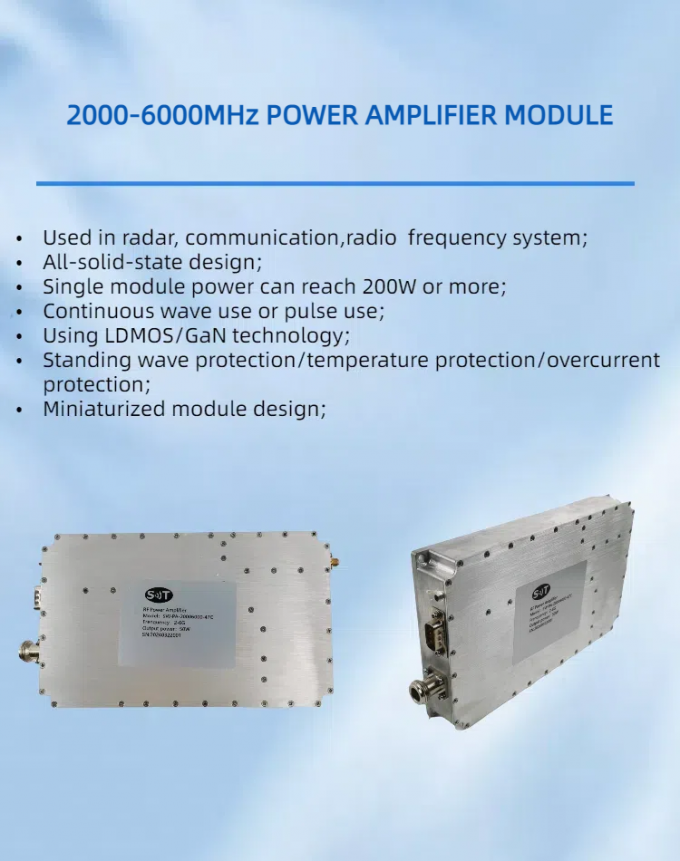

2-6GHz 50W 50Ω Silver S Band Amplifier Module RF Power Amplifier For Scientific Research 0



2-6GHz 50W 50Ω Silver S Band Amplifier Module RF Power Amplifier For Scientific Research 1

Specification

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2000   6000 MHz
RF INPUT   0 5 dBm
P-sat Power Output   47   dBm
Power Gain   47   dB
Power Gain Flatness   ±3   dB
Input VSWR     2
Operating Voltage   28   VDC
In-Out impedance   50   Ω
Current   9 10 A



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200x120x30 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB15 --
Cooling Consider heat dissipation with the system --
Mounting 3-6 Thru Hole --
Weight ≤1.5 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +85 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 90 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: --
PIN NUMBER LABEL DESCRIPTION
1-3 +VDC +28V
4-5 GND Ground
6 Amp Enable Disable: TTL "High", Enable : TTL "Low" or No Connection
(Low : 0~0.5V, High : 2.5~5V)
7 Temp Alarm Temp Alarm (TTL Hi= Normal , TTL Lo =Fault )
8 Reverse Power Alarm Reverse Power Alarm (TTL Hi= Normal , TTL Lo =Fault )
9 GND Ground
10 Output Power monitoring Output Power Detection (Output analog voltage)
11 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
12 Temp monitoring Temp monitoring (Output analog voltage)
13-15 NC NC
