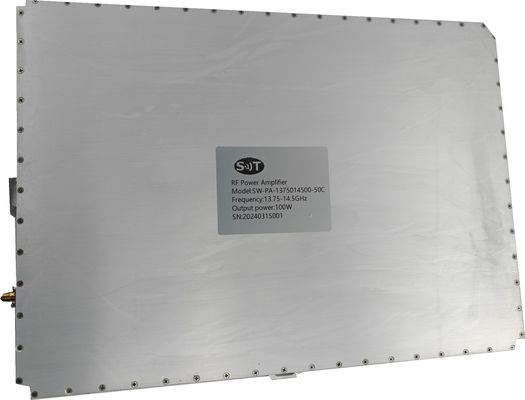

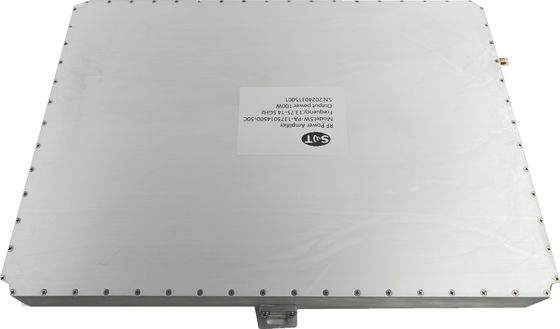

Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
  • Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier

Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-1375014500-50C
Product Details
Operating Frequency:
13.75-14.5GHz
Dimensions (L X W X H):
350*280*40mm
RF Connectors (Input / Output):
SMA- KFD/ N- KFD
DC / Control Connector:
D-SUB 7W2
P-sat Power Output:
50dBm
Power Gain:
50dB
Operating Voltage:
24VDC
In-Out Impedance:
50Ω
Current:
32A
Operating Temp. (Housing Temp.):
-20~+55°C
Application:
Communication,EMC Test,Electronic Warfare
High Light:

13.75-14.5GHz RF Power Amplifier

,

100W RF Power Amplifier

,

Professional Microwave Communication Module

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier for Microwave Communication



 Description



The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

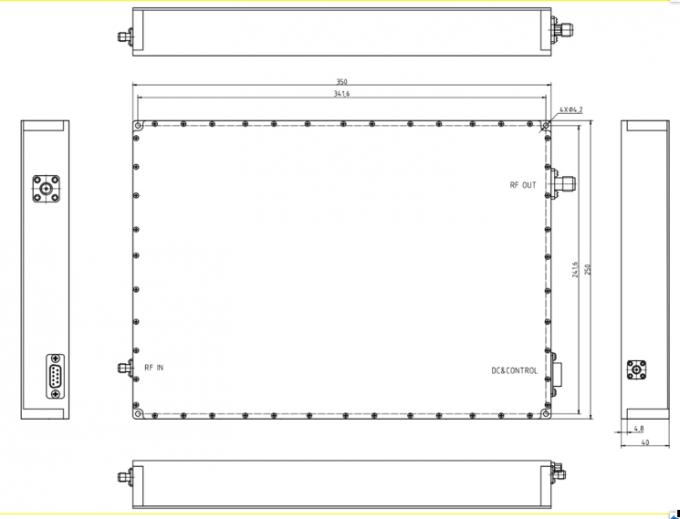

Outline Dimensional Drawing

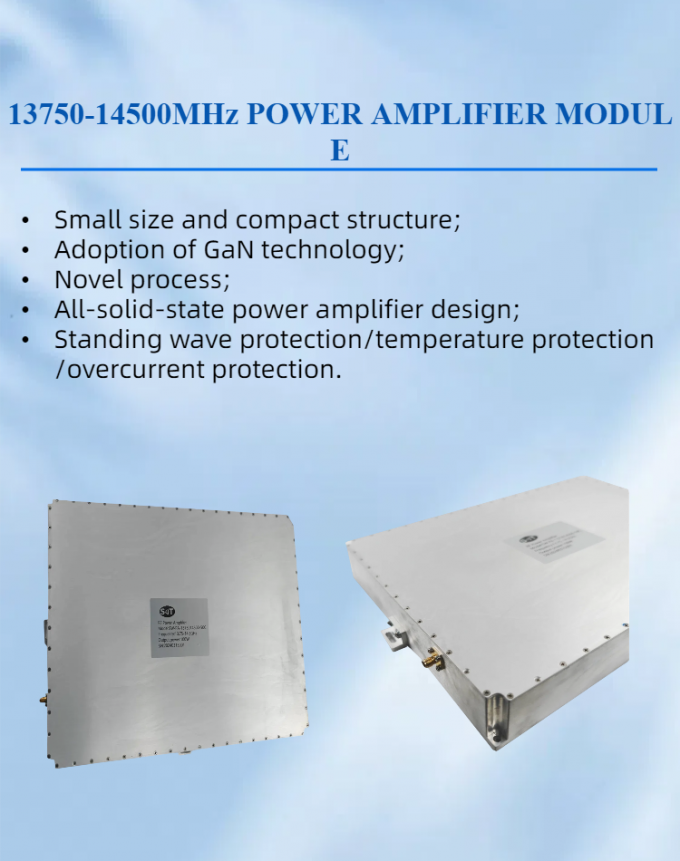

Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier 0

Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier 1

Specification



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 13750   14500 MHz
RF INPUT   0   dBm
P-sat Power Output   50   dBm
Power Gain   50   dB
Power Gain Flatness   ±1   dB
Harmonic Signals   -30   dBc
IM3@Two-tone Test,Po=41dBm (Single Carrier Level) Δ f=5MHz(IM3)   -25   dBc
Input VSWR   1.5 2
Operating Voltage   24   V DC
Currents   32   A
In-Out impedance   50   Ω



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 350*280*40 mm
RF Connectors (Input / Output) SMA- KFD/ N- KFD --
DC / Control Connector D-SUB 7W2 --
Cooling Consider heat dissipation with the system --
Mounting φ3-8 Thru Hole --
Weight ≤10 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: D-SUB 7W2
TRIAD CABLE PART NUMBER: --
PIN NUMBER LABEL DESCRIPTION
1-2 +VDC +24V
3 GND Ground
4 NC NC
5 Amp Enable Disable: TTL "Low", Enable : TTL "High" (Low : 0~0.5V, High : 2.5~5V)
6-9 GND Ground

Our Company



Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier 2

Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.

With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

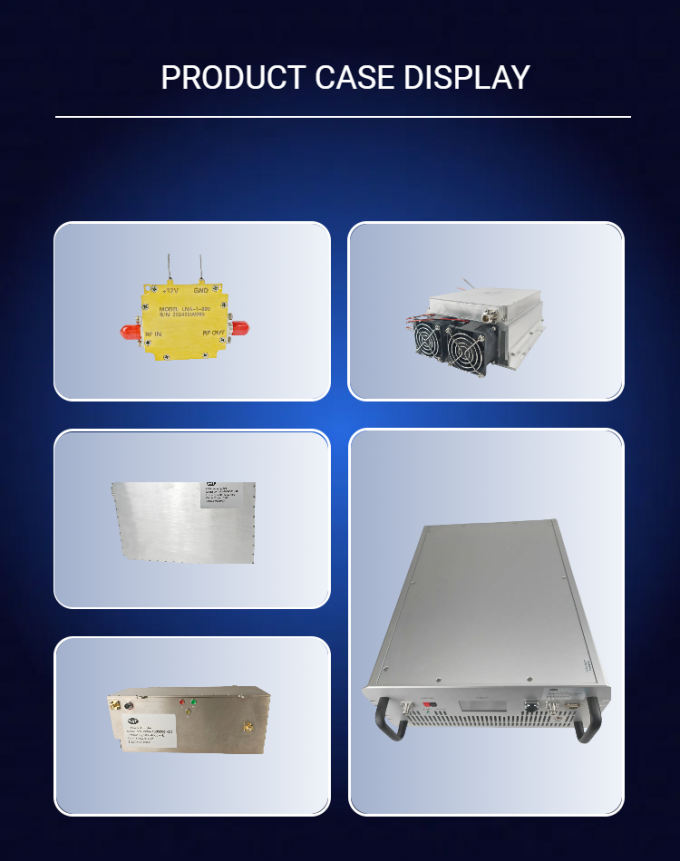

Our R&D



Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier 3

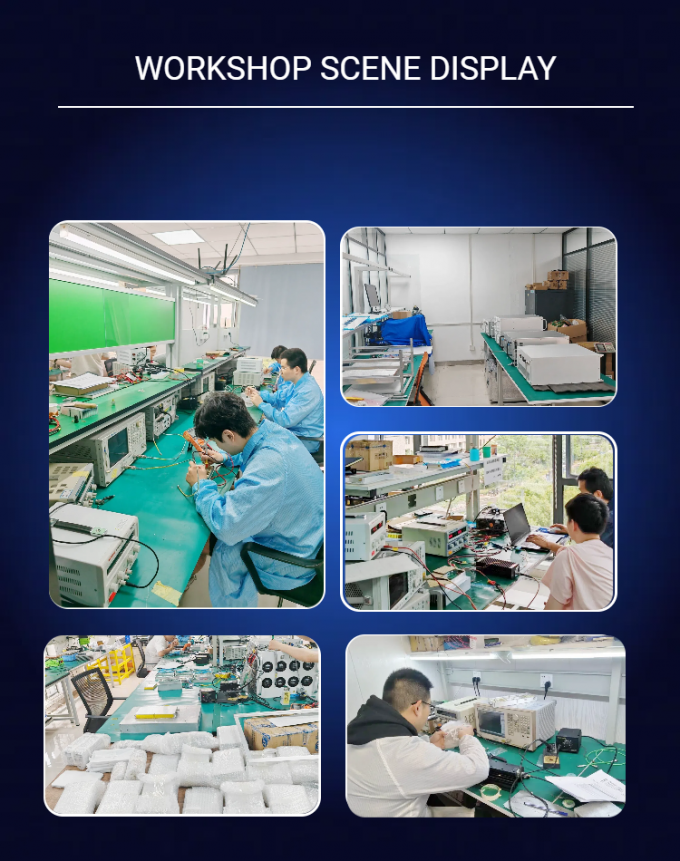

Showroom
