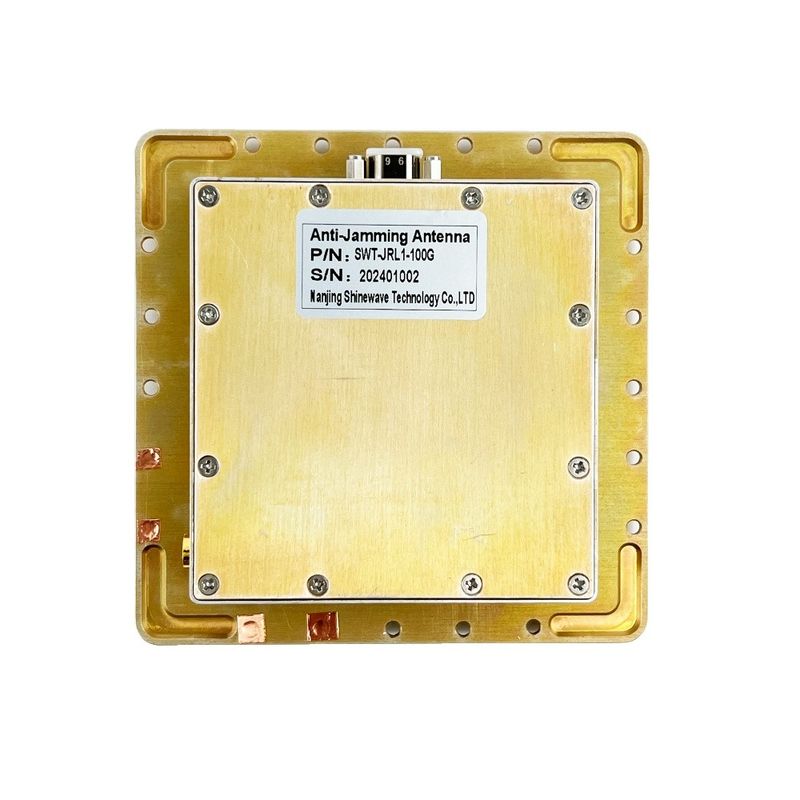

Bd3-B1, GPS-L1, Galileo E1 and Glonass G1 Anti-Jamming Antenna for Airborne, Vehicle-Borne
Application
Applicable to airborne, vehicle-mounted, shipborne, ground systems and other application platforms.
Main technical parameters
| Receiving signal |
BD3-B1 ,GPS L1 ,GALILEO
E1 GLONASS G1 |
Power supply(V) |
DC9V~DC36V |
Channels |
4channel B1L1E1, 1 channel GLONASS |
Power
consumption(W) |
≤14W |
Anti-interference
(ISR) |
Three broadband:60dB~ 70dB
Single broadband:70dB~ 80dB |
Weight(kg) |
≤0.2kg |
| Location precision |
Level≤10m ,Height≤10m |
Speed precision(1σ) |
≤0.2 m/s
≤0.2 m/s |
| Physical interface |
One J30J-9ZKP ,One MCX |
Dimension(mm) |
100mmx 100mmx22mm
The size of length and width without connectors ) |
Communication
interface |
1 serial port, TTL-3.3V |
Data form |
NMEA-0183 |
Working
temperature(ºC) |
-40~85 |
Storage
Temperature(ºC) |
-55~85 |
Physical interface
RF X2:MCX high frequency socket ,RF signal out for Outer Receiver(backup)
Power supply and serial portX1:J30J-9ZKP ,pins are defined in the following table1.
Table 1,Power supply and serial port definition
| Number |
Definition |
Remark |
| 1 ,4 |
Power positive pole |
DC9V ~ DC36V |
| 5 ,6 |
Power negative pole |
GND |
| 2 |
Serial port RXD |
3.3V TTL power level (elec.) |
| 3 |
Serial port TXD |
3.3V TTL power level (elec.) |
| 7 |
signal ground |
Signal GND |
| 8 ,9 |
Empty |
|
