Anti-Interference Antenna for Bd3-B1, GPS-L1, and Galileo E1 Frequency Navigation Signal

Place of Origin China
Brand Name SWT
Certification CE
Model Number SWT-JRL1- 100G
Product Details
Packing:
Standard Packing
Power Consumption:
≤14W
Data Form:
Nmea-0183
Working Temperature:
-40~85℃
Physical Interface:
One J30J-9ZKP,One MCX
Communication Interface:
1 Serial Port, Ttl-3.3V
Receiving Signal:
Bd3-B1 ,GPS L1 ,Galileo E1 ,Glonass G1
Applications:
Airborne, Vehicle-borne, Ship-borne, Ground Systems
High Light:

GPS-L1 Anti-Interference Antenna

,

E1 Anti-Interference Antenna

,

Navigation Signal Anti-Interference Antenna

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Anti-Interference Antenna for Bd3-B1, GPS-L1, and Galileo E1 Frequency Navigation Signal



Application

Applicable to airborne, vehicle-mounted, shipborne, ground systems and other application platforms.

Main technical parameters


Receiving signal BD3-B1 ,GPS L1 ,GALILEO
E1 GLONASS G1
Power supply(V) DC9V~DC36V


Channels
4channel B1L1E1, 1 channel GLONASS Power
consumption(W)

≤14W
Anti-interference
(ISR)
Three broadband:60dB~ 70dB
Single broadband:70dB~ 80dB
Weight(kg)
≤0.2kg
Location precision
Level≤10m ,Height≤10m
Speed precision(1σ) ≤0.2 m/s
≤0.2 m/s
Physical interface One J30J-9ZKP ,One MCX Dimension(mm) 100mmx 100mmx22mm
The size of length and width without connectors )
Communication
interface

1 serial port, TTL-3.3V

Data form

NMEA-0183
Working
temperature(ºC)

-40~85
Storage
Temperature(ºC)

-55~85



Physical interface


RF X2:MCX high frequency socket ,RF signal out for Outer Receiver(backup)
Power supply and serial portX1:J30J-9ZKP ,pins are defined in the following table1.

Table 1,Power supply and serial port definition



Number Definition Remark
1 ,4 Power positive pole DC9V ~ DC36V
5 ,6 Power negative pole GND
2 Serial port RXD 3.3V TTL power level (elec.)
3 Serial port TXD 3.3V TTL power level (elec.)
7 signal ground Signal GND
8 ,9 Empty


Anti-Interference Antenna for Bd3-B1, GPS-L1, and Galileo E1 Frequency Navigation Signal 0

Anti-Interference Antenna for Bd3-B1, GPS-L1, and Galileo E1 Frequency Navigation Signal 1

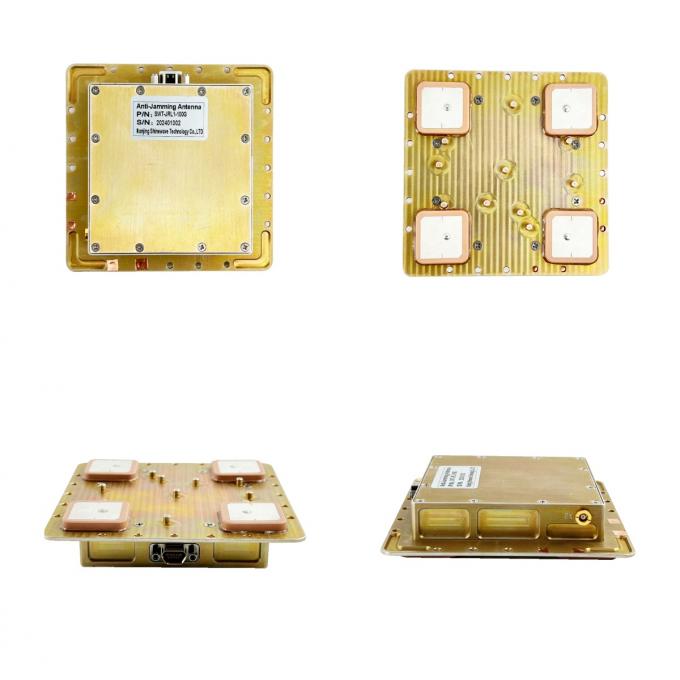

Anti-Interference Antenna for Bd3-B1, GPS-L1, and Galileo E1 Frequency Navigation Signal 2
