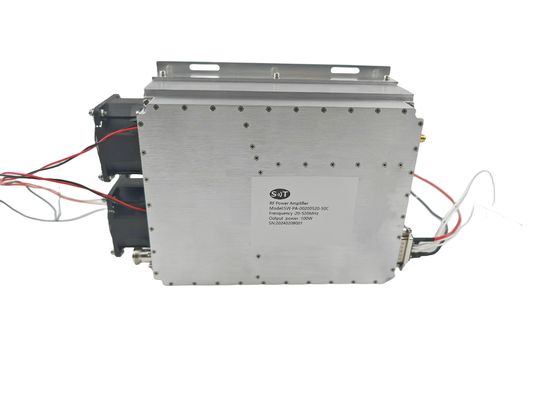

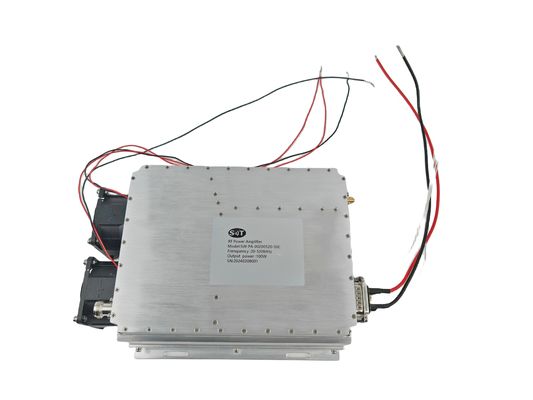

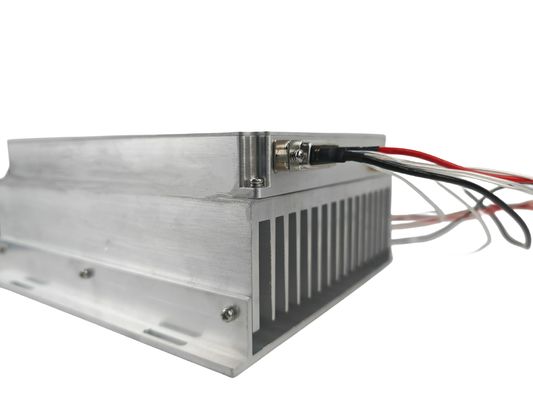

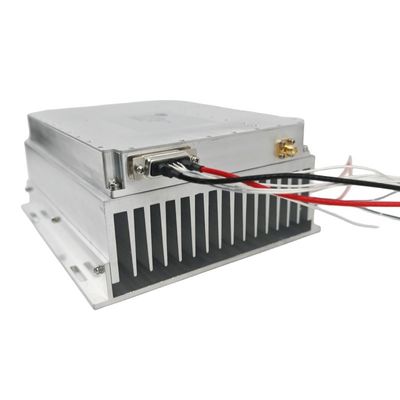

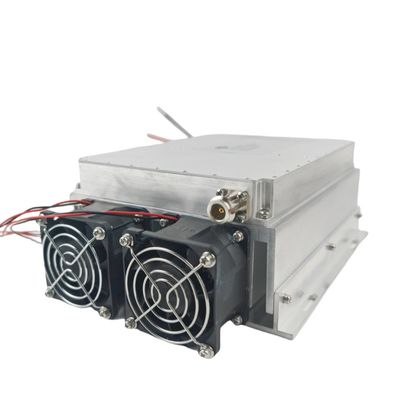

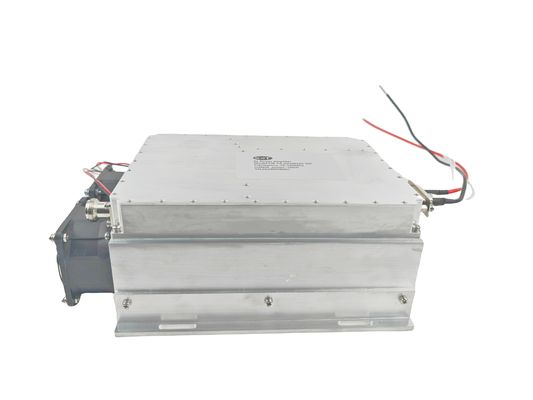

Customized 20~520MHz 100W 50dB RF Module Microwave Power Amplifier for radar, Communication

Place of Origin China
Brand Name SWT
Model Number 20~520MHz
Product Details
Name:
RF Power Amplifier
Operating Frequency:
20~520MHz
Gain:
50dB
Power Gain Flatness:
±2.5dBm
Operating Voltage:
28VDC
P-sat Power Output:
50dBm
RF Connectors (Input / Output):
SMA- Kfd/ N-Type Female
In-Out Impedance:
50Ω
Current:
14A
Operating Temp. (Housing Temp.):
-25~+55°C
Spurious Signals:
-55dBc
Harmonic  Signals:
-15dBc
Dimensions (L X W X H):
200 X 160 X 25mm
Application:
Communication,EMC Test,Electronic Warfare
High Light:

20~520MHz Microwave Power Amplifier

,

50dB Microwave Power Amplifier

,

100W Microwave Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized 20~520MHz 100W 50dB RF Module Microwave Power Amplifier for radar, Communication



 Description



The RF (Radio Frequency) Power Amplifier is an electronic device used to enhance the power of RF signals. It is primarily used in wireless communication, radar systems, satellite communication, broadcast television, medical equipment, and other fields. The amplifier can amplify low-power RF signals to sufficient levels to ensure signal integrity and prevent excessive attenuation during transmission.

RF power amplifiers typically use high-frequency electronic components such as transistors, power transistors (such as GaN, LDMOS, etc.), integrated circuits, etc., to amplify signals by increasing voltage or current. They have a wide operating frequency range, typically covering frequency bands from tens of kilohertz to several gigahertz, suitable for processing various RF signals.

In applications, RF power amplifiers play a crucial role in wireless communication systems, enhancing signal transmission distance, coverage range, and anti-interference capability. They also have significant applications in radar systems, broadcast television, satellite communication, and medical equipment.

Overall, RF power amplifiers are an indispensable component in modern wireless communication and electronic devices, providing reliable signal amplification solutions for various RF applications.

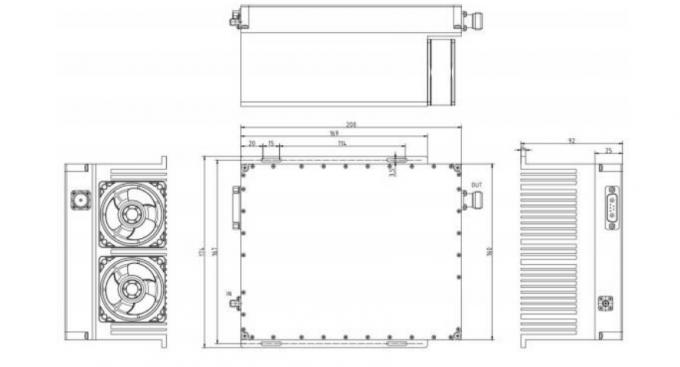

Outline Dimensional Drawing



Customized 20~520MHz 100W 50dB RF Module Microwave Power Amplifier for radar, Communication 0

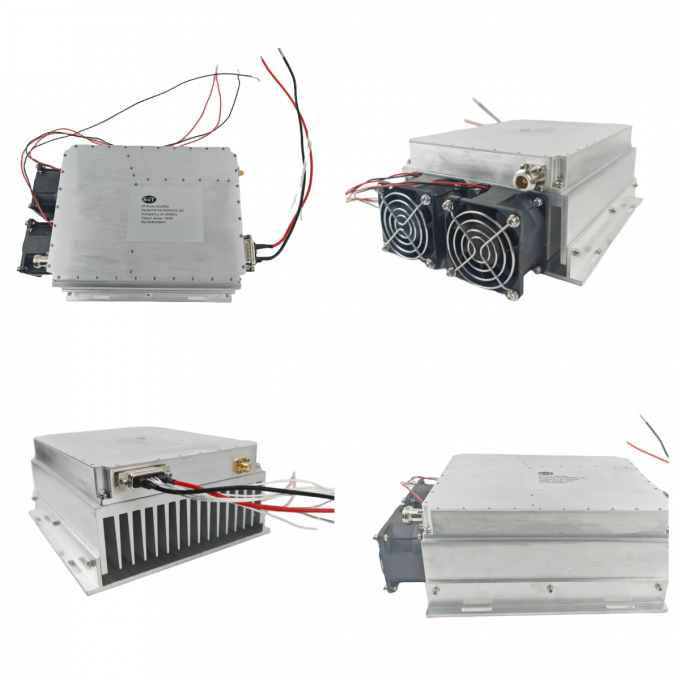

Customized 20~520MHz 100W 50dB RF Module Microwave Power Amplifier for radar, Communication 1

Specification

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 20   520 MHz
RF INPUT   0 5 dBm
Power Gain   50   dB
P-sat Output Power   50   dBm
Power Gain Flatness   ±2.5 ±3 dB
Gain Control range 1   30 dB
In/Out Impedance 50 Ω
Spurious Signals   -55   dBc
Harmonic Signals   - 15 - 10 dBc
Operating Voltage   28 36 V
Currents   14   A
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) 200* 160* 25 mm
RF Connectors (Input / Output) SMA- KFD/ N-Type Female --
DC / Control Connector D-SUB 7W2 --
Cooling Air cooled heat dissipation, size to be determined --
Mounting 3-4 Thru Hole
Weight ≤4 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: D-SUB 7W2
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-2 +VDC +28V
3 GND Ground
4 Temp Monitor Reference voltage : 750mV @ 25°C, Scale : 10mV/°C
5 Amp Enable TTL Lo or No Connection = Disable, TTL Hi = Enable
6
7 GND Ground
