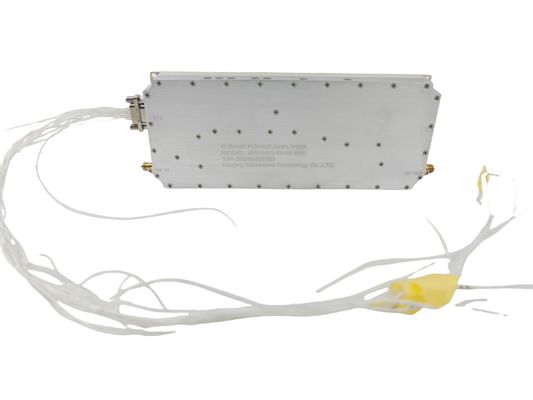

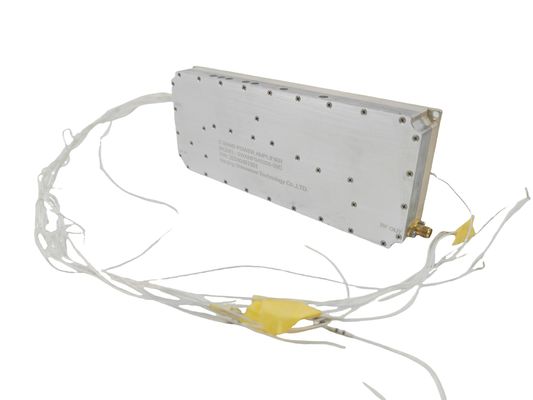

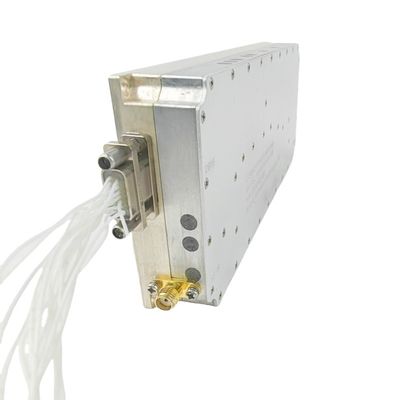

Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication

Place of Origin China
Brand Name SWT
Model Number SW-PA-45005000-50C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
4500~5000MHz
Gain:
59dB
Operating Voltage:
28VDC
RF Connectors (Input / Output):
SMA- KFD/ SMA- KFD
In-Out Impedance:
50Ω
Operating Temp. (Housing Temp.):
-40~+60°C
Dimensions (L X W X H):
180 X 90 X 22mm
Application:
Communication,EMC Test,Electronic Warfare
High Light:

4500-5000MHz Customized RF Power Amplifier

,

100W Customized RF Power Amplifier

,

Telecommunication Customized RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 5302/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication



 Description



The C Band 4500-5000MHz 100W RF Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the C Band frequency range, specifically from 4500 megahertz (MHz) to 5000MHz. Here's a detailed introduction to this RF power amplifier:

  1. Frequency Range: This power amplifier operates within the C Band frequency range, covering frequencies from 4500MHz to 5000MHz. The C Band is commonly used in satellite communications, radar systems, and other high-frequency RF applications.

  2. Power Output: The amplifier provides a power output of 100 watts, making it suitable for applications requiring high-power RF signals within the C Band.

  3. Applications: The C Band 4500-5000MHz 100W RF Power Amplifier finds applications in satellite ground stations, radar systems, microwave links, point-to-point communications, and other C Band RF applications where high-power amplification is essential.

  4. Performance: This amplifier is designed to deliver high-performance amplification while maintaining signal integrity and reliability. It ensures that amplified signals retain their quality and accuracy within the C Band frequency range.

  5. Stability and Reliability: RF power amplifiers in the C Band are typically designed for stability and reliability, ensuring consistent performance in demanding environments.

  6. Versatility: Despite its specific frequency range and power output, this amplifier can be integrated into diverse RF systems and setups that require high-power amplification within the C Band.

In summary, the C Band 4500-5000MHz 100W RF Power Amplifier is tailored for amplifying RF signals within the C Band frequency range. Its high-power output and performance characteristics make it suitable for various C Band RF applications, including satellite communications and radar systems.

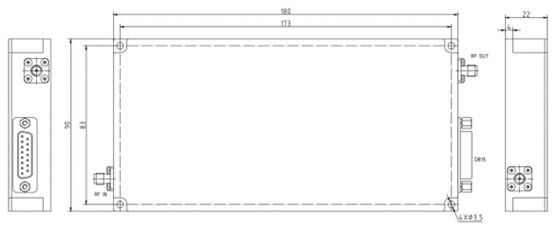

Outline Dimensional Drawing

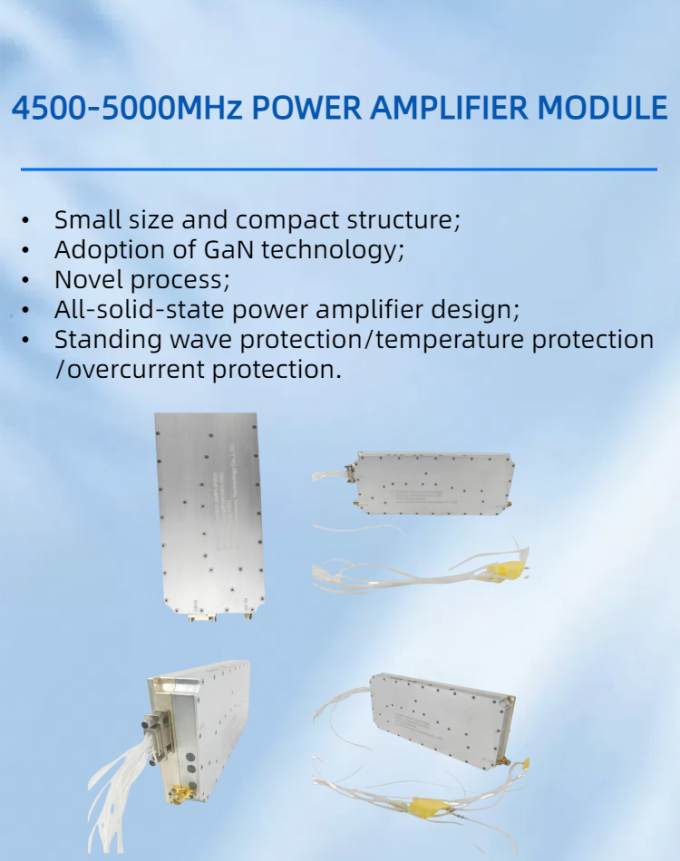

Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication 0



Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication 1

Specification



Typical performance at +28V DC +25oC, and in a 50Ω system.





RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 4.5   5 GHz
Input Power for Nominal Output   -15   dBm
RF Input Maximum (peak)   -5   dBm
Gain   59   dB
Output Power CW( peak RF input conditions at 4.75GHz)   50   dBm
Small Signal Gain Flatness   3   dB
P1dB 44     dBm
P3dB 48     dBm
PAPR     6 dB
ACPR(Harmonic Suppression)   -30   dbc
Input Return Loss   1.5:1 2.0:1
Output Return Loss   1.5:1 2.0:1
Noise Figure(+25℃)     7 db
PAE   30   %
Impedance   50   Ohm
Voltage   28   V



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 180 x 90 x 22 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC Connector DB15 --
Cooling Consider heat dissipation with the system (Not Supplied)
Mounting φ3.5-4 Thru Hole --
Weight ≤2 kg











ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +60 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 90 °C
TTL-level Enable Enable Input should be drivable from GPIO of external controller
Forward Power Status in DB15 connector
Reflected Power Status in DB15 connector
Input Current Status in DB15 connector
Device Temperature Status in DB15 connector





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 VDD +28Vdc IN
2 VDD +28Vdc IN
3 VDD +28Vdc IN
4 VDD +28Vdc IN
5 GND GROUND
6 GND GROUND
7 GND GROUND
8 GND GROUND
9 DGND DGND
10 NC NC
11 On/Off

Amplifier Enable:TTL“HIGH (Logic 1)

Amplifier Disable:TTL“LOW”(Logic 0)

12 Forward Power POWER DETECTOR (0-3.3V)
13 Reflected Power Reflected DETECTOR(0-3.3V)
14 Input Current Analog voltage relative to IDD@5A/V: IDD=0.14+5A*△V
15 Device Temperature

Analog voltage relative to module temperature

@10mv/℃:V=0.5+10mv*△℃





Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs

Our Company



Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication 2

Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.

With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.



Our R&D



Customized 4500-5000MHz 100W Low Noise High Power RF Power Amplifier for Telecommunication 3

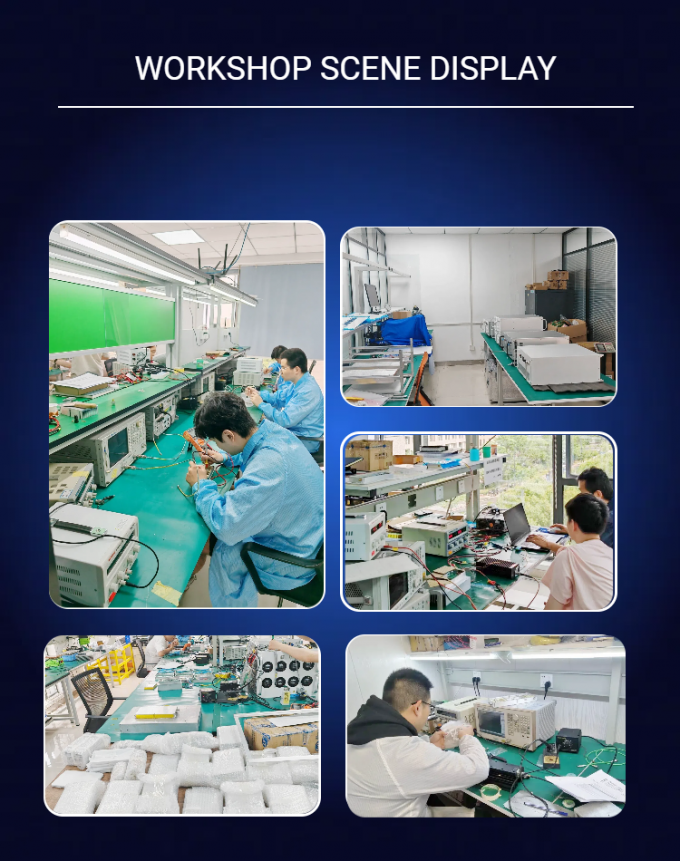

Showroom
