Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
  • Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier

Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-05002700-50C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
500~2700MHz
Gain:
50dB
Operating Voltage:
28VDC
RF Connectors (Input / Output):
SMA- KFD/ SMA- KFD
In-Out Impedance:
50Ω
P-sat Power Output:
50dBm
Power Gain  Flatness:
±2dB
Spurious Signals:
-50dBc
Harmonic  Signals:
-15dBc
Operating Temp. (Housing Temp.):
-25~+55°C
Dimensions (L X W X H):
250 X 160 X 25mm
Application:
Communication,EMC Test,Electronic Warfare
High Light:

50dB RF Power Amplifier

,

500-2700MHz RF Power Amplifier

,

Ultra-Wideband Communication Module

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 3580/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier



 Description



The 500-2700MHz ultra-wideband module covers a frequency range from 500MHz to 2700MHz, making it versatile for various communication and radar systems.

  1. Frequency Range: Covers 500MHz to 2700MHz, suitable for a wide range of communication and radar applications.
  2. Power Output: Typically offers adjustable power output to suit different requirements.
  3. Bandwidth: Features a large bandwidth, supporting complex signal processing and transmission needs.
  4. Modulation: Supports various modulation types such as AM, FM, PM, adapting to different signal processing requirements.
  5. Flexibility: Can be controlled and adjusted via software or hardware interfaces, enabling flexible system integration and management.
  6. Applications: Suitable for radar systems, communication base stations, radio spectrum monitoring, etc., meeting the demands of complex signal processing and transmission.
  7. Characteristics: May include low noise figure, high linearity, stable performance, ensuring excellent operation under various conditions.

This ultra-wideband module is a crucial component in communication and radar systems, providing high-performance signal processing and transmission capabilities for a wide range of complex applications.

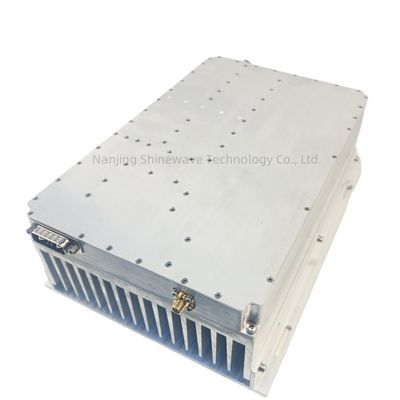

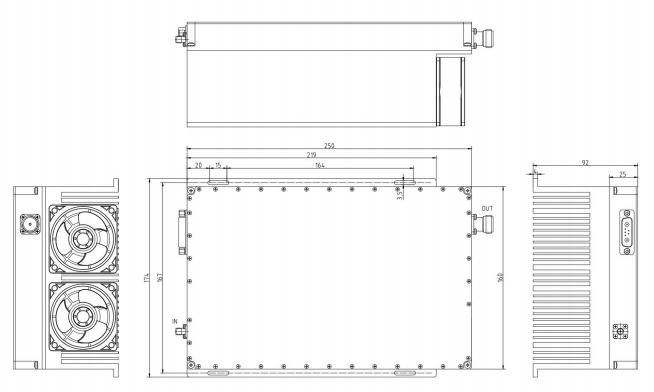

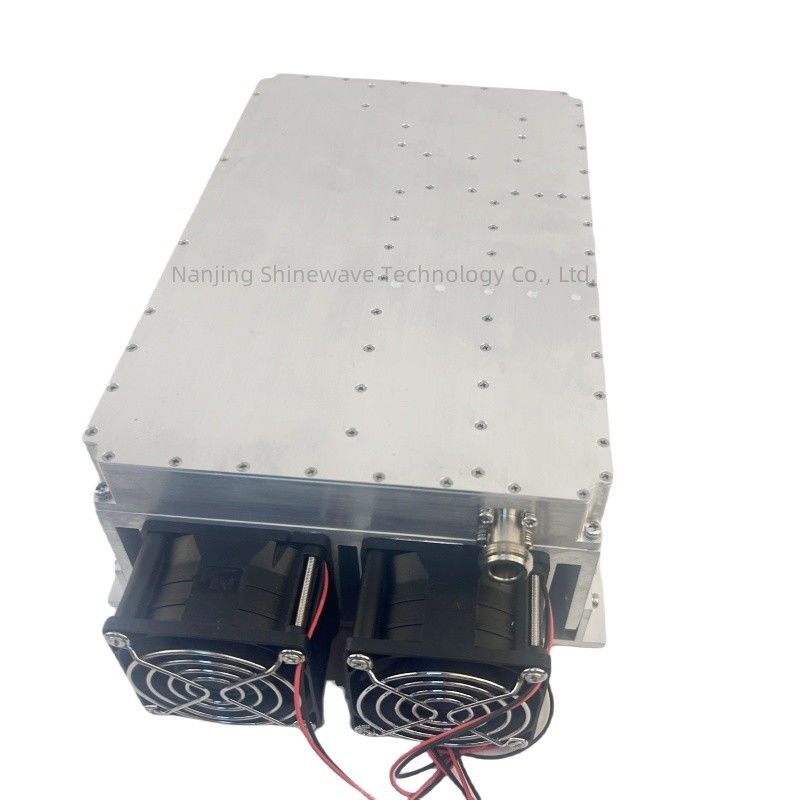

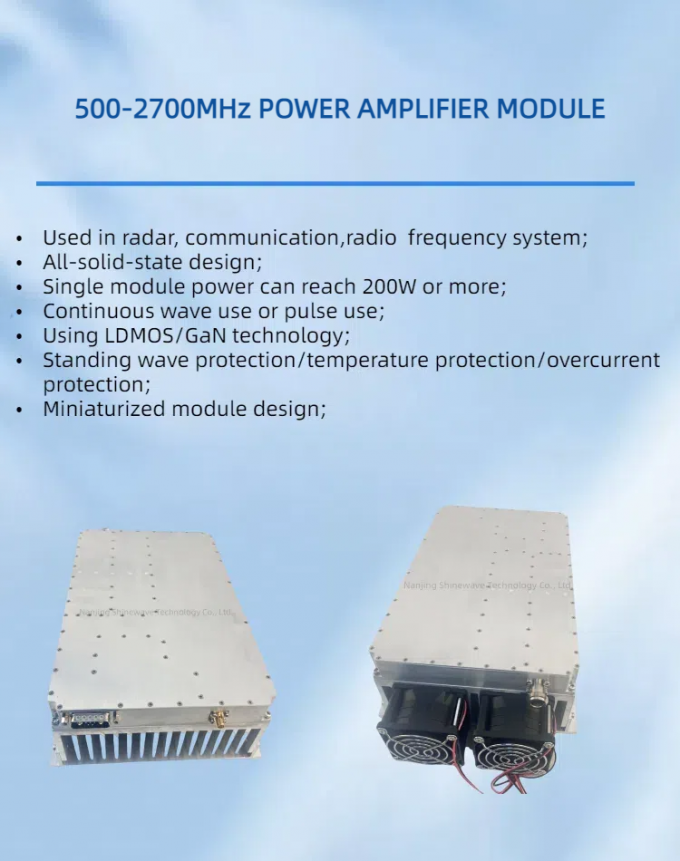

Outline Dimensional Drawing





Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier 0

Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier 1

Specification



Typical performance at +28V DC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 500   2700 MHz
RF INPUT   0   dBm
P-sat Power Output   50   dBm
Power Gain   50   dB
Power Gain Flatness   ±2 ±2.5 dB
In-Out impedance 50 Ω
Spurious Signals   -50   dBc
Harmonic Signals   -15 -10 dBc
Operating Voltage   28 36 V DC
Currents   15   A
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 250* 160* 25 mm
RF Connectors (Input / Output) SMA- KFD/ N-Type Female --
DC / Control Connector D-SUB 7W2 --
Cooling Air cooled heat dissipation, size to be determined --
Mounting 3-6 Thru Hole --
Weight ≤4 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -25 +55 °C
Humidity Range 0-90 %
PA Baseplate Shutoff Temperature + 80 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-2 +VDC +28V
3 GND Ground
4 Temp Monitor Reference voltage : 750mV @ 25°C, Scale : 10mV/°C
5 Amp Enable TTL Lo or No Connection = Disable, TTL Hi = Enable
6-7 GND Ground



Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs

Our Company



Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier 2

Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.

With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.



Our R&D



Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier 3

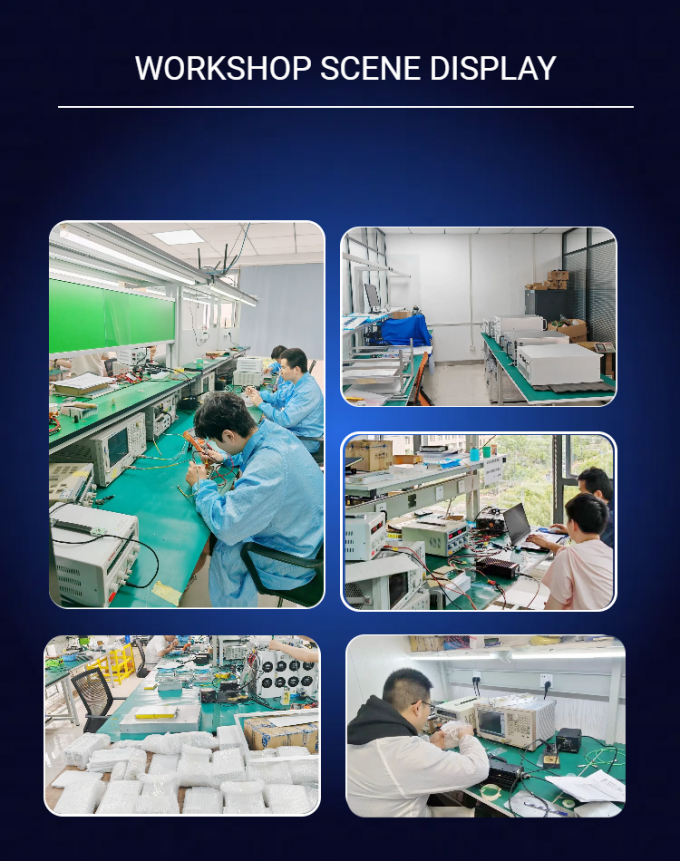

Showroom
