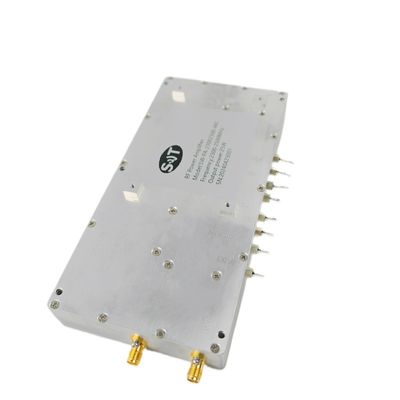

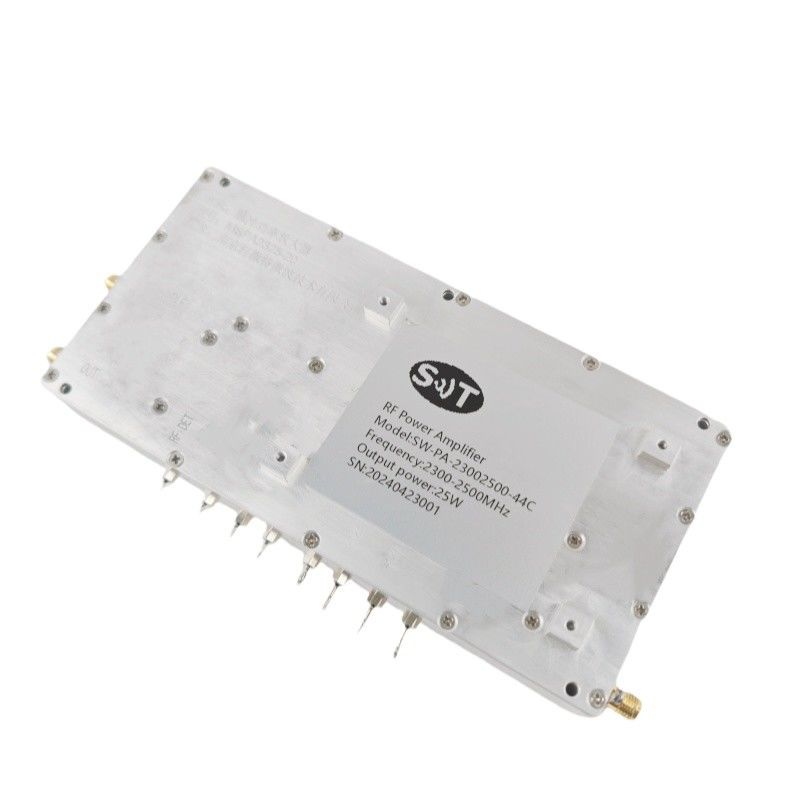

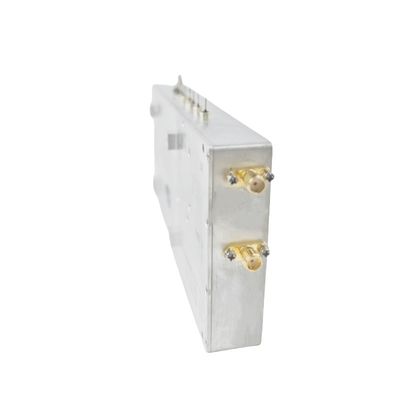

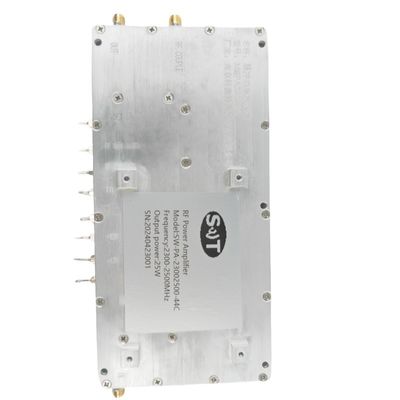

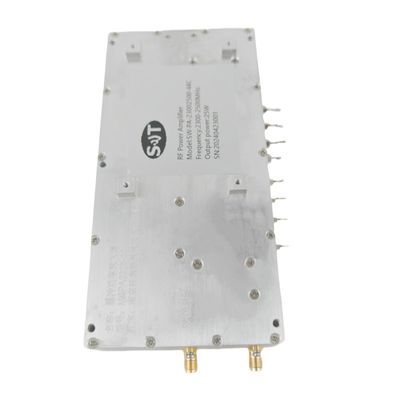

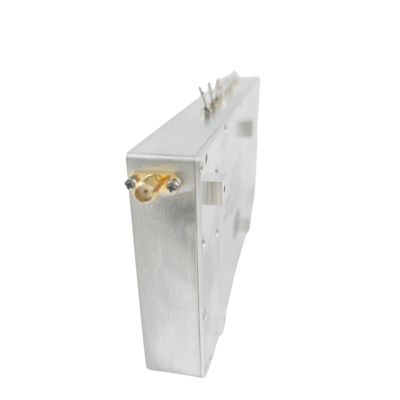

Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication
  • Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication

Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication

Place of Origin China
Brand Name SWT
Model Number SW-PA-23002500-44C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
2300~2500MHz
Operating Voltage:
12VDC
Spurious Signals:
≤-55dBc
Harmonic  Signals:
≤-35dBc
Application:
Communication,EMC Test,Electronic Warfare
Input  VSWR:
≤2
High Light:

RF Power Solid State Amplifier

,

Military Communication Solid State Amplifier

,

2300-2500MHz Solid State Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)2209/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication



 Description



The 2300MHz-2550MHz AMPS (35W) S-band RF Power Amplifier is specifically designed for applications in the S-band frequency range. With a frequency range from 2300MHz to 2550MHz, it provides a power output of 35 watts, making it suitable for amplifying high-power RF signals. This amplifier finds wide application in S-band communication systems, including satellite communication, radar systems, and wireless communication.

Key Features:

  1. Wide Frequency Range: Covers the 2300MHz to 2550MHz S-band frequency range.
  2. High Power Output: Provides 35 watts of output power for applications requiring high-power signal amplification.
  3. Versatile Applications: Widely used in satellite communication, radar systems, and wireless communication.
  4. Stable and Reliable: Offers stable performance and reliable operation for long-term use.

The 2300MHz-2550MHz AMPS (35W) S-band RF Power Amplifier plays a crucial role in S-band communication systems, delivering efficient and reliable signal amplification for various applications.



Outline Dimensional Drawing



Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication 0





Specification

SPECIFICATIONS @ +12VDC, 25°C, 50 Ω System

Parameter Symbol Min Typ Max Unit
Operating Frequency BW 2300   2550 MHz
Module Output peak Power Pout   35   W
Input Power for Nominal Output Pin 8   13 dBm
Pulse width       200 us
Duty cycle     ≤10%
Rise time     ≤500   ns
Pulse waveform drop(25℃)     ≤0.5   dB
Input VSWR     ≤2
Harmonic Signals H   ≤-35   dBc
Spurious Signals Spur   ≤-55   dBc
Under IN alarm     ≤5   dBm
Under OUT alarm     ≤25   W
Operating Voltage VDD   +12,-5   Volt


































Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs

Customized S Band Solid State Amplifier 2300-2500MHz RF Power Amplifier for Military Communication 1
