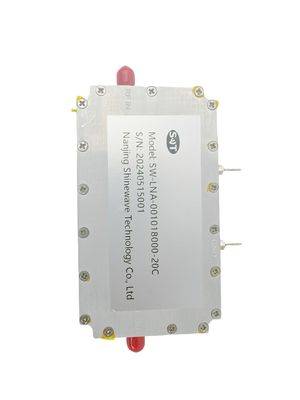

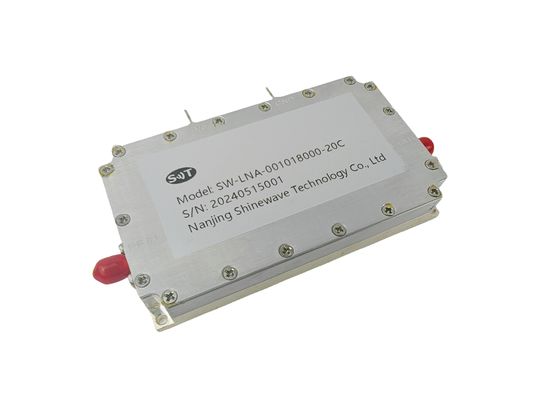

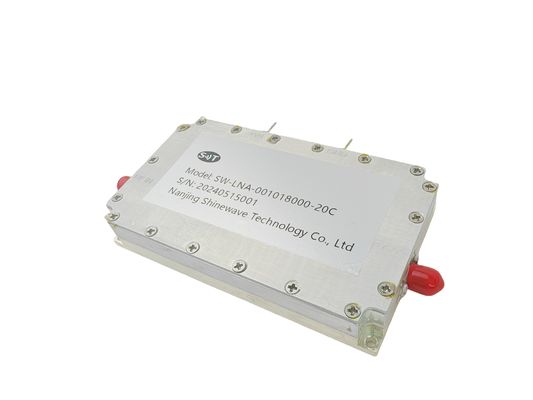

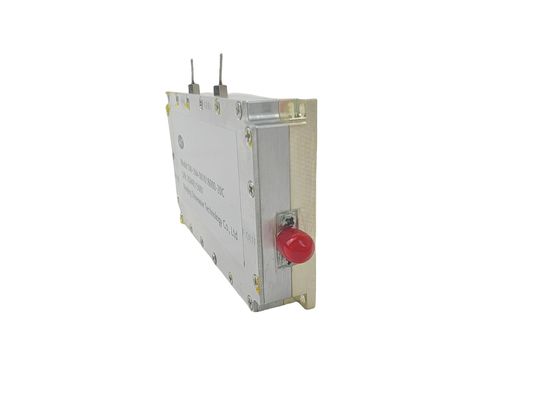

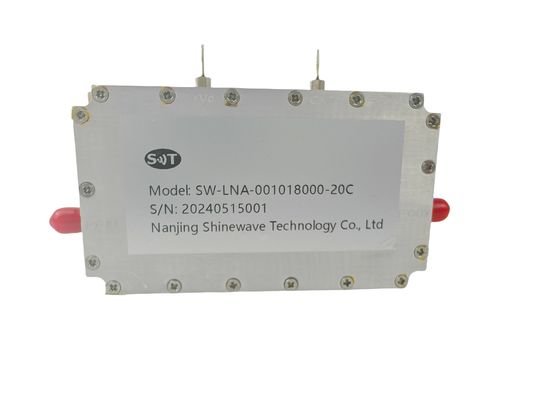

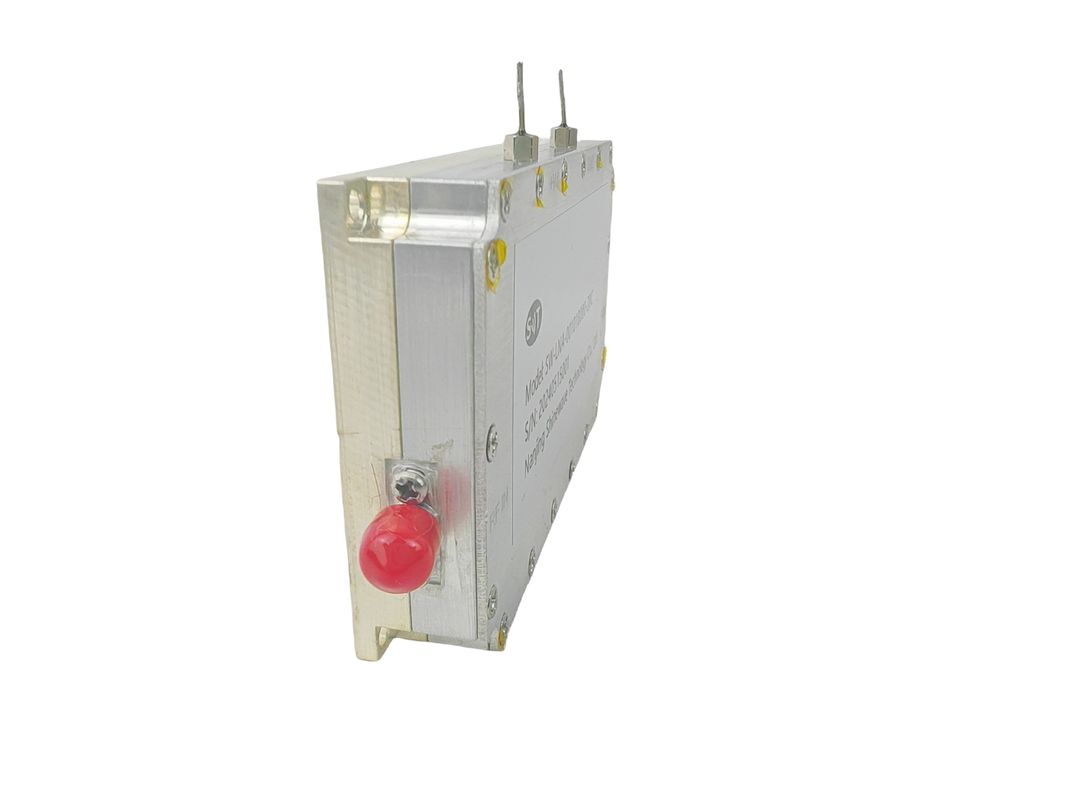

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-LNA-001018000-20C
Product Details
Frequency Range:
0.01~18GHz
DC Power Supply:
12~16V, 600mA
Gain:
80dB
Noise Figure:
5dBtyp@23℃
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm
Gain Variation:
±2dBp-p
VSWR Input:
2:1 Ratio
Output P1dB:
≥20dBm Typ
Working Temp:
-40℃~+80℃
Applications:
Radar, Electronic Warfare, Test And Measurement
Dimensions:
55*55*13mm
Packing:
Standard Packing
High Light:

Satellite Communication Links Low Noise Amplifier

,

18GHz Low Noise Amplifier

,

High Gain Low Noise Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 2400/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links



Product Description

The 0.01~18GHz 0.1W Low Noise Amplifier is a wideband amplifier featuring low noise and high gain characteristics, suitable for various RF and microwave applications. Here is the detailed introduction:

Main Features:

  1. Frequency Range: 0.01GHz (10MHz) to 18GHz
  2. Output Power: 0.1W (20dBm)
  3. Noise Figure: Designed with low noise for excellent signal amplification performance
  4. Gain: High gain to ensure consistent signal amplification across the entire frequency range

Design and Performance:

  • Wideband Operation: Covers a broad frequency range from 0.01 to 18GHz, suitable for multiple applications.
  • Low Noise: Optimized design to maintain an extremely low noise figure, maximizing signal quality and amplifier performance.
  • High Linearity: Ensures linear signal amplification at high output power, reducing distortion.
  • Compact Design: Small form factor for easy integration into various systems.
  • Stability: Good thermal stability and long-term reliability, adaptable to various environmental conditions.

Applications:

  • Communication Systems: Used for low noise amplification in signal reception and transmission, enhancing system performance.
  • Radar Systems: Improves the sensitivity and signal quality of radar receivers.
  • Test and Measurement: Used in RF and microwave test equipment for signal amplification.
  • Electronic Warfare: Applied in signal reception and processing in electronic warfare systems.
  • Satellite Communications: Enhances signal quality in satellite communication links.

Technical Specifications:

  • Input/Output Impedance: 50 ohms
  • Operating Temperature: -40°C to +85°C
  • Power Supply Voltage: 12V DC or other custom power options
  • Package: Standard SMA or custom interfaces for easy system integration

Performance Advantages:

  • Wide Frequency Coverage: Capable of covering a broad range of applications from low to high frequency.
  • Low Noise Characteristics: Ensures optimal performance in receiving weak signals.
  • High Gain: Provides consistent signal amplification, suitable for various high-demand applications.
  • Versatility: Suitable for commercial, military, and research applications in multiple fields.

Summary:

The 0.01~18GHz 0.1W Low Noise Amplifier is a high-performance wideband amplifier that, with its low noise, high gain, and wide frequency coverage, is suitable for various RF and microwave applications. Whether for communication systems, radar systems, or test and measurement equipment, this amplifier delivers stable and reliable signal amplification performance.

Working freq 0.01~18GHz
Noise figure 5dBtyp@23ºC
Gain 80dB
Gain variation ±2dBp-p
Input VSWR ≤2:1
Output P1dB ≥20dBm typ
Power supply DC 12~16V, 600mA
Connectors Input: SMA-Female, 50ohm;
Output: SMA-Female, 50ohm
Power supply: Feed thru capacitor
Working Temp -40ºC~+80ºC

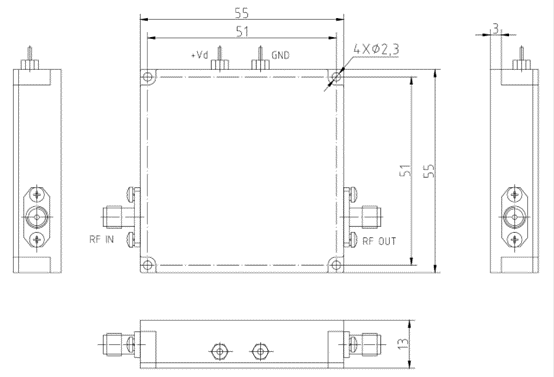

Dimensions 55mm*55mm*13mm(Preliminary)

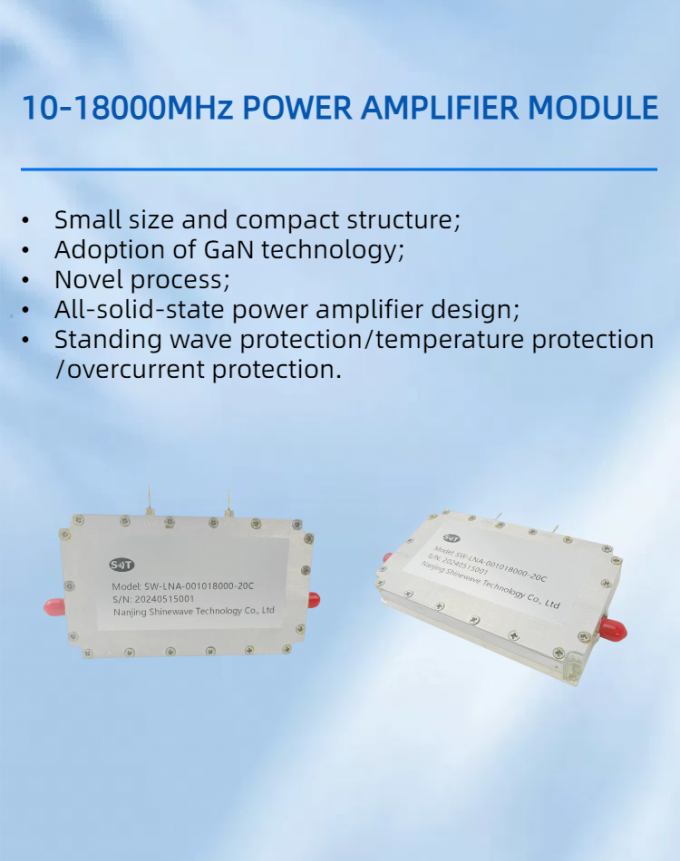

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 0

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 1

Our Company



Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 2

Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.

With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.



Our R&D

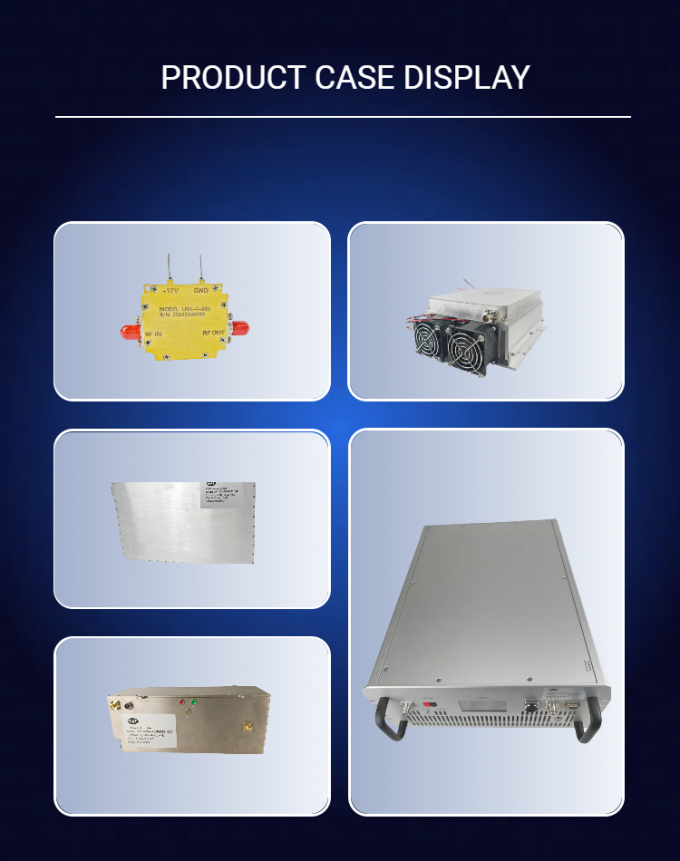

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 3



Showroom

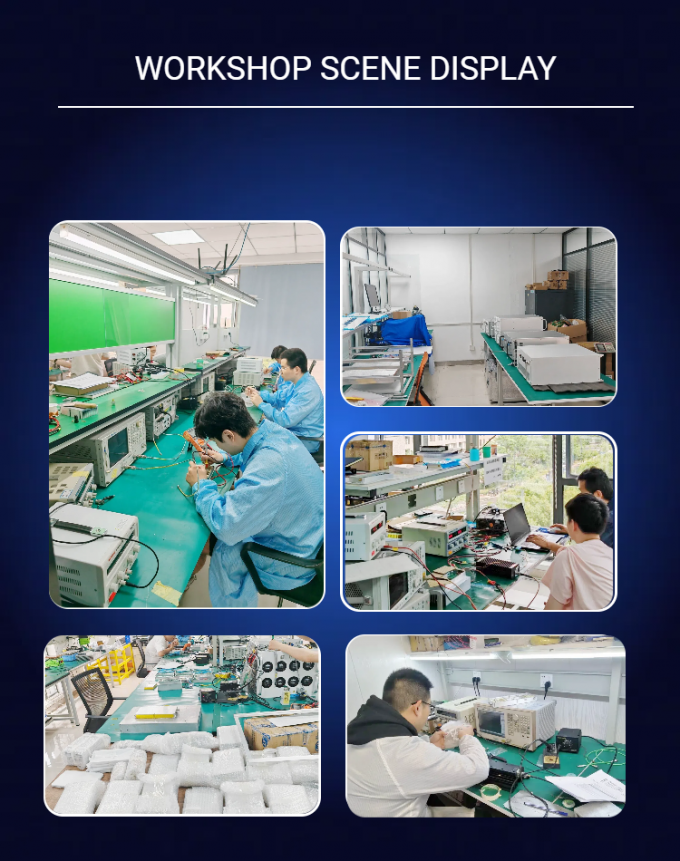

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 4



Participation in exhibitions



Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 5



Why choose us



Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.


TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service


PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions


PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use



Certifications

Low Noise and High Gain 0.01~18GHz Low Noise Amplifier for Enhances Signal Quality in Satellite Communication Links 6



FAQ



Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?



Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?

Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date



Sample 20 business days
≤50 pcs 60 business days
>50 pcs 90 business days
>200 pcs Negotiate





Q5: Delivery Date of the sample by DHL/FedEx



USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days
