0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems
  • 0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems

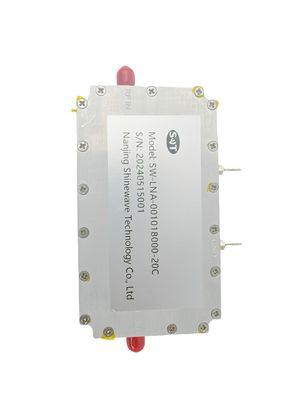

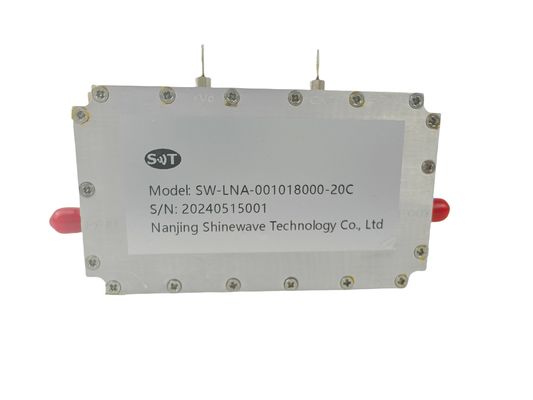

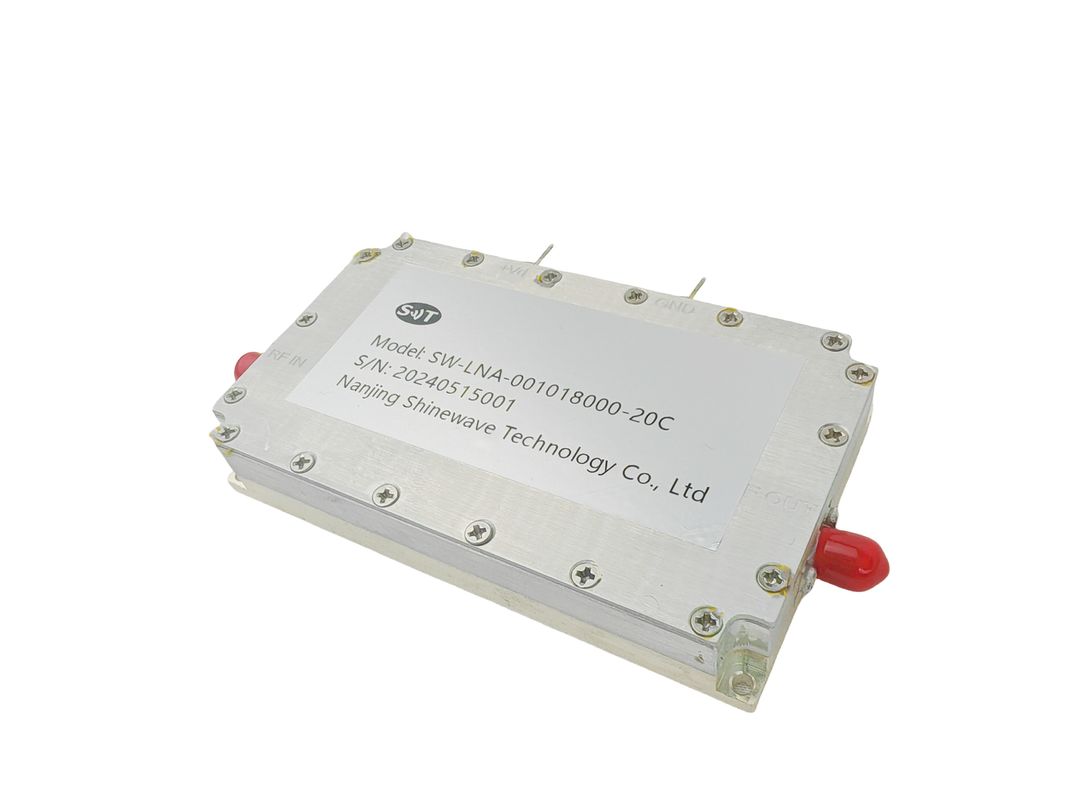

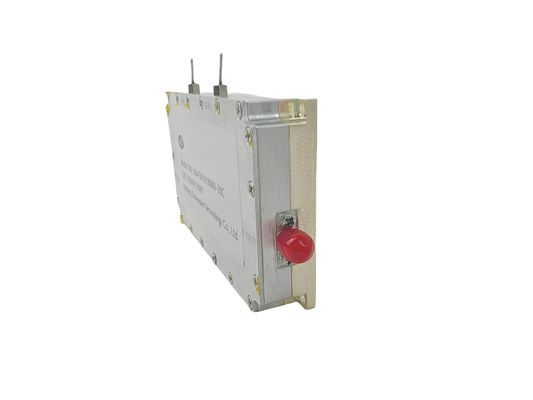

0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-LNA-001018000-20C
Product Details
Frequency Range:
0.01~18GHz
DC Power Supply:
12~16V, 600mA
Gain:
80dB
Noise Figure:
5dBtyp@23℃
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm
Gain Variation:
±2dBp-p
VSWR Input:
2:1 Ratio
Output P1dB:
≥20dBm Typ
Working Temp:
-40℃~+80℃
Applications:
Radar, Electronic Warfare, Test And Measurement
Dimensions:
55*55*13mm
Packing:
Standard Packing
High Light:

Low Noise Wideband Amplifier

,

18GHz Wideband Amplifier

,

80dB Wideband Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 2400/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems

0.01~18GHz 80dB High Gain Low Noise Wideband Amplifier for Signal Reception and Transmission in Communication Systems 0

Product Description

The 0.01~18GHz 0.1W Low Noise Amplifier is a wideband amplifier featuring low noise and high gain characteristics, suitable for various RF and microwave applications. Here is the detailed introduction:

Main Features:

  1. Frequency Range: 0.01GHz (10MHz) to 18GHz
  2. Output Power: 0.1W (20dBm)
  3. Noise Figure: Designed with low noise for excellent signal amplification performance
  4. Gain: High gain to ensure consistent signal amplification across the entire frequency range

Design and Performance:

  • Wideband Operation: Covers a broad frequency range from 0.01 to 18GHz, suitable for multiple applications.
  • Low Noise: Optimized design to maintain an extremely low noise figure, maximizing signal quality and amplifier performance.
  • High Linearity: Ensures linear signal amplification at high output power, reducing distortion.
  • Compact Design: Small form factor for easy integration into various systems.
  • Stability: Good thermal stability and long-term reliability, adaptable to various environmental conditions.

Applications:

  • Communication Systems: Used for low noise amplification in signal reception and transmission, enhancing system performance.
  • Radar Systems: Improves the sensitivity and signal quality of radar receivers.
  • Test and Measurement: Used in RF and microwave test equipment for signal amplification.
  • Electronic Warfare: Applied in signal reception and processing in electronic warfare systems.
  • Satellite Communications: Enhances signal quality in satellite communication links.

Technical Specifications:

  • Input/Output Impedance: 50 ohms
  • Operating Temperature: -40°C to +85°C
  • Power Supply Voltage: 12V DC or other custom power options
  • Package: Standard SMA or custom interfaces for easy system integration

Performance Advantages:

  • Wide Frequency Coverage: Capable of covering a broad range of applications from low to high frequency.
  • Low Noise Characteristics: Ensures optimal performance in receiving weak signals.
  • High Gain: Provides consistent signal amplification, suitable for various high-demand applications.
  • Versatility: Suitable for commercial, military, and research applications in multiple fields.

Summary:

The 0.01~18GHz 0.1W Low Noise Amplifier is a high-performance wideband amplifier that, with its low noise, high gain, and wide frequency coverage, is suitable for various RF and microwave applications. Whether for communication systems, radar systems, or test and measurement equipment, this amplifier delivers stable and reliable signal amplification performance.

Working freq 0.01~18GHz
Noise figure 5dBtyp@23ºC
Gain 80dB
Gain variation ±2dBp-p
Input VSWR ≤2:1
Output P1dB ≥20dBm typ
Power supply DC 12~16V, 600mA
Connectors Input: SMA-Female, 50ohm;
Output: SMA-Female, 50ohm
Power supply: Feed thru capacitor
Working Temp -40ºC~+80ºC
Dimensions 55mm*55mm*13mm(Preliminary)
