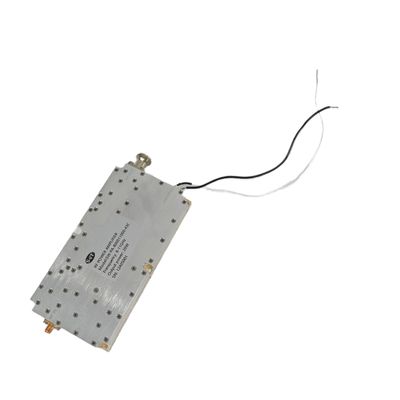

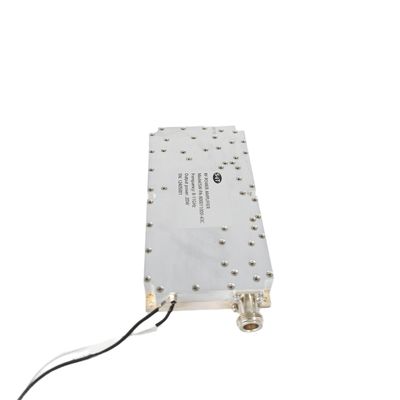

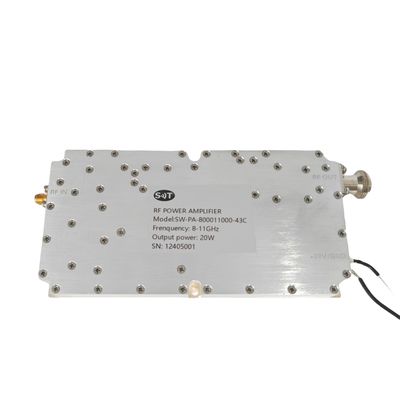

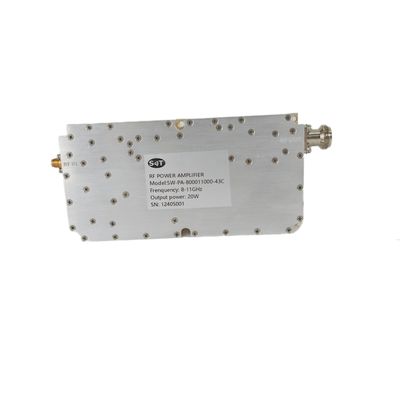

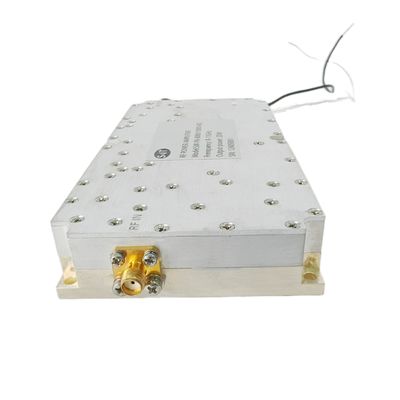

8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology
  • 8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology

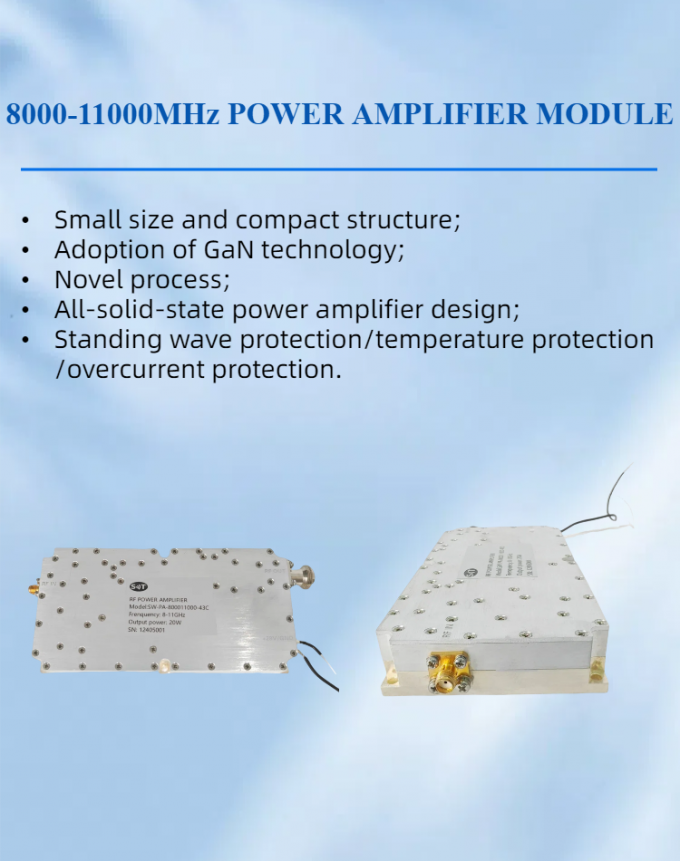

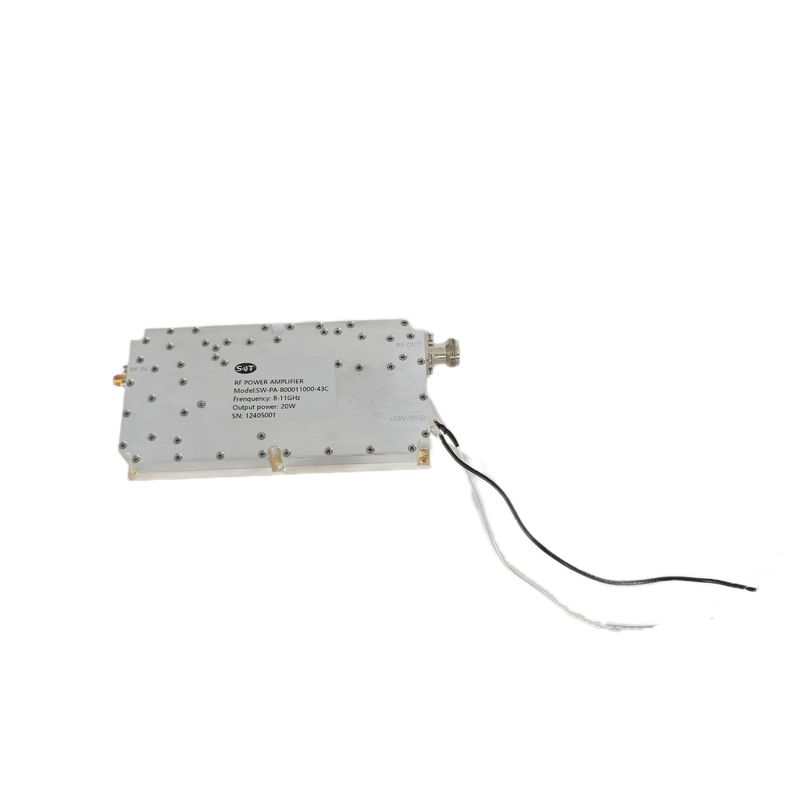

8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology

Place of Origin China
Brand Name SWT
Model Number SW-PA-800011000-43C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
8~11GHz
Operating Voltage:
24VDC
RF INPUT:
0dBm
P-sat Power Output:
43dBm
Input  VSWR:
2
Power Gain:
43dB
Power Gain Flatness:
±3dB
Current:
6A
Operating Temp.:
-40~85°C
Application:
Communication,EMC Test,Electronic Warfare
Dimensions (L X W x  H):
150 X 75 X 21.5mm
High Light:

8-11GHz RF Power Amplifier

,

Point-to-Point RF Power Amplifier

,

20W RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)4832/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology



 Description



The 8-11GHz 20W RF Power Amplifier is extensively used in radar systems, satellite communications, wireless communications, and electronic warfare. Operating within the microwave frequency range, which includes the X-band and part of the Ku-band, this amplifier is designed to deliver high power, efficiency, and linearity to meet the demands of various high-frequency applications.

Key Features

  1. Frequency Range: Covers the 8GHz to 11GHz frequency range.
  2. Power Output: Delivers a high power output of 20 watts, suitable for demanding applications.
  3. High Efficiency: Ensures high efficiency, reducing power consumption and heat generation.
  4. High Linearity: Provides low distortion and high signal integrity, crucial for communication and radar systems.
  5. Robust Design: Built with durable components and advanced thermal management, ensuring stable operation in various environments.

Application Areas

  1. Radar Systems:

    • Military Radar: Used for target detection and tracking, enhancing radar system detection range and resolution.
    • Weather Radar: Utilized in meteorological monitoring to detect and analyze precipitation, wind speed, and other weather phenomena.
    • Aviation Radar: Employed in air traffic control and flight safety to provide high-precision target detection and tracking.
  2. Satellite Communications:

    • Satellite Uplink and Downlink: Enhances signal amplification in satellite communication systems, ensuring stable and high-quality communication links.
    • Ground Station Communication: Improves the transmission and reception performance of signals in satellite ground stations.
  3. Wireless Communications:

    • Point-to-Point Microwave Communication: Used for long-distance, high-bandwidth point-to-point communication links, providing stable high data rate transmission.
    • Wireless Backhaul: Utilized in cellular networks and other wireless communication systems to connect base stations to the core network.
  4. Electronic Warfare:

    • Jamming and Countermeasures: Employed in military electronic warfare to generate jamming signals that disrupt enemy communications and radar systems.
    • Signal Intelligence: Used to intercept and analyze enemy signals, providing critical information to support military operations.
  5. Test and Measurement Equipment:

    • Signal Generators and Analyzers: Used in test equipment to generate and measure high-precision, high-frequency RF signals.
    • Laboratory and R&D: Supports signal amplification and processing in scientific research and technology development.

Technical Challenges

  1. Thermal Management: High-power amplifiers generate significant heat, requiring effective thermal management to prevent overheating and performance degradation.
  2. Power Management: Requires stable power management systems to ensure reliable operation under high power output conditions.
  3. Linearity and Efficiency Optimization: Balancing high linearity with efficiency is a key challenge in RF power amplifier design.
  4. Frequency Stability: Maintaining frequency stability at high frequencies to ensure reliable and consistent signal transmission.
  5. Broadband Matching: Ensuring good input and output matching across the 8-11GHz frequency range to maintain stable and efficient signal transmission.

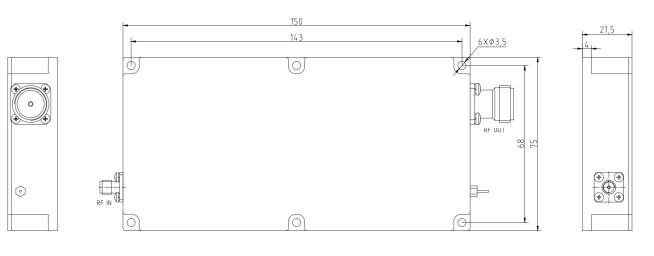

Outline Dimensional Drawing



8-11GHz 20W RF Power Amplifier for Point-to-Point Microwave Communication with GaN Technology 0

Specification

Typical performance at +28 VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 8000   11000 MHz
RF INPUT   0 5 dBm
P-sat Power Output   43   dBm
Power Gain   43   dB
Power Gain Flatness   ±3   dB
Input VSWR     2
Operating Voltage   28   VDC
In-Out impedance   50
Current   6 8 A



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 150 x 75 x 21.5 mm
RF Connectors (Input / Output) SMA- KFD/ N- KFD --
DC Connector Feed Capacitor --
Cooling Consider heat dissipation with the system --
Mounting φ3.5-6 Thru Hole --
Weight 2.5 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +85 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 90 °C



Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
