High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research
  • High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research

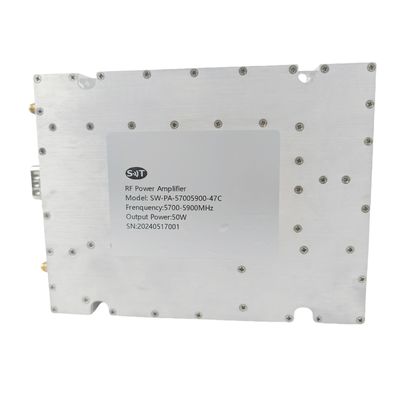

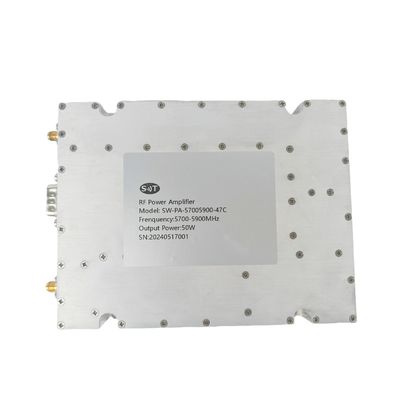

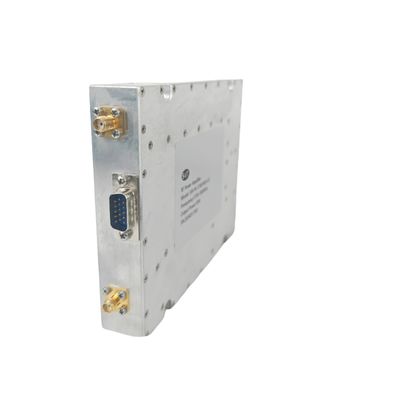

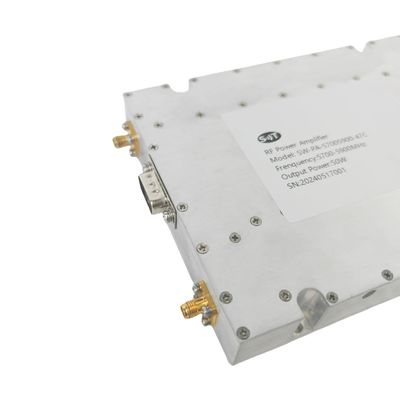

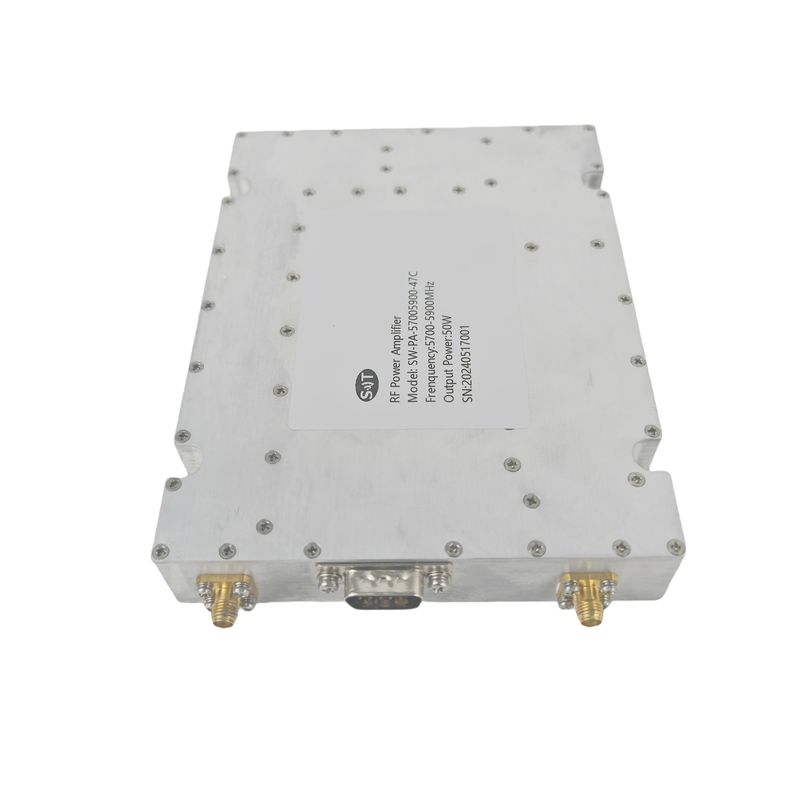

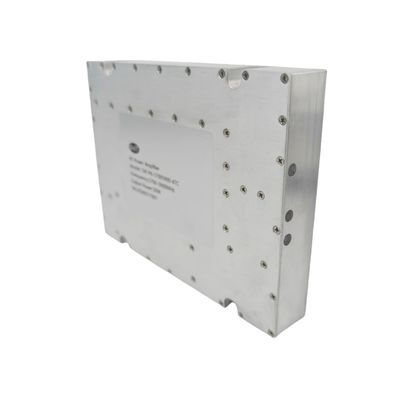

High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research

Place of Origin China
Brand Name SWT
Model Number SW-PA-57005900-47C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
5700~5900MHz
Operating Voltage:
32VDC
RF INPUT:
0dBm
P-sat Power Output:
47dBm
Input  VSWR:
1.8
Power Gain:
47dB
Power Gain Flatness:
±1dB
Current:
7A
Operating Temp.:
-20~60°C
Application:
Communication,Radar Systems,Test And Measurement
Dimensions (L X W x  H):
162 X 90 X 25mm
Highlight:

5700-5900MHz RF Microwave Power Amplifier

,

Laboratory Research RF Microwave Power Amplifier

,

50W RF Microwave Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)1829/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research



High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research 0



 Description



The 5700-5900MHz 50W RF Power Amplifier is designed for a range of applications in wireless communications, radar systems, and test and measurement equipment. This amplifier operates in the C-band frequency range, making it ideal for high-frequency and high-power applications. It provides high efficiency, robust performance, and excellent linearity, ensuring reliable signal amplification within this specific bandwidth.

Key Features

  1. Frequency Range: Covers the C-band frequency range from 5700MHz to 5900MHz.
  2. Power Output: Delivers a high power output of 50 watts, suitable for demanding applications.
  3. High Efficiency: Designed to offer high efficiency, reducing power consumption and heat generation.
  4. High Linearity: Ensures low distortion and high signal integrity, essential for communication and radar systems.
  5. Robust Design: Built with durable components and advanced thermal management to ensure stable operation in various environments.

Application Areas

  1. Wireless Communication:

    • Wi-Fi: Enhances signal coverage and quality in Wi-Fi networks, particularly for high-speed data transmission.
    • Fixed Wireless Access: Supports the amplification of signals in fixed wireless access systems, providing reliable connectivity over long distances.
  2. Radar Systems:

    • Short-range Radar: Used in applications such as automotive radar for collision avoidance and traffic monitoring.
    • Industrial Radar: Enhances the performance of industrial radar systems used in manufacturing and process control.
  3. Test and Measurement:

    • Signal Generators and Analyzers: Used in test equipment to generate and measure high-frequency RF signals with high precision.
    • Laboratory Research: Supports scientific research and development of new technologies by providing reliable signal amplification.

Technical Challenges

  1. Thermal Management: Effective thermal management is essential to handle the heat generated by high-power amplification and ensure consistent performance.
  2. Power Management: Requires stable power supply management to maintain reliable operation under high power output conditions.
  3. Linearity and Efficiency: Balancing high linearity with efficiency is crucial for achieving optimal performance in RF power amplifiers.
  4. Frequency Stability: Maintaining frequency stability across the entire bandwidth is critical for reliable and consistent signal transmission.
  5. Broadband Matching: Ensuring good input and output matching over the specified frequency range to maintain efficient and stable signal transmission.



Outline Dimensional Drawing



High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research 1

Specification

Typical performance at +32VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 5700   5900 MHz
RF INPUT   0   dBm
P-sat Power Output   47   dBm
Power Gain   47   dB
Power Gain Flatness   ±1 ±2 dB
Input VSWR   1.8 2.0
Operating Voltage   32   VDC
In-Out impedance   50
Current   7 8 A



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 162 x 90 x 25 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB15 --
Cooling Consider heat dissipation with the system (Not Supplied) --
Mounting 3-4 Thru Hole --
Weight ≤1.5 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +60 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C
INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 Amp Enable Enable : TTL “Low”, Disable : TTL “High” (Low : 0~0.5V, High : 2.5~5V)
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring (Output analog voltage)
5 GND Ground
6 GND Ground
7 Reverse Power Alarm Reverse Power Alarm (TTL Hi= Fault , TTL Lo =Normal )
8 NC NC
9-11 GND Ground
12 Temp Alarm Temp Alarm (TTL Hi= Fault, TTL Lo = Normal)
13-15 +VDC +32V

High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research 2
High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research 3
High Efficiency 5700-5900MHz 50W RF Microwave Power Amplifier for Signal Amplification in Laboratory Research 4

Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
