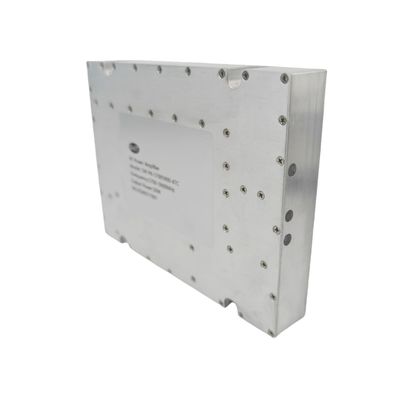

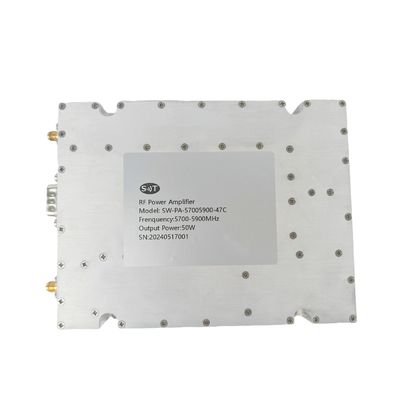

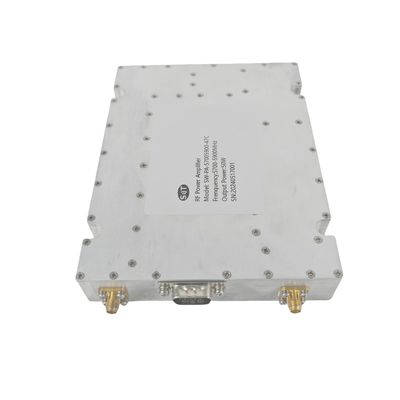

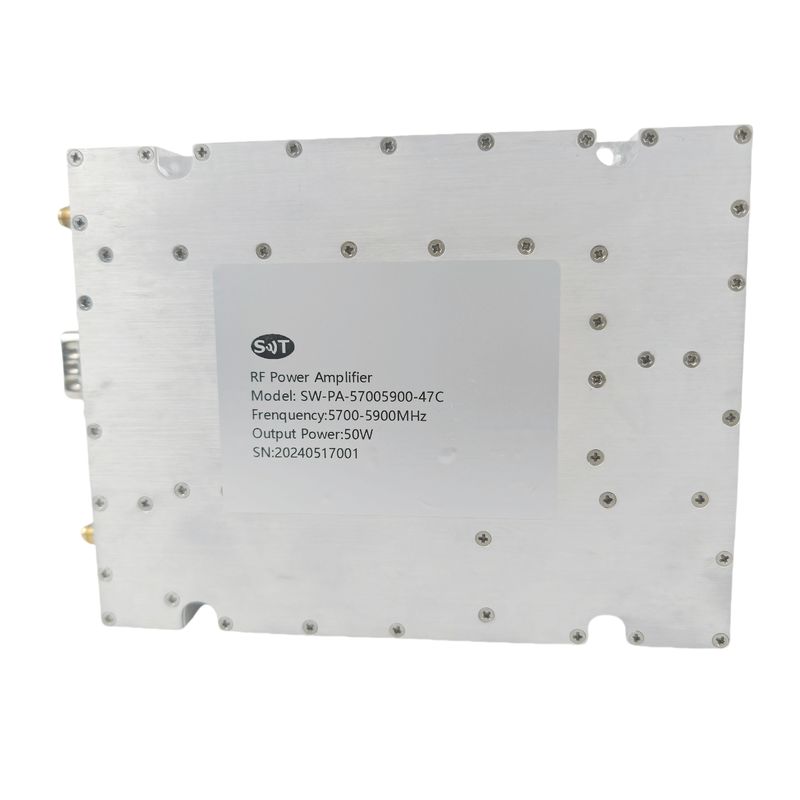

High Linearity Communication Module 5700-5900MHz 50W RF Power Amplifier for Wireless Communication
Description
The 5700-5900MHz 50W RF Power Amplifier is designed for a range of applications in wireless communications, radar systems, and test and measurement equipment. This amplifier operates in the C-band frequency range, making it ideal for high-frequency and high-power applications. It provides high efficiency, robust performance, and excellent linearity, ensuring reliable signal amplification within this specific bandwidth.
Key Features
- Frequency Range: Covers the C-band frequency range from 5700MHz to 5900MHz.
- Power Output: Delivers a high power output of 50 watts, suitable for demanding applications.
- High Efficiency: Designed to offer high efficiency, reducing power consumption and heat generation.
- High Linearity: Ensures low distortion and high signal integrity, essential for communication and radar systems.
- Robust Design: Built with durable components and advanced thermal management to ensure stable operation in various environments.
Application Areas
-
Wireless Communication:
- Wi-Fi: Enhances signal coverage and quality in Wi-Fi networks, particularly for high-speed data transmission.
- Fixed Wireless Access: Supports the amplification of signals in fixed wireless access systems, providing reliable connectivity over long distances.
-
Radar Systems:
- Short-range Radar: Used in applications such as automotive radar for collision avoidance and traffic monitoring.
- Industrial Radar: Enhances the performance of industrial radar systems used in manufacturing and process control.
-
Test and Measurement:
- Signal Generators and Analyzers: Used in test equipment to generate and measure high-frequency RF signals with high precision.
- Laboratory Research: Supports scientific research and development of new technologies by providing reliable signal amplification.
Technical Challenges
- Thermal Management: Effective thermal management is essential to handle the heat generated by high-power amplification and ensure consistent performance.
- Power Management: Requires stable power supply management to maintain reliable operation under high power output conditions.
- Linearity and Efficiency: Balancing high linearity with efficiency is crucial for achieving optimal performance in RF power amplifiers.
- Frequency Stability: Maintaining frequency stability across the entire bandwidth is critical for reliable and consistent signal transmission.
- Broadband Matching: Ensuring good input and output matching over the specified frequency range to maintain efficient and stable signal transmission.
Outline Dimensional Drawing
Specification
Typical performance at +32VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
5700 |
|
5900 |
MHz |
| RF INPUT |
|
0 |
|
dBm |
| P-sat Power Output |
|
47 |
|
dBm |
| Power Gain |
|
47 |
|
dB |
| Power Gain Flatness |
|
±1 |
±2 |
dB |
| Input VSWR |
|
1.8 |
2.0 |
|
| Operating Voltage |
|
32 |
|
VDC |
| In-Out impedance |
|
50 |
|
Ω |
| Current |
|
7 |
8 |
A |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
162 x 90 x 25 |
mm |

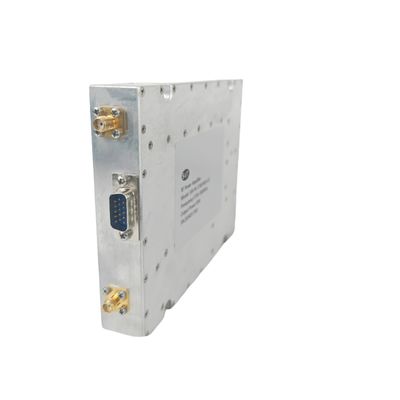

| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC / Control Connector |
DB15 |
-- |
| Cooling |
Consider heat dissipation with the system (Not Supplied) |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤1.5 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-20 |
+60 |
°C |
| Humidity Range |
0-100 |
% |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
DB15 |
| TRIAD CABLE PART NUMBER: |
—— |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1 |
Amp Enable |
Enable : TTL “Low”, Disable : TTL “High” (Low : 0~0.5V, High : 2.5~5V) |
| 2 |
Output Power monitoring |
Output Power Detection (Output analog voltage) |
| 3 |
Reverse Power monitoring |
Reverse Power Detection (Output analog voltage) |
| 4 |
Temp monitoring |
Temp monitoring (Output analog voltage) |
| 5 |
GND |
Ground |
| 6 |
GND |
Ground |
| 7 |
Reverse Power Alarm |
Reverse Power Alarm (TTL Hi= Fault , TTL Lo =Normal ) |
| 8 |
NC |
NC |
| 9-11 |
GND |
Ground |
| 12 |
Temp Alarm |
Temp Alarm (TTL Hi= Fault, TTL Lo = Normal) |
| 13-15 |
+VDC |
+32V |
Applications
Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.
Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.
Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.
Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.
Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.
Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.
In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
Our Company
Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

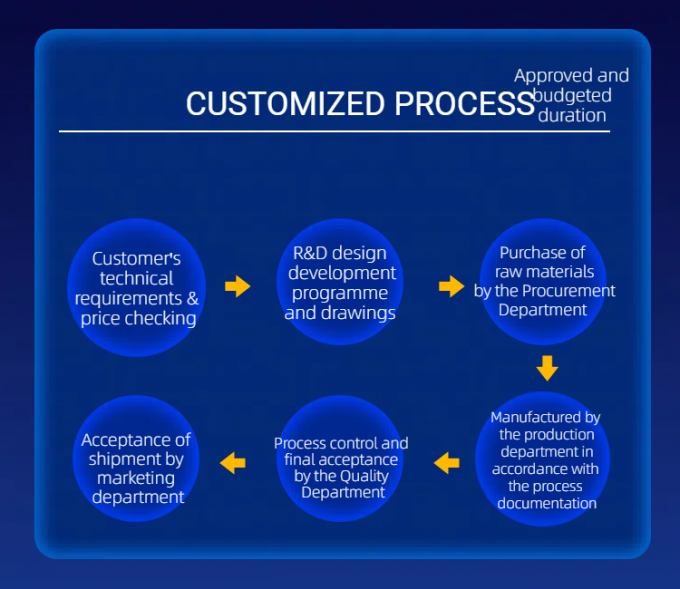

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.
With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

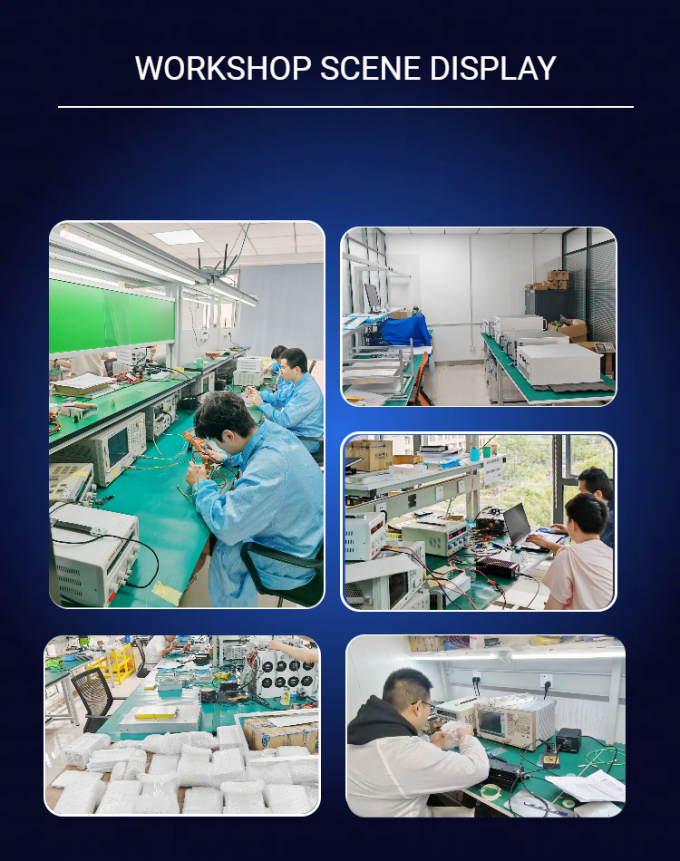

Showroom
