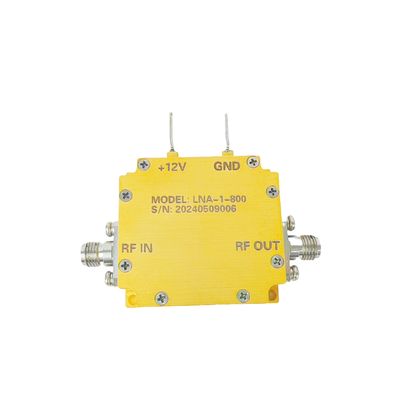

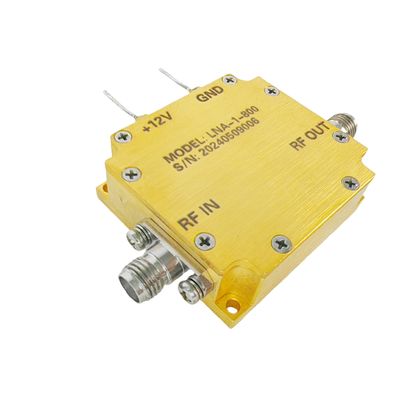

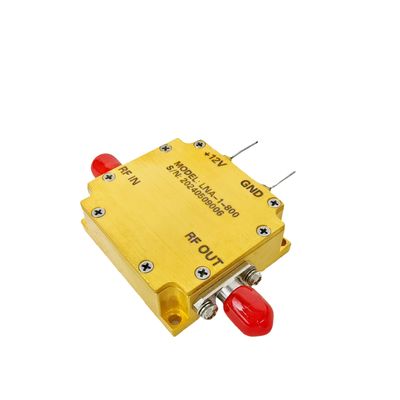

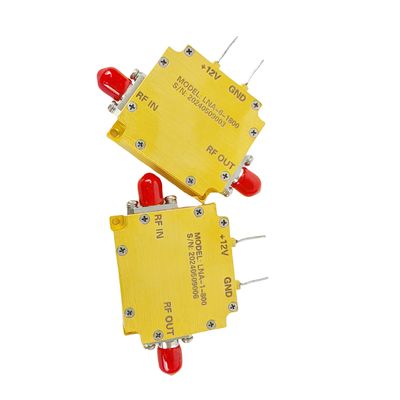

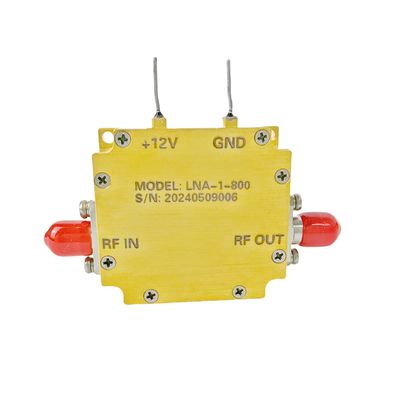

High Performance 1-8GHz 30dB High Linear Amplifier Low Noise Amplifier for Communication and Radar System

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-LNA-1-800
Product Details
Frequency Range:
1~8GHz
DC Power Supply:
DC 12~16V, 600mA
Gain:
30dB
Noise Figure:
2dBtyp@23℃
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm Power Supply: Feed Thru Capacitor
Gain Variation:
±2.5dBp-p
Output P1dB:
≥10dBm
Working Temp:
-40℃~+60℃
Applications:
Radar, Test And Measurement,Aerospace And Defense
Dimensions:
35mm*38mm*13mm
Packing:
Standard Packing
High Light:

Radar System High Linear Amplifier

,

30dB High Linear Amplifier

,

1-8GHz High Linear Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 140/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

High Performance 1-8GHz 30dB High Linear Amplifier Low Noise Amplifier for Communication and Radar System



Product Description

The 1-8GHz Low Noise Amplifier (LNA) is designed for high-performance applications requiring low noise, high gain, and wide bandwidth. This LNA is ideal for use in communication systems, radar systems, and other RF and microwave applications where signal integrity is paramount.

Main Features:

  1. Frequency Range: 1GHz to 8GHz
  2. Noise Figure: Low noise figure, typically less than 1.5dB, to ensure minimal signal degradation
  3. Gain: High gain, typically around 20dB, to amplify weak signals effectively
  4. Output Power: P1dB typically around 15dBm
  5. Input/Output Impedance: 50 ohms for seamless integration with standard RF systems

Design and Performance:

  • Wideband Operation: Efficiently covers a broad frequency range from 1GHz to 8GHz.
  • Low Noise: Specially designed to maintain a very low noise figure, ensuring excellent signal quality.
  • High Linearity: Provides high linearity to minimize signal distortion.
  • Compact and Robust Design: Small form factor and durable construction for easy integration and reliable performance in various environments.
  • Thermal Stability: Excellent thermal stability to ensure consistent performance over a wide temperature range.

Applications:

  • Communication Systems: Enhances signal reception and transmission in various communication systems including satellite, cellular, and wireless networks.
  • Radar Systems: Increases the sensitivity and accuracy of radar systems by amplifying weak signals.
  • Test and Measurement Equipment: Essential in RF and microwave test setups for accurate signal amplification.
  • Electronic Warfare: Utilized in electronic warfare systems for signal interception and processing.
  • Aerospace and Defense: Suitable for use in various aerospace and defense applications requiring robust and reliable amplification.

Performance Advantages:

  • Wide Frequency Coverage: Efficiently supports a wide range of applications across the 1-8GHz band.
  • Low Noise Characteristics: Ensures high-quality signal amplification with minimal noise addition.
  • High Gain: Delivers significant signal amplification to enhance weak signals.
  • Versatility: Suitable for various commercial, industrial, and military applications.
  • Reliability: High-quality construction ensures long-term reliability and performance.

Summary:

The 1-8GHz Low Noise Amplifier is a high-performance, versatile solution for a variety of RF and microwave applications. Its low noise figure, high gain, and wide frequency range make it an excellent choice for enhancing signal quality and system performance in communication, radar, test and measurement, electronic warfare, and aerospace and defense systems.

​​

Working freq 1~8GHz
Noise figure 2dBtyp@23ºC
Gain 30dB
Gain variation ±2.5dBp-p
Input VSWR 1.7:1
Output P1dB ≥10dBm
Power supply DC 12~16V, 600mA
Connectors Input: SMA-Female, 50ohm;
Output: SMA-Female, 50ohm
Power supply: Feed thru capacitor
Working Temp -40ºC~+60ºC
Dimensions 35mm*38mm*13mm(Preliminary)
