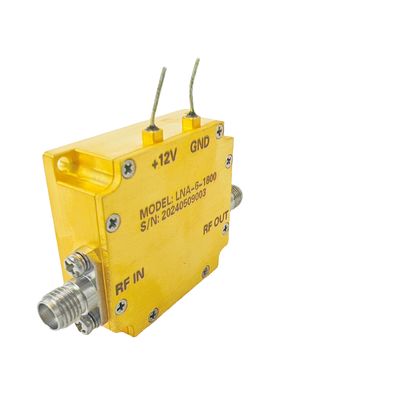

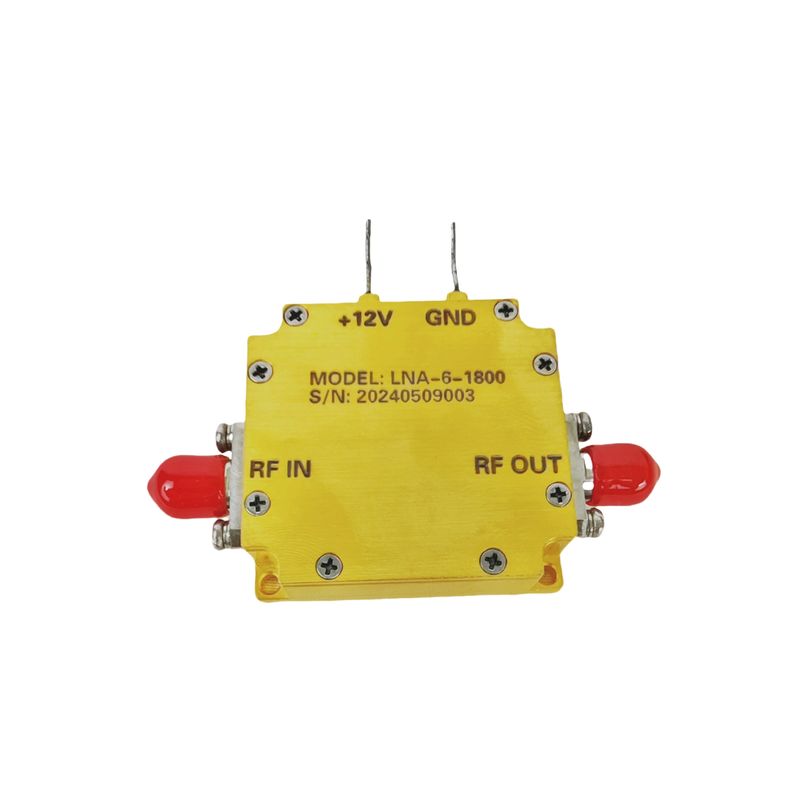

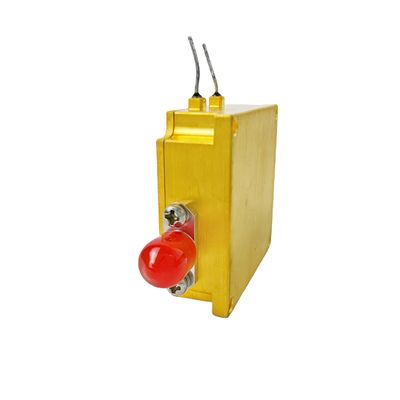

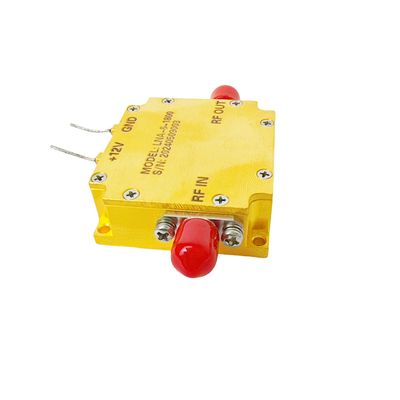

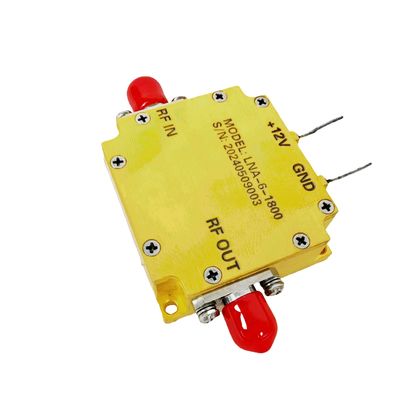

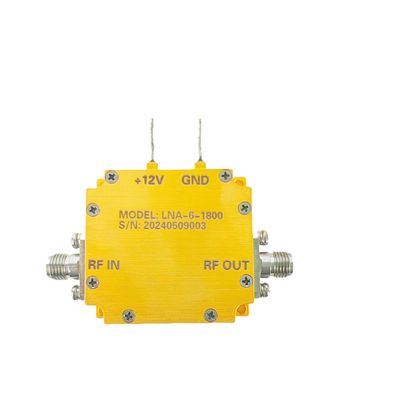

Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense
  • Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense

Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-LNA-6-1800
Product Details
Frequency Range:
6~18GHz
DC Power Supply:
DC 12V, 200mA@12V
Gain:
30dB
Noise Figure:
3dBtyp@23℃
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm Power Supply: Feed Thru Capacitor
Gain Variation:
±2.0dBp-p
Output P1dB:
≥10dBm
Working Temp:
-40℃~+60℃
Applications:
Radar, Test And Measurement,Aerospace And Defense
Dimensions:
35mm*38mm*13mm
Packing:
Standard Packing
High Light:

Customized Low Noise Figure Amplifier

,

Communication Low Noise Figure Amplifier

,

6-18GHz Low Noise Figure Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 280/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier for Aerospace and Defense



Product Description

The 6-18GHz Low Noise Amplifier (LNA) is designed to offer outstanding performance with low noise, high gain, and wide bandwidth. It is ideal for use in communication systems, radar systems, electronic warfare, and other RF and microwave applications where signal integrity is critical.

Main Features:

  1. Frequency Range: 6GHz to 18GHz
  2. Noise Figure: Typically less than 2.0dB, ensuring minimal signal degradation
  3. Gain: Typically around 25dB, providing effective amplification of weak signals
  4. Output Power: P1dB typically around 18dBm
  5. Input/Output Impedance: 50 ohms for compatibility with standard RF systems

Design and Performance:

  • Wideband Operation: Covers a broad frequency range from 6GHz to 18GHz, making it suitable for various applications.
  • Low Noise: Designed to maintain a very low noise figure, ensuring excellent signal quality and minimal distortion.
  • High Gain: Delivers significant amplification, boosting weak signals effectively to ensure reliable performance.
  • Compact and Robust Design: Features a small form factor and durable construction for easy integration and reliable performance in various environments.
  • Thermal Stability: Excellent thermal stability ensures consistent performance across a wide temperature range.

Applications:

  • Communication Systems: Enhances signal reception and transmission in satellite, cellular, and wireless networks.
  • Radar Systems: Increases the sensitivity and accuracy of radar systems by amplifying weak signals.
  • Electronic Warfare: Utilized in systems for signal interception and processing.
  • Test and Measurement Equipment: Essential in RF and microwave test setups for accurate signal amplification.
  • Aerospace and Defense: Suitable for various aerospace and defense applications requiring robust and reliable amplification.

Performance Advantages:

  • Wide Frequency Coverage: Supports a wide range of applications across the 6-18GHz band.
  • Low Noise Characteristics: Ensures high-quality signal amplification with minimal noise addition.
  • High Gain: Delivers significant signal amplification to enhance weak signals.
  • Versatility: Suitable for various commercial, industrial, and military applications.
  • Reliability: High-quality construction ensures long-term reliability and performance.

Summary:

The 6-18GHz Low Noise Amplifier is a high-performance, versatile solution for a variety of RF and microwave applications. Its low noise figure, high gain, and wide frequency range make it an excellent choice for enhancing signal quality and system performance in communication, radar, test and measurement, electronic warfare, and aerospace and defense systems.

​​

Working freq 6~18GHz
Noise figure 3dBtyp@23ºC
Gain 30dB
Gain variation ±2.0dBp-p
Input VSWR 1.9:1
Output P1dB ≥10dBm
Power supply DC 12V, 200mA@12V
Connectors Input: SMA-Female, 50ohm;
Output: SMA-Female, 50ohm
Power supply: Feed thru capacitor
Working Temp -40ºC~+60ºC
Dimensions 35mm*38mm*13mm(Preliminary)



Customized Communication Module 6-18GHz 30dB Gain Low Noise Figure Amplifier For Aerospace And Defense 0
