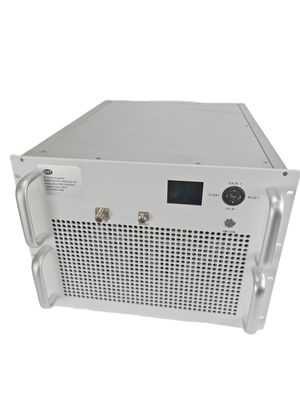

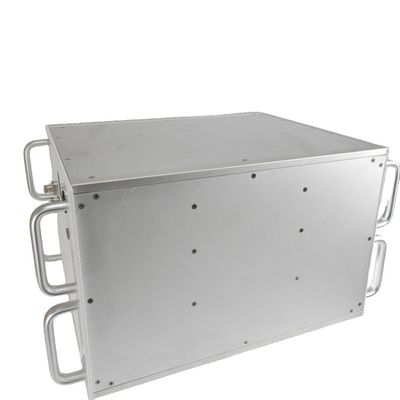

1-2GHz 330W Ultra Wideband Power Amplifier Chassis High Power Amplifier ( 8U 19inch rack mounted) for EMC Test
Description
The 1-2GHz 330W Ultra Wideband Power Amplifier Chassis is a high-performance RF amplifier designed to provide powerful output across a broad frequency range. Below are the specific details of this amplifier:
Frequency Range: 1GHz to 2GHz
Power Output:
- Saturated Output Power: 330W
Gain:
Design:
- Chassis: The amplifier features a robust 19-inch rack unit, ensuring durability and stability.
- Dimensions: 482mm x 550mm x 356mm
- Height: 8U rack unit height
Features:
- EMI Shielding: The chassis is equipped with electromagnetic interference (EMI) shielding to ensure reliable and interference-free operation.
- Wideband Coverage: Designed to operate efficiently over a broad frequency range, making it suitable for a variety of applications.
- High Power Output: With a significant power output of 330W, it can handle demanding applications that require high power levels.
Applications:
- Wireless Communication: Ideal for enhancing signal strength in wireless communication systems.
- Test and Measurement: Suitable for both laboratory and field testing environments, providing reliable and accurate amplification.
- Radar Systems: Can be used in radar systems, delivering the necessary power and frequency range for effective operation.
- Broadcasting: Supports broadcasting applications, ensuring strong and clear signal transmission over a wide frequency range.
- EMC Testing: Suitable for electromagnetic compatibility (EMC) testing, ensuring the reliability and performance of equipment and systems.
Performance:
- Efficiency and Linearity: Designed to maintain high efficiency and linearity across its operating frequency range, ensuring consistent and reliable performance.
In summary, the 1-2GHz 330W Ultra Wideband Power Amplifier Chassis is a critical component in high-performance RF systems, delivering robust and reliable amplification over a broad frequency range. It is particularly suited for applications requiring high power output and wideband coverage, making it a versatile tool for various demanding scenarios.

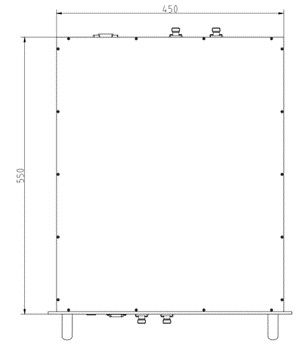

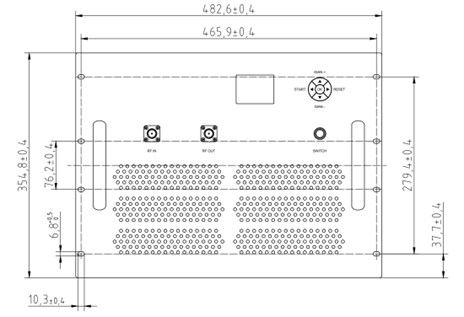

Outline Dimensional Drawing
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
1000 |
|
2000 |
MHz |
| RF INPUT |
|
0 |
5 |
dBm |
| Power Gain |
55.5 |
56 |
|
dB |
| P-sat Output Power |
55.5 |
56 |
|
dBm |
| Power Gain Flatness |
|
±2.5 |
|
dB |
| In/Out Impedance |
50 |
Ω |
| Spurious Signals |
|
-50 |
|
dBc |
| Harmonic Signals |
|
-15 |
|
dBc |
| Operating Voltage |
200 |
220 |
260 |
V AC |
| Supply Power |
|
|
1500 |
W |
| Input VSWR |
|
|
2 |
|
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (W x D x H) |
The standard 19-inch shelf is 8U high, 482*550*356 |
mm |
| RF Connectors (Input / Output) |
N-K / N-K (female) |
-- |
| Control Connector (Option1) |
DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature
Remote control and monitoring can be realized through RS232
|
-- |
| Control Connector (Option2) |
RJ45:Remote control and monitoring can be realized through LAN |
|
| Cooling |
Built-in cooling system, forced air cooling |
-- |
| Weight |
≤45 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. |
-25 |
+55 |
°C |
| Humidity Range |
0-90 |
% |
| Amplifier Safeguard Temp. |
+80 |
°C |
| Protections |
With over temperature protection, input over power protection, output mismatch protection Maximum withstand standing wave 4:1 |
|

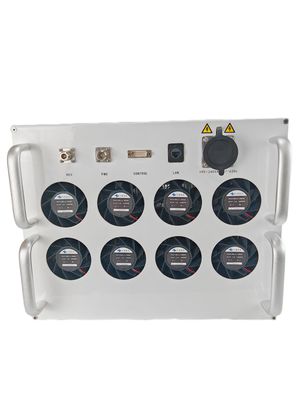

| INPUT/OUTPUT panel Connector |
| AMPLIFIER CONNECTOR TYPE: |
—— |
| TRIAD CABLE PART NUMBER: |
—— |
| NUMBER |
interface type |
DESCRIPTION |
| X1 |
N-K |
RF IN |
| X2 |
N-K |
RF OUT |
| X3 |
LCD Display |
Human-computer interaction interface |
| X4 |
Switch |
AC/220V/50Hz |
| X5 |
RJ45 |
LAN |
| X6 |
DB15 |
Control interface |
| X7 |
N-FK |
Forward coupling port |
| X8 |
N-FK |
Reverse coupling port |
| |
|
|
|
| Connector Definition |
| AMPLIFIER CONNECTOR TYPE: |
DB15 |
| TRIAD CABLE PART NUMBER: |
—— |
| NUMBER |
Definition |
DESCRIPTION |
| 1 |
PA Enable |
TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 |
Output Power monitoring |
Output Power Detection (Output analog voltage) |
| 3 |
Reverse Power monitoring |
Reverse Power Detection (Output analog voltage) |
| 4 |
Temp monitoring |
Temp monitoring alarm (Output analog voltage) |
| 5 |
GND |
GND |
| 6 |
RXD |
RS232 serial bus interface (TTL) |
| 7 |
TXD |
| 8 |
GND |
| 9-15 |
NC |
NC |
