Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement

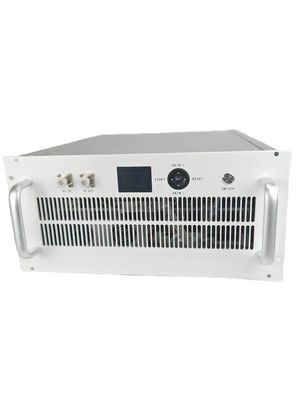

  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement
  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement

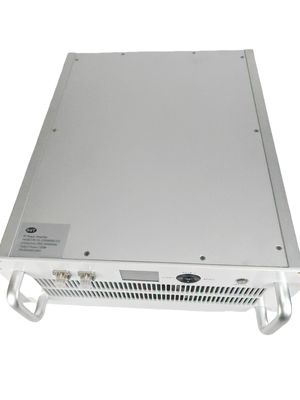

  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement
  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement
  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement
  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement
  • Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement

Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement

Place of Origin China
Brand Name SWT
Model Number SW-PA-20006000-52C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
2~6GHz
Power Gain:
52dB
P-sat Power Power:
52dBm
RF INPUT:
0dBm
Input  VSWR:
2
Spurious Signals:
-50dBc
Harmonic  Signals:
-15dBc
Power Gain Flatness:
±4dB
Operating Temp.:
-25~55°C
Dimensions (L X W x  H):
482*550*223mm
Operating Voltage:
220VDC
Application:
Communication,Radar Systems,Test And Measurement
Highlight:

150w customized power amplifier

,

Ultra Wideband 150w power amplifier

,

150w rackmount power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)20656/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized High Power Output 2-6GHz 150W 52dB Ultra-Wideband Rackmount Power Amplifier for Test and Measurement



Description

This ultra-wideband power amplifier chassis operates within the 2-6GHz frequency range, delivering an impressive power output of 150W. It features a high power gain of 52dB, making it suitable for a wide range of high-power applications. Here are the key details:

  • Frequency Range: 2-6GHz
  • Power Output: 150W
  • Power Gain: 52dB
  • Chassis: Designed for robust and reliable performance, the amplifier is housed in a 19-inch rack unit.
  • Dimensions: 482*550*223 mm
  • Height: 5U standard rack height

Features:

  • EMI Shielding: Ensures the amplifier is protected from electromagnetic interference, maintaining signal integrity and performance.
  • High Efficiency and Linearity: The amplifier maintains high efficiency and linearity throughout its operational frequency range.
  • Applications: Ideal for use in wireless communications, test and measurement setups, radar systems, and broadcasting. It is particularly suited for environments requiring stable and reliable high-power amplification over a broad frequency range.

Benefits:

  • Broad Frequency Coverage: Suitable for a wide array of applications due to its extensive frequency range.
  • High Power Output: Delivers substantial power, making it essential for high-performance RF systems.
  • Robust Design: The durable and EMI-shielded chassis ensures reliable operation in demanding environments.

In summary, the 2-6GHz 150W 52dB ultra-wideband power amplifier chassis is a crucial component for any high-power RF application, providing robust, reliable, and efficient amplification across a wide frequency spectrum.

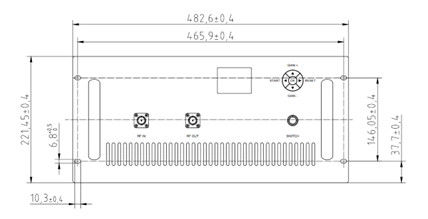

Outline Dimensional Drawing



Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement 0





Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement 1

Customized High Power Output 2-6GHz 150W 52dB Ultra Wideband Rackmount Power Amplifier for Test and Measurement 2

Specification



Typical performance at 220V AC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2000   6000 MHz
RF INPUT   0 5 dBm
Power Gain 52     dB
P-sat Output Power 52     dBm
Power Gain Flatness   ±4   dB
In/Out Impedance 50 Ω
Spurious Signals   -50   dBc
Harmonic Signals   -15   dBc
Operating Voltage 200 220 260 V AC
Supply Power     2000 W
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 5U high, 482*550*223 mm
RF Connectors (Input / Output) N-K / N-K (female) --
Control Connector (Option1)

DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature

Remote control and monitoring can be realized through RS232

--
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN --
Cooling Built-in cooling system, forced air cooling --
Weight ≤35 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, output mismatch protection Maximum withstand standing wave 4:1



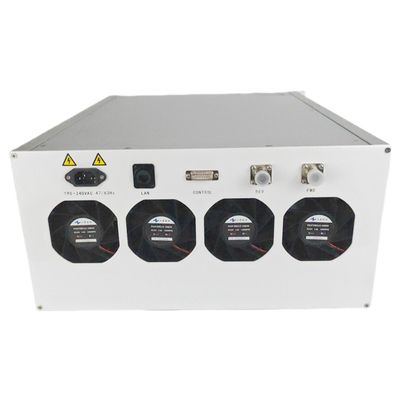

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 N-FK RF OUT
X3 LCD Display Human-computer interaction interface
X4 Switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB15 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port






Connector Definition
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring alarm (Output analog voltage)
5 GND GND
6 RXD RS232 serial bus interface (TTL)
7 TXD
8 GND
9-15 NC NC



























Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
