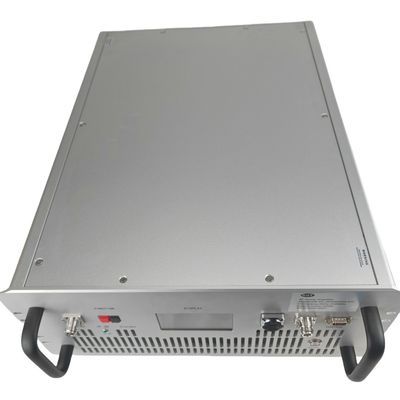

High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement

Place of Origin China
Brand Name SWT
Model Number SW-PA-0R0090250-57C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
9k~250MHz
Operating Voltage:
220VDC
RF INPUT:
0dBm
P-sat Power Power:
500w
Input  VSWR:
4
Spurious Signals:
-65dBc
Harmonic  Signals:
-15dBc
Power Gain:
57dB
Power Gain Flatness:
±4dB
Operating Temp.:
-25~55°C
Application:
Communication,Radar Systems,Test And Measurement
Dimensions (L X W x  H):
482*600*223mm
High Light:

High Reliability RF Amplifier

,

500W RF Amplifier

,

9K-250MHz RF Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)39900/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement



 Description

The 9KHz-250MHz Ultra Wideband Power Amplifier is a high-performance RF amplifier designed to provide significant power gain and output across a wide frequency range. Below are the specific details of this powerful and versatile amplifier:

Frequency Range: 9KHz to 250MHz

Power Output:

  • Saturated Output Power: 500W

Gain:

  • Power Gain: 57dB

Design:

  • Chassis: The amplifier is enclosed in a robust 19-inch rack unit, ensuring durability and stability.
  • Dimensions: 482*600*223mm
  • Height: 5U rack unit height

Features:

  • EMI Shielding: The chassis is equipped with electromagnetic interference (EMI) shielding to ensure reliable and interference-free operation.
  • Broad Frequency Coverage: The amplifier is designed to operate efficiently across a wide frequency range, making it suitable for various applications.
  • High Power Output: With a substantial power output of 500W, it can handle demanding applications requiring high power levels.

Applications:

  • Wireless Communication: The amplifier is ideal for enhancing signal strength in wireless communication systems.
  • Testing and Measurement: It is well-suited for use in both laboratory and field testing environments, providing reliable and accurate amplification.
  • Radar Systems: The amplifier can be used in radar systems, offering the necessary power and frequency range for effective operation.
  • Broadcasting: It supports broadcasting applications, ensuring strong and clear signal transmission over broad frequency ranges.

Performance:

  • Efficiency and Linearity: Designed to maintain high efficiency and linearity across its operating frequency range, ensuring consistent and reliable performance.

In summary, the 9KHz-250MHz 500W Ultra Wideband Power Amplifier is a critical component for high-performance RF systems, providing robust and dependable amplification across a wide frequency spectrum. It is particularly valuable for applications that require high power output and broad frequency coverage, making it a versatile tool in various high-demand scenarios.

Outline Dimensional Drawing

High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement 0



High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement 1

High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement 2

Specification



Typical performance at 220V AC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 0.009   250 MHz
RF INPUT   0 5 dBm
Power Gain 57     dB
P-1dB Output Power 300     W
P-sat Output Power 500     W
Power Gain Flatness   ±4   dB
In/Out Impedance 50 Ω
Spurious Signals     -65 dBc
Harmonic Signals   -15 -8 dBc
Gain Adjust Range   31.5
Gain Adjust Ste   0.5
Operating Voltage 200 220 260 V AC
Supply Power     3500 W
Input VSWR     4



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 5U high, 482*600*223 mm
RF Connectors (Input / Output) N-K / N-K (N female) --
Control Connector (Option1) DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current --
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤40 kg
AC Connector Three-in-one air switch



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Housing Temp. -45 +55 °C
Amplifier Safeguard Temp. +80 °C
Protections

With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection

Maximum withstand standing wave 4:1





INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 N-FK RF OUT
X3 LCD display Human-computer interaction interface
X4 Three-in-one air switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB9 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port






Connector Definition
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (TTL Hi= Normal , TTL Lo =Fault )
3 Temp monitoring Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
4 Voltage monitoring Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
5 Current monitoring Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
6 RXD RS232 serial bus interface, PA gain adjustment
7 TXD
8 GND
9 NC NC



Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs

High Reliability and Durability RF Amplifier 9K-250MHz 500W Ultra Wideband Power Amplifier for Testing and Measurement 3
