High-Performance and Stable RF Amplifier 1-2GHz 330W Ultra Wideband Power Amplifier Chassis for EMC Test

Place of Origin China
Brand Name SWT
Model Number SW-PA-10002000-55C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
1~2GHz
Operating Voltage:
220VDC
RF INPUT:
0dBm
P-sat Power Power:
500w
Input  VSWR:
4
Spurious Signals:
-65dBc
Harmonic  Signals:
-15dBc
Power Gain:
57dB
Power Gain Flatness:
±4dB
Operating Temp.:
-25~55°C
Application:
Communication,Radar Systems,Test And Measurement
Dimensions (L X W x  H):
482*600*223mm
High Light:

1-2GHz RF Amplifier

,

EMC Test RF Amplifier

,

330W RF Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)18600/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High-Performance and Stable RF Amplifier 1-2GHz 330W Ultra Wideband Power Amplifier Chassis for EMC Test



Description

The 1-2GHz 330W Ultra Wideband Power Amplifier Chassis is a high-performance RF amplifier designed to provide powerful output across a broad frequency range. Below are the specific details of this amplifier:

Frequency Range: 1GHz to 2GHz

Power Output:

  • Saturated Output Power: 330W

Gain:

  • Power Gain: 56dB

Design:

  • Chassis: The amplifier features a robust 19-inch rack unit, ensuring durability and stability.
  • Dimensions: 482mm x 550mm x 356mm
  • Height: 8U rack unit height

Features:

  • EMI Shielding: The chassis is equipped with electromagnetic interference (EMI) shielding to ensure reliable and interference-free operation.
  • Wideband Coverage: Designed to operate efficiently over a broad frequency range, making it suitable for a variety of applications.
  • High Power Output: With a significant power output of 330W, it can handle demanding applications that require high power levels.

Applications:

  • Wireless Communication: Ideal for enhancing signal strength in wireless communication systems.
  • Test and Measurement: Suitable for both laboratory and field testing environments, providing reliable and accurate amplification.
  • Radar Systems: Can be used in radar systems, delivering the necessary power and frequency range for effective operation.
  • Broadcasting: Supports broadcasting applications, ensuring strong and clear signal transmission over a wide frequency range.
  • EMC Testing: Suitable for electromagnetic compatibility (EMC) testing, ensuring the reliability and performance of equipment and systems.

Performance:

  • Efficiency and Linearity: Designed to maintain high efficiency and linearity across its operating frequency range, ensuring consistent and reliable performance.

In summary, the 1-2GHz 330W Ultra Wideband Power Amplifier Chassis is a critical component in high-performance RF systems, delivering robust and reliable amplification over a broad frequency range. It is particularly suited for applications requiring high power output and wideband coverage, making it a versatile tool for various demanding scenarios.

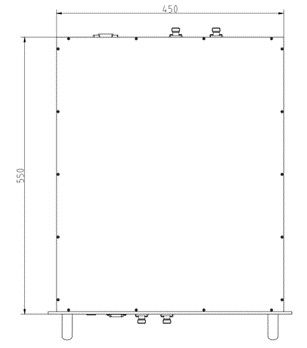

Outline Dimensional Drawing







High-Performance and Stable RF Amplifier 1-2GHz 330W Ultra Wideband Power Amplifier Chassis for EMC Test 0

High-Performance and Stable RF Amplifier 1-2GHz 330W Ultra Wideband Power Amplifier Chassis for EMC Test 1

High-Performance and Stable RF Amplifier 1-2GHz 330W Ultra Wideband Power Amplifier Chassis for EMC Test 2

Specification



Typical performance at 220V AC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1000   2000 MHz
RF INPUT   0 5 dBm
Power Gain 55.5 56   dB
P-sat Output Power 55.5 56   dBm
Power Gain Flatness   ±2.5   dB
In/Out Impedance 50 Ω
Spurious Signals   -50   dBc
Harmonic Signals   -15   dBc
Operating Voltage 200 220 260 V AC
Supply Power     1500 W
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 8U high, 482*550*356 mm
RF Connectors (Input / Output) N-K / N-K (female) --
Control Connector (Option1)

DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature

Remote control and monitoring can be realized through RS232

--
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤45 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, output mismatch protection Maximum withstand standing wave 4:1



INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-K RF IN
X2 N-K RF OUT
X3 LCD Display Human-computer interaction interface
X4 Switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB15 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port






Connector Definition
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring alarm (Output analog voltage)
5 GND GND
6 RXD RS232 serial bus interface (TTL)
7 TXD
8 GND
9-15 NC NC















Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
