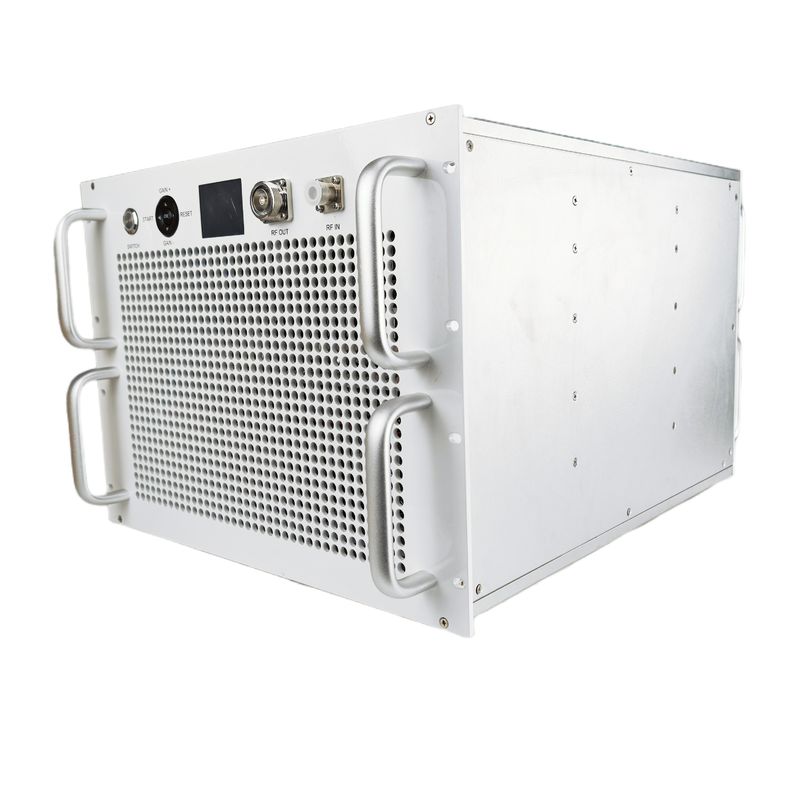

High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification
  • High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification

High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification

Place of Origin China
Brand Name SWT
Model Number SW-PA-00801000-59C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
80~1000MHz
Power Gain:
59.3dB
P-sat Power Power:
59.3dBm
RF INPUT:
0dBm
Input  VSWR:
2
Spurious Signals:
-50dBc
Harmonic  Signals:
-15dBc
Power Gain Flatness:
±4dB
Operating Temp.:
-25~55°C
Dimensions (L X W x  H):
482*550*356mm
Operating Voltage:
220VDC
Application:
Communication,Radar Systems,Test And Measurement
High Light:

59.3dBm Power Amplifier Chassis

,

850W Power Amplifier Chassis

,

Signal Amplification Power Amplifier Chassis

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)27526/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis for Signal Amplification



Description

The 80-1000MHz 850W Ultra Wideband Power Amplifier is a high-performance RF amplifier designed to meet the demanding requirements of a wide range of applications. Here are the key features and specifications of this rack-mounted power amplifier:

Key Features:

  1. Frequency Range: Operates over a wide frequency range from 80MHz to 1000MHz.
  2. Power Output: Delivers a substantial output power of 850W, making it suitable for high-power applications.
  3. High Gain: Provides significant power gain to ensure robust signal amplification across the specified frequency range.
  4. Efficiency: Designed for high efficiency, ensuring minimal power loss and optimal performance.
  5. Robust Design: Enclosed in a rugged rack-mounted chassis, providing durability and stability in various operational environments.
  6. EMI Shielding: The chassis is equipped with EMI shielding to minimize electromagnetic interference, ensuring reliable performance.
  7. Cooling System: Integrated with an efficient cooling system to maintain optimal operating temperatures and ensure longevity.

Applications:

  • Wireless Communication: Enhances signal strength and quality in various wireless communication systems.
  • Broadcasting: Suitable for television and radio broadcasting, providing clear and powerful signal transmission.
  • Radar Systems: Ideal for radar applications, offering high power and reliability.
  • Testing and Measurement: Used in laboratory and field testing scenarios to provide consistent and accurate signal amplification.
  • Military and Aerospace: Supports high-power RF applications in military and aerospace sectors, ensuring robust and reliable communication and radar capabilities.

Technical Specifications:

  • Frequency Range: 80-1000MHz
  • Output Power: 850W
  • Gain: Typically high to ensure strong amplification
  • Cooling: Efficient cooling mechanism to handle the high power output
  • Dimensions: Rack-mounted chassis, typically 19 inches in width, with height and depth varying according to design requirements
  • Weight: Varies based on specific design and additional features

Design and Construction:

  • The amplifier is constructed to handle the rigors of high-power RF applications.
  • It includes comprehensive protection features to guard against over-voltage, over-current, and thermal overload conditions.
  • The robust construction and reliable components ensure longevity and consistent performance in demanding environments.

This ultra-wideband power amplifier is an essential component for any application requiring high power and broad frequency coverage, providing exceptional performance and reliability across a wide range of frequencies.

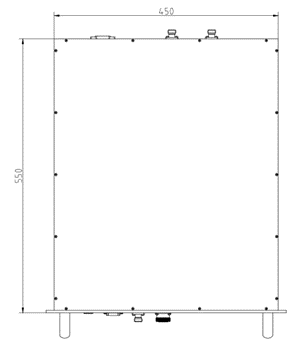

Outline Dimensional Drawing

High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification 0



High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification 1

High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier Chassis For Signal Amplification 2





Specification



Typical performance at 220V AC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 80   1000 MHz
RF INPUT   0 5 dBm
Power Gain 59.3     dB
P-sat Output Power 59.3     dBm
Power Gain Flatness   ±4   dB
In/Out Impedance 50 Ω
Spurious Signals   -50   dBc
Harmonic Signals   -15   dBc
Operating Voltage 200 220 260 V AC
Supply Power     3500 W
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 8U high, 482*550*356 mm
RF Connectors (Input / Output) N-K / 7/16 (female) --
Control Connector (Option1)

DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature

Remote control and monitoring can be realized through RS232

--
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤45 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. 0 +55 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, output mismatch protection Maximum withstand standing wave 4:1



INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 7/16(f) RF OUT
X3 LCD Display Human-computer interaction interface
X4 Switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB15 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port






Connector Definition
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring alarm (Output analog voltage)
5 GND GND
6 RXD RS232 serial bus interface (TTL)
7 TXD
8 GND
9-15 NC NC

































Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
