1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality
  • 1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality

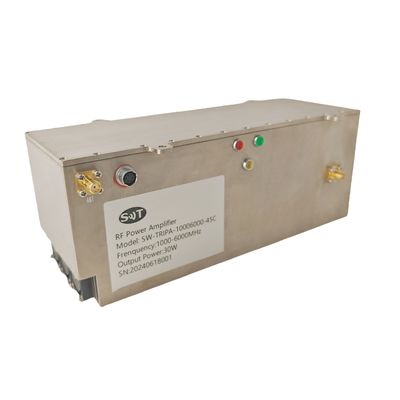

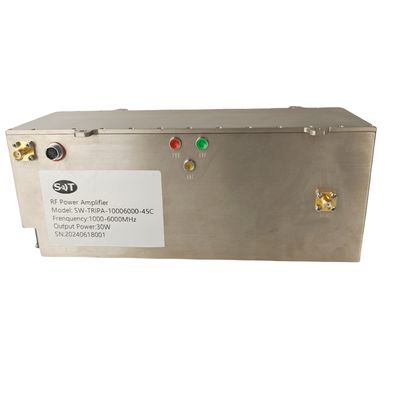

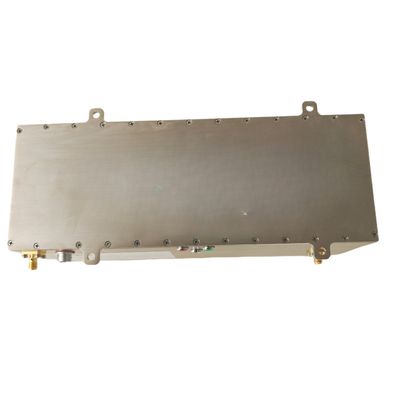

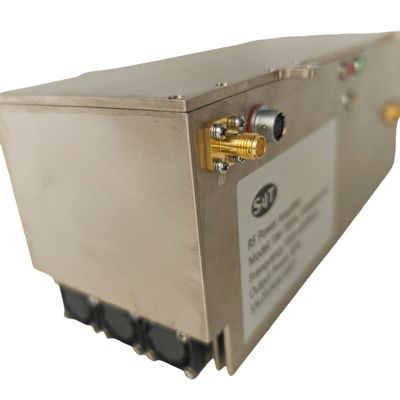

1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality

Place of Origin China
Brand Name SWT
Model Number SW-TRIPA-10006000-45C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
1000~6000MHz
Operating Voltage:
38VDC
RF INPUT:
0dBm
P-sat Power Output:
45dBm
Input  VSWR:
2.0
Power Gain:
45dB
Power Gain Flatness:
±0.75dB
Operating Temp.:
-30~55°C
Application:
Communication,Radar Systems,Test And Measurement
Dimensions (L X W x  H):
228×113×89.5mm
High Light:

30W Solid State RF Power Amplifier

,

1-6GHz solid state rf power amplifier

,

30W solid state rf power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)4100/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Reliable and Stable High Efficiency 1-6GHz Tri-Band 30W RF Power Amplifier for Radar Systems and Wireless Communication



1-6GHz 30W Solid State RF Power Amplifier For Wireless Communications Enhanced Signal Transmission Quality 0

 Description

The 1-6GHz 30W RF Power Amplifier is a broadband high-power amplifier suitable for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier employs advanced design technology to ensure high efficiency, high gain, and stable output power.

Product Features

  • High Efficiency: Utilizes efficient power amplification technology to ensure high performance and low power consumption.
  • High Gain: Provides excellent gain performance to ensure high-quality signal amplification.
  • Stability: Offers outstanding frequency and temperature stability, adapting to various complex environments.
  • Rugged and Durable: Designed to meet industrial-grade standards, ensuring high reliability and durability.

Application Scenarios

  • Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication.
  • Radar Systems: Improves radar signal detection capabilities, enhancing the system's detection range and accuracy.
  • Electronic Warfare: Provides powerful signal interference and suppression capabilities in electronic warfare systems.
  • Signal Testing: Used in various RF signal testing systems to ensure the accuracy and reliability of test results.

Advantages

  • Efficient and Stable: Employs advanced amplification technology to ensure high efficiency and stability.
  • Broad Frequency Coverage: Covers a frequency range of 1-6GHz, suitable for various application scenarios.
  • Easy Integration: Compact design makes it easy to integrate into existing systems.
  • High Reliability: Meets industrial-grade standards, suitable for various harsh environments.

Specification

Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency
Channal 1
1320   1480 MHz
Operating Frequency
Channal 2
2170   2380 MHz
Operating Frequency
Channal 3
4370   4630 MHz
RF INPUT Channal 1&2   0   dBm
RF INPUT Channal 3   -7   dBm
P-1dB Power Output (High) 45     dBm
Power Gain Channal 1&2 45     dB
Power Gain Channal 3 52     dB
Power Output (Low) 30     dBm
Power Gain Flatness (Per Band)   ±0.75   dB
VSWR     2.0
Spurious Signals   -60   dBc
Harmonic Signals@ 40dBm   -60   dBc
Operating Voltage 18 28 36 VDC
In-Out impedance   50   Ω
Efficiency @ Pout: 40~41 dBm 30     %
Output Filtering Mechanical Filter (Triplexer)
Input Filtering Spectral Input is not Clean



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 228×113×89.5 mm
RF Connectors (Input / Output) SMA-Female, 50 ohms --
DC /Control Connector 6 Pin (MS27473E8B35P) --
Cooling Heat dissipation with the cooling system
Mounting 3-4 Thru Hole --
Weight 2 kg
Laser Printer Connector PWR /RF in /ANT
Laser Printer LED ANT/PWR/AMP
Case Aluminum (ENP)



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -30 +55 °C
Humidity Range 0-95 %
Reverse Voltage Protection Yes
Antenna Disconnect Protection Yes (Isolator or Coupler)
Overheat Protection Yes ( Fan & Heat sink & AMP Off+80 °C)
Current Protection Hot Swap
Configure Interface serial port:RS485 (Band, Pout (High/Low))
Report Parameter BW, AMP mode (High/Low), VSWR, SySTime, Temp, PWR Detect
Monitor Power Supply Yes (Red LED & serial port:RS485)
Monitor Output Power Detection Yes (Green LED (>4watt)& RS485)
Monitor VSWR Yes (Yellow LED & RS485)
Mechanical Shock 6g ,llms ,10 Times ,3 axis ,2 Direct
Vibration Frequency 5 to 2000 Hz ,15 min .3g ,3 axis .2 Direct
Enclosure Class IP67



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: MS27473E8B35P
TRIAD CABLE PART NUMBER: --
PIN NUMBER LABEL DESCRIPTION
1 VDD +28V
2 GND GND
3 NC NC
4 RS485A serial port:RS485 (Band, Pout (High/Low))
5 RS485B
6 GND GND

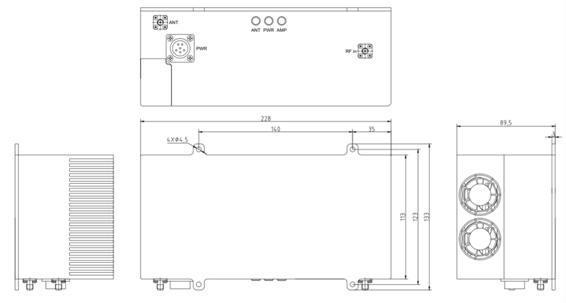

Outline Dimensional Drawing
