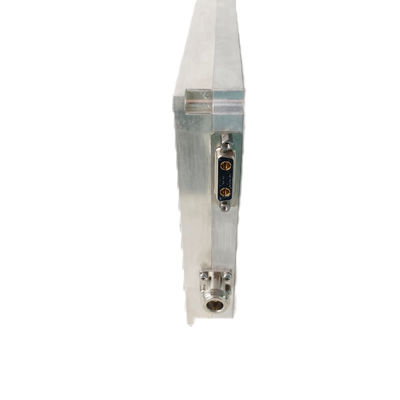

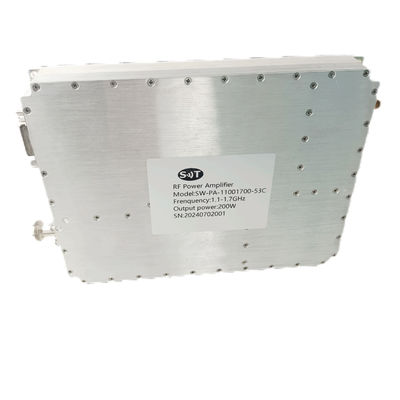

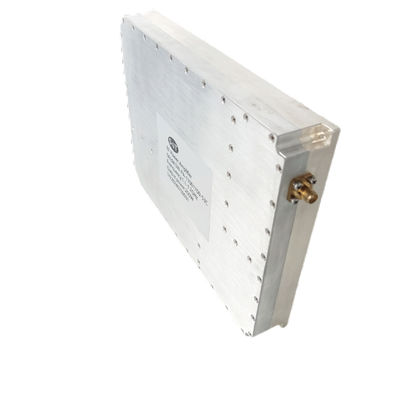

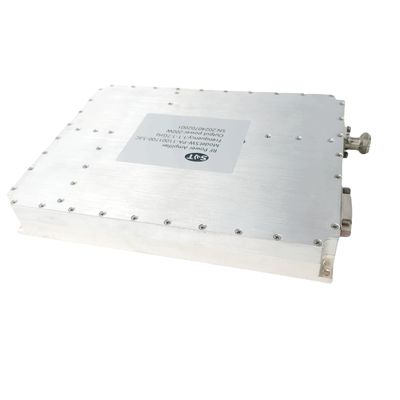

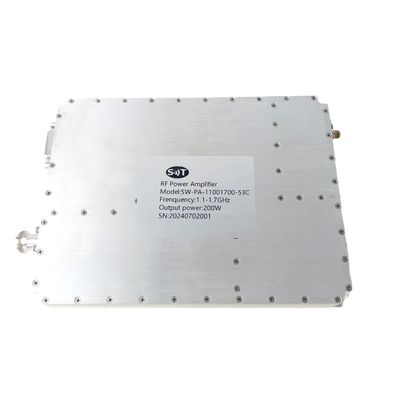

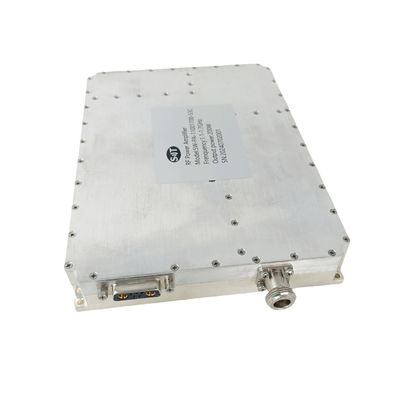

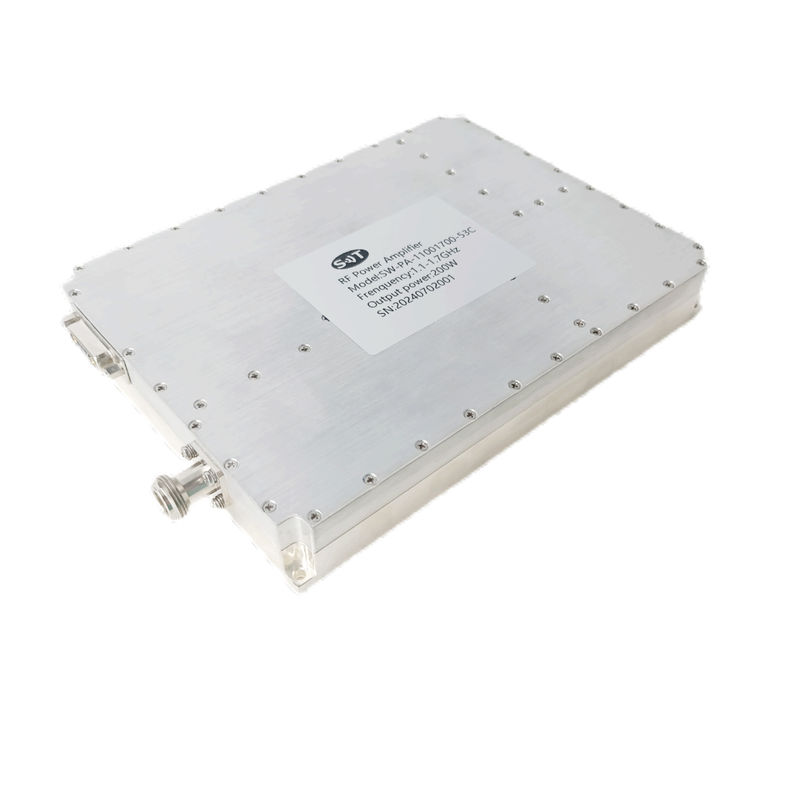

1100-1700MHz 200W High Power RF Module Power Amplifier for Increasing The Communication Signal Strength in Uav
Description
The 1100-1700MHz 200W RF Power Amplifier is a wideband high-power amplifier suitable for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier employs advanced design technology to ensure high efficiency, high gain, and stable output power.
Key Features
- Frequency Range: 1100-1700MHz
- Output Power: 200 Watts
- High Efficiency: Utilizes efficient power amplification technology to ensure high performance and low power consumption
- High Gain: Provides excellent gain performance to ensure high-quality signal amplification
- Stability: Offers outstanding frequency stability and temperature stability, adaptable to various complex environments
- Durability: Designed to meet industrial-grade standards, providing high reliability and durability
Application Scenarios
- Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication
- Radar Systems: Improves radar signal detection capability, enhancing system detection range and accuracy
- Electronic Warfare: Provides powerful signal jamming and signal suppression capabilities in electronic warfare systems
- Signal Testing: Used in various RF signal testing systems, ensuring accuracy and reliability of test results
- UAV:Meeting the needs of high-speed data transmission, improving data link stability, and ensuring reliable transmission and timely return of mission data.
Advantages
- High Efficiency and Stability: Utilizes advanced amplification technology to ensure high efficiency and stability
- Wide Frequency Coverage: Covers a frequency range of 1100-1700MHz, suitable for various applications
- Easy Integration: Compact design, easy to integrate into existing systems
- High Reliability: Meets industrial-grade standards, suitable for various harsh environments
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
1100 |
|
1700 |
MHz |
| RF INPUT |
|
0 |
|
dBm |
| Power Gain |
|
53 |
|
dB |
| P-sat Output Power |
|
53 |
|
dBm |
| Power Gain Flatness |
|
±1.5 |
|
dB |
| In/Out Impedance |
50 |
Ω |
| Spurious Signals |
|
-60 |
|
dBc |
| Harmonic Signals |
|
-15 |
|
dBc |
| Operating Voltage |
|
28 |
|
V |
| Currents |
|
20 |
|
A |
| Input VSWR |
|
|
1.5 |
|
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
200*150*30 |
mm |
| RF Connectors (Input / Output) |
SMA-KF / N-FK |
-- |
| Control Connector |
D-SUB:Power on/power off control; Monitoring parameters include output power, temperature |
-- |
| Cooling |
Exteral Heatsink Required |
-- |
| Weight |
≤4 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. |
-20 |
+60 |
°C |
| Storage Temp. |
-40 |
+80 |
°C |
| Amplifier Safeguard Temp. |
+80 |
°C |
| Connector Definition |
| AMPLIFIER CONNECTOR TYPE: |
D-SUB 7W2 |
| TRIAD CABLE PART NUMBER: |
-- |
| NUMBER |
Definition |
DESCRIPTION |
| A1 |
VDD |
28V |
| A2 |
GND |
GND |
| 1 |
Amp Enable |
Enable : TTL "Low", Disable : TTL "High" (Low : 0~0.5V, High : 2.5~5V) |
| 2 |
Output Power monitoring |
Output Power Detection (Output analog voltage) |
| 3 |
Reverse Power monitoring |
Reverse Power Detection (Output analog voltage) |
| 4 |
Temp monitoring |
Temp monitoring (Output analog voltage) |
| 5 |
GND |
Ground |
Outline Dimensional Drawing
