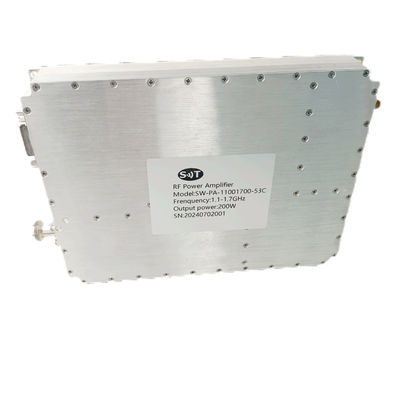

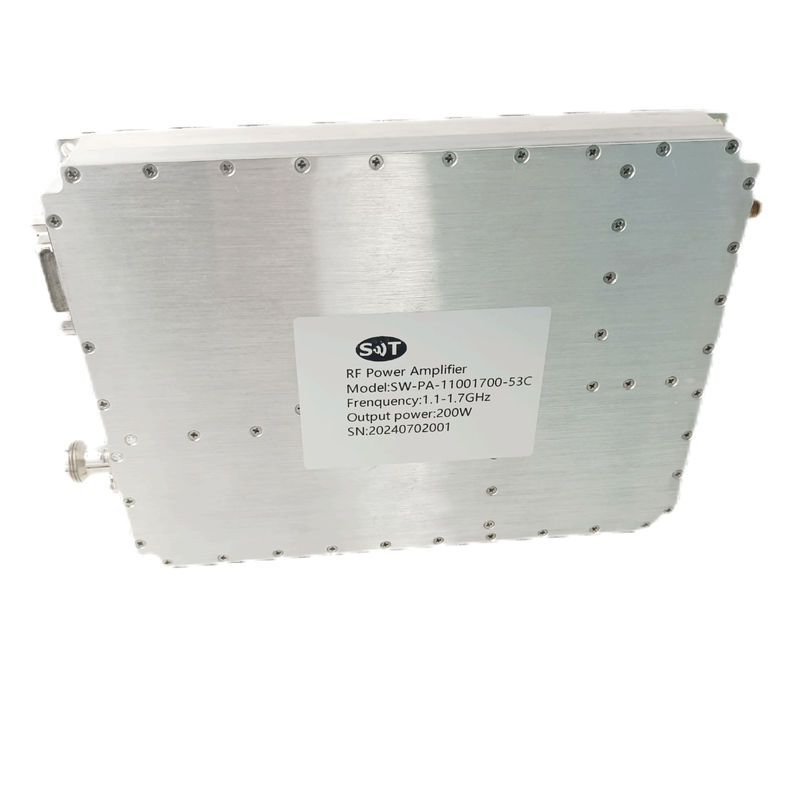

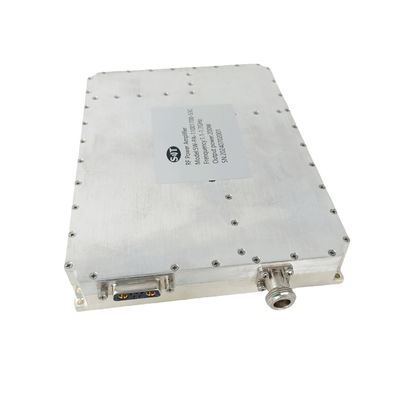

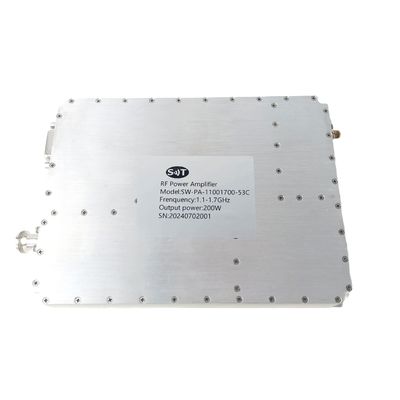

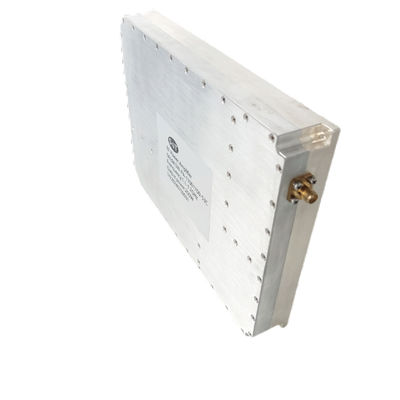

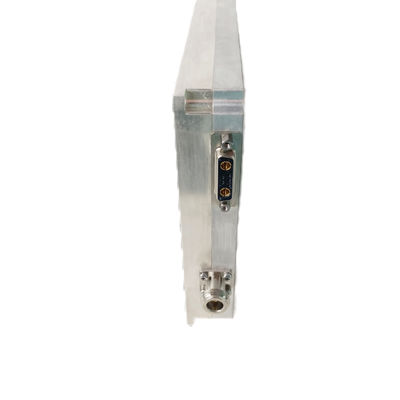

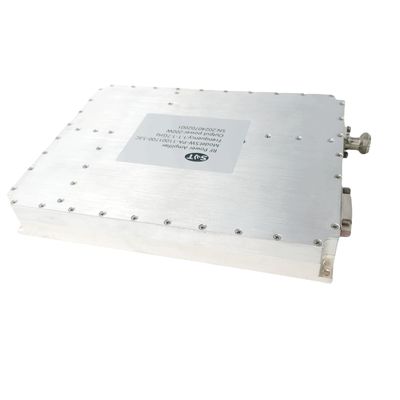

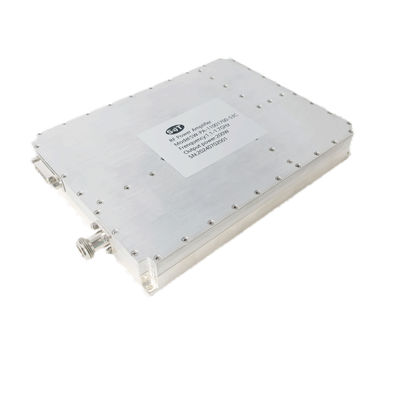

Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification
  • Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification

Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification

Place of Origin China
Brand Name SWT
Model Number SW-PA-11001700-53C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
1100~1700MHz
Operating Voltage:
28V
RF INPUT:
0dBm
P-sat Power Output:
53dBm
Input  VSWR:
1.5
Power Gain:
53dB
Power Gain Flatness:
±1.5dB
Operating Temp.:
-20~60°C
Application:
Communication,Radar Systems,Test And Measurement
Dimensions (L X W x  H):
200*150*30mm
High Light:

High-efficiency Solid State Amplifiers

,

1.1-1.7 GHz Solid State Amplifiers

,

Customised Solid State Amplifiers

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)3123/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customised High-efficiency, Highly stable 1.1-1.7 GHz High-power Solid State Amplifiers for Signal Amplification



Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification 0

 Description

The 1100-1700MHz 200W RF Power Amplifier is a wideband high-power amplifier suitable for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier employs advanced design technology to ensure high efficiency, high gain, and stable output power.

Key Features

  1. Frequency Range: 1100-1700MHz
  2. Output Power: 200 Watts
  3. High Efficiency: Utilizes efficient power amplification technology to ensure high performance and low power consumption
  4. High Gain: Provides excellent gain performance to ensure high-quality signal amplification
  5. Stability: Offers outstanding frequency stability and temperature stability, adaptable to various complex environments
  6. Durability: Designed to meet industrial-grade standards, providing high reliability and durability

Application Scenarios

  • Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication
  • Radar Systems: Improves radar signal detection capability, enhancing system detection range and accuracy
  • Electronic Warfare: Provides powerful signal jamming and signal suppression capabilities in electronic warfare systems
  • Signal Testing: Used in various RF signal testing systems, ensuring accuracy and reliability of test results
  • UAV:Meeting the needs of high-speed data transmission, improving data link stability, and ensuring reliable transmission and timely return of mission data.

Advantages

  • High Efficiency and Stability: Utilizes advanced amplification technology to ensure high efficiency and stability
  • Wide Frequency Coverage: Covers a frequency range of 1100-1700MHz, suitable for various applications
  • Easy Integration: Compact design, easy to integrate into existing systems
  • High Reliability: Meets industrial-grade standards, suitable for various harsh environments

Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1100   1700 MHz
RF INPUT   0   dBm
Power Gain   53   dB
P-sat Output Power   53   dBm
Power Gain Flatness   ±1.5   dB
In/Out Impedance 50 Ω
Spurious Signals   -60   dBc
Harmonic Signals   -15   dBc
Operating Voltage   28   V
Currents   20   A
Input VSWR     1.5



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200*150*30 mm
RF Connectors (Input / Output) SMA-KF / N-FK --
Control Connector D-SUB:Power on/power off control; Monitoring parameters include output power, temperature --
Cooling Exteral Heatsink Required --
Weight 4 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -20 +60 °C
Storage Temp. -40 +80 °C
Amplifier Safeguard Temp. +80 °C



Connector Definition
AMPLIFIER CONNECTOR TYPE: D-SUB 7W2
TRIAD CABLE PART NUMBER: --
NUMBER Definition DESCRIPTION
A1 VDD 28V
A2 GND GND
1 Amp Enable Enable : TTL "Low", Disable : TTL "High" (Low : 0~0.5V, High : 2.5~5V)
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring (Output analog voltage)
5 GND Ground



Outline Dimensional Drawing

Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification 1

Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification 2



Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification 3

Customised High Efficiency Highly Stable 1.1-1.7 GHz High Power Solid State Amplifiers For Signal Amplification 4
