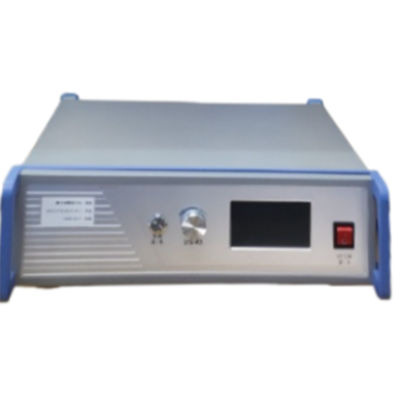

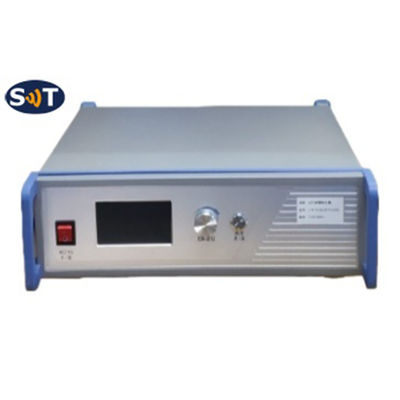

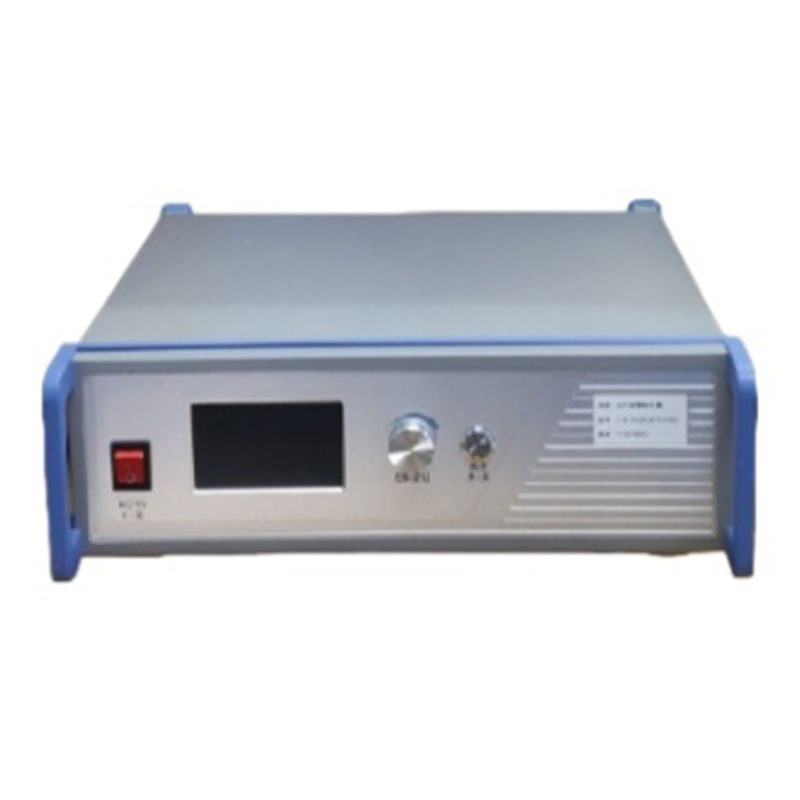

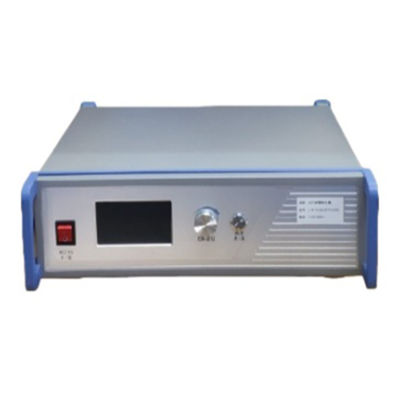

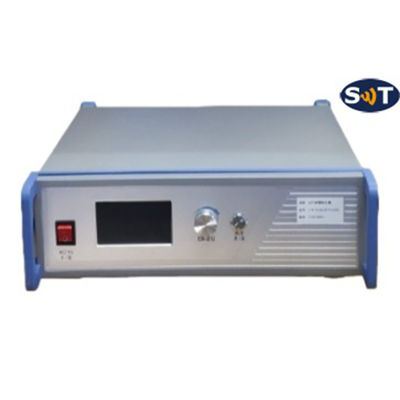

18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
  • 18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing

18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing

Place of Origin China
Brand Name SWT
Model Number SWT-18~26.5GHz 50W
Product Details
Name:
RF Power Amplifier
Operating Frequency:
18~26.5GHz
Output Power:
50W
Gain:
47 DB
Overall Dimensions:
443×500×133mm3
Energy Interface:
Input 2.4mm (F)
Output Wr42 Cooling Method:
Built-in Air Cooling
Voltage U:
220VAC
Current I:
1.8A
Application:
Communication,Radar Systems,Test And Measurement
Highlight:

26.5GHz Travelling Wave Tube Power Amplifier

,

Measurement Travelling Wave Tube Power Amplifier

,

50W Travelling Wave Tube Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
18GHz - 26.5GHz Continuous Wave 50W Amplifier Travelling Wave Tube Power Amplifier For Measurement and Testing
Product Description
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 0
The 18-26.5 GHz 50W Travelling Wave Tube (TWT) power amplifier provides high-power amplification for high-frequency applications.
It is used in satellite communication for ground stations and terminals, radar systems for weather and military purposes, 5G
communication for base stations and devices, electronic warfare for jamming and suppression, scientific research for
high-frequency experiments, and RF testing equipment for performance evaluation.
Input power
0dBm
-3~3dBm
Input VSWR
2.0:1
≤2.5:1
Output VSWR
2.0:1
≤2.5:1
Harmonic rejection ratio
-8dBc
-7dBc
Noise power spectral density
-75dBm/MHz
≤-70dBm/MHz
Freq
(GHz)
Typ.
Power
(W)
Min.
Power
(W)
18
60
50
19
63
50
20
68
50
21
68
50
22
67
50
23
65
50
24
66
50
25
60
50
26
62
50
26.5
55
50
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 1
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 2
Company Profile
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 3
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 4
Nanjing Shinewave Technology Co.,Ltd.is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.
Showroom
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 5
Customer Photos
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 6
Why Choose Us
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 7
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 8
Certifications
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 9
Packing&Shipping
18GHz - 26.5GHz Continuous Wave 50W Travelling Wave Tube Power Amplifier for Measurement and Testing 10
FAQ
1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

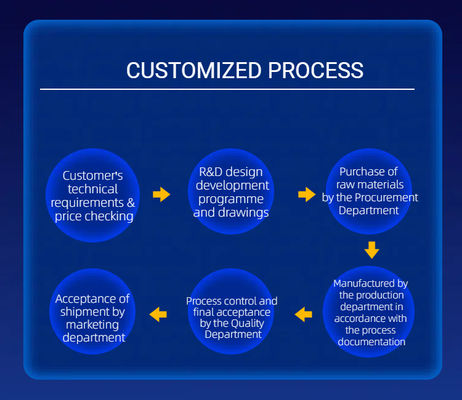

2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.
3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.
4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.
5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight. 6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
