High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications
  • High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications

High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications

Place of Origin China
Brand Name SWT
Model Number SWT-26.5~40GHz-100W
Product Details
Name:
RF Power Amplifier
Operating Frequency:
26.5~40GHz
Output Power:
100W
Gain:
50 DB
Overall Dimensions:
443×500×133mm3
Energy Interface:
Input 2.4mm (F)
Output Wr42 Cooling Method:
Built-in Air Cooling
Voltage U:
220VAC
Current I:
1.8A
Application:
Satellite Communication, Radar Systems
Highlight:

100W Travelling Wave Tube Power Amplifier

,

40GHz Travelling Wave Tube Power Amplifier

,

26.5GHz Travelling Wave Tube Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier for Millimeter-Wave Applications
Product Description
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 0

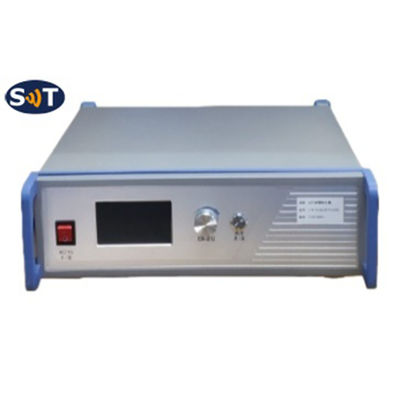

This Travelling Wave Tube Power Amplifier (TWT PA) operates over a frequency range of 26.5~40 GHz, suitable for millimeter-wave applications. It provides 100W of output power, meeting the high power requirements of applications such as satellite communications and radar systems. Additionally, with a 50 dB power gain, it significantly enhances the strength of the input signal, ensuring high signal quality over long-distance transmission. This makes the amplifier ideal for high-frequency applications that demand both high power and high gain.
Input power
0dBm
-3~3dBm
Input VSWR
2.0:1
≤2.5:1
Output VSWR
2.0:1
≤2.5:1
Harmonic rejection ratio
-8dBc
-7dBc
Noise power spectral density
-75dBm/MHz
≤-70dBm/MHz
Freq
(GHz)
Typ.
Power
(W)
Min.
Power
(W)
26.5
130
100
27
120
100
28
130
100
29
150
100
30
150
100
31
150
100
32
150
100
33
150
100
34
150
100
35
140
100
36
130
100
37
130
100
38
120
100
39
120
100
40
120
100

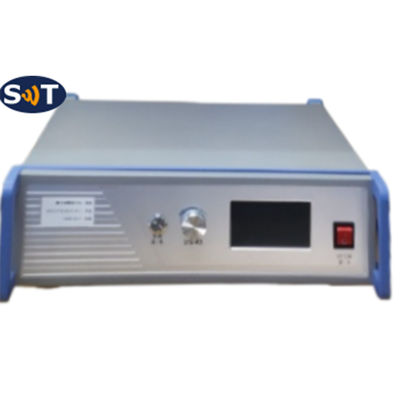

High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 1
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 2
Company Profile
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 3
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 4
Nanjing Shinewave Technology Co.,Ltd.is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.
Showroom
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 5
Customer Photos
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 6
Why Choose Us
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 7
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 8
Certifications
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 9
Packing&Shipping
High Performance 26.5~40GHz 100W Travelling Wave Tube Power Amplifier For Millimeter-Wave Applications 10
FAQ
1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.
2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.
3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.
4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.
5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight. 6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
