Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
  • Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems

Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems

Place of Origin China
Brand Name SWT
Model Number SWT-26.5~40GHz-200W
Product Details
Name:
RF Power Amplifier
Operating Frequency:
26.5~40GHz
Output Power:
200W
Gain:
53 DB
Overall Dimensions:
443×600×178mm3
Energy Interface:
Input 2.4mm (F) / Output Wr42
Output Wr42 Cooling Method:
Built-in Air Cooling
Voltage U:
220VAC
Current I:
5A
Application:
Satellite Communication, Radar Systems
Weight:
≤ 35kg
Highlight:

Long Lasting Twt Power Amplifier

,

200W Twt Power Amplifier

,

26.5~40GHz Twt Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems
Product Description
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 0

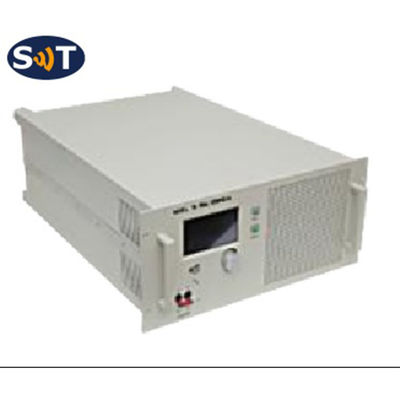

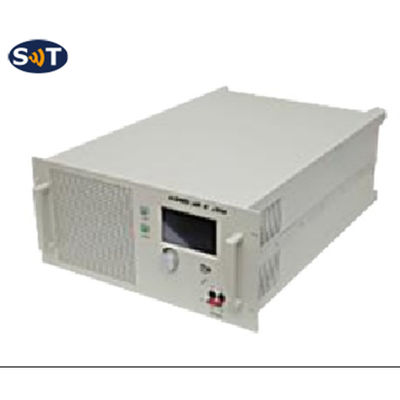

This Travelling Wave Tube Power Amplifier (TWT PA) operates over a frequency range of 26.5~40 GHz, suitable for millimeter-wave applications. It provides 200W of high output power, meeting the needs for strong signal amplification in applications such as satellite communications and radar systems. With a 53 dB power gain, it ensures significant enhancement of the input signal, guaranteeing high-quality signal transmission and coverage. This amplifier is ideal for complex applications requiring high power, wide frequency range, and substantial gain.
Input power
0dBm
-3~3dBm
Input VSWR
2.0:1
≤2.5:1
Output VSWR
2.0:1
≤2.5:1
Harmonic rejection ratio
-8dBc
-7dBc
Noise power spectral density
-75dBm/MHz
≤-70dBm/MHz
Freq
(GHz)
Typ.
Power
(W)
Min.
Power
(W)
26.5
212
200
27
245
200
28
251
200
29
258
200
30
250
200
31
245
200
32
236
200
33
231
200
34
232
200
35
236
200
36
229
200
37
226
200
38
225
200
39
209
200
40
212
200

Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 1
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 2
Company Profile
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 3
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 4
Nanjing Shinewave Technology Co.,Ltd.is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.
Showroom
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 5
Customer Photos
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 6
Why Choose Us
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 7
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 8
Certifications
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 9
Packing&Shipping
Long Lasting 26.5~40GHz-200W Twt Power Amplifier for Satellite Communications and Radar Systems 10
FAQ
1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.
2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.
3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.
4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.
5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight. 6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
