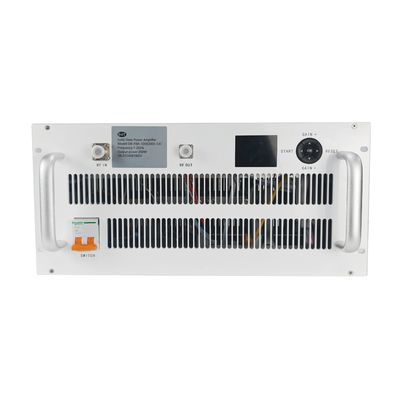

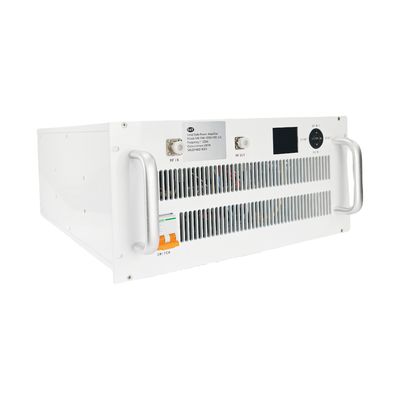

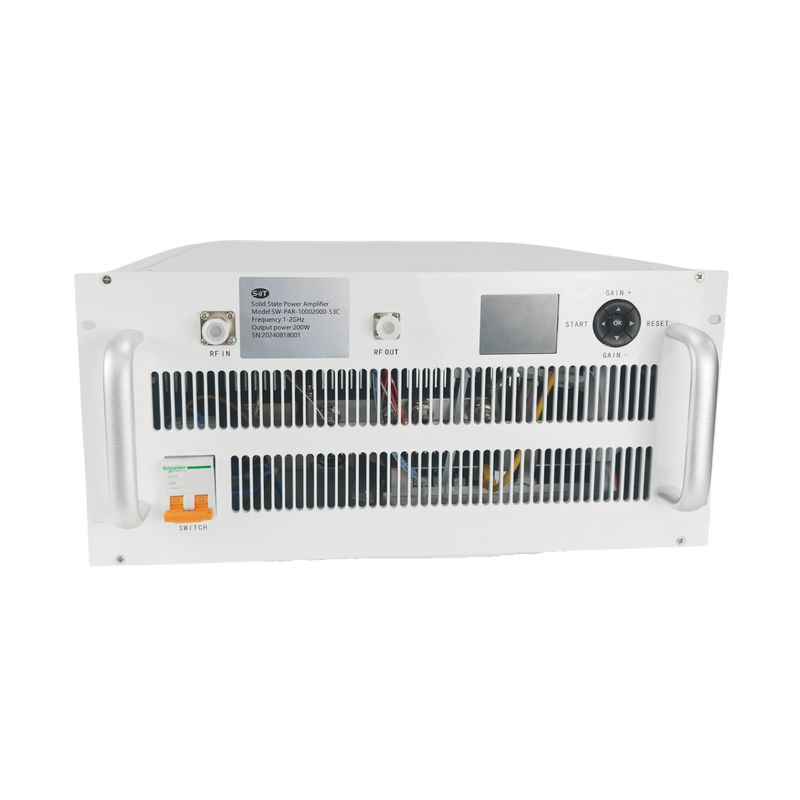

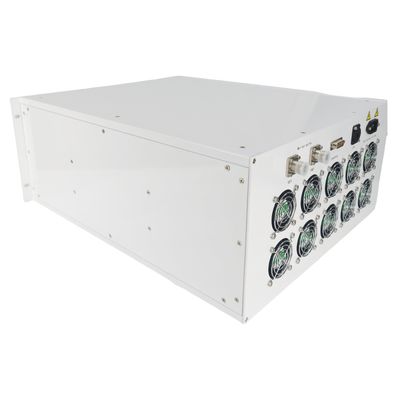

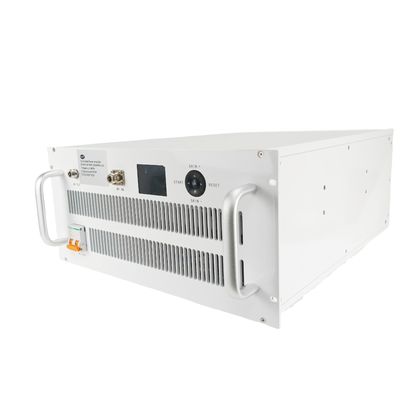

High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement
  • High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement

High Performance And Reliability1000-2000 MHz 200W RF Power Amplifier For Test And Measurement

Place of Origin China
Brand Name SWT
Model Number SW-PAR-10002000-53C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
1-2GHz
Psat Output Power:
200W
Gain:
53dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dbc
Harmonic Signals:
-15dbc
Operating Temp.:
0~45°c
Application:
EMC Test
Transport Package:
Carton
Specification:
482*550*223mm
High Light:

High Performance RF Power Amplifier

,

200W RF Power Amplifier

,

1000-2000 MHz RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)7100/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Performance and Reliability1000-2000 MHz 200W RF Power Amplifier for Test and Measurement

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication

Product Description

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication
The 1000-2000 MHz 200W RF Power Amplifier is a robust rackmount device designed for standard 19-inch racks with a height of 5U. It operates within a frequency range of 1000 to 2000 MHz, providing up to 200 Watts of output power, making it ideal for applications such as wireless communication, radar systems, satellite communication, and broadcasting. With features like high efficiency, built-in protection against overloads and overheating, and compatibility with 50Ω connectors, this amplifier ensures stable signal transmission and reliable performance in various environments. Its remote control capability further enhances its usability in integrated systems.
Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication
Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication


Specification

Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1000   2000 MHz
RF INPUT   0   dBm
Power Gain   53   dB
P-sat Output Power   53   dBm
Power Gain Flatness   ±3   dB
In/Out Impedance 50 Ω
Spurious Signals   -60   dBc
Harmonic Signals   -15 -10 dBc
Operating Voltage 200 220 260 V AC
Supply Power     1500 W
Input VSWR     2
MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 5U high, 482*550*223 mm
RF Connectors (Input / Output) N-K / N-K (female) --
Control Connector DB15:Power on/power off control; Gain Control; Monitoring parameters include output power, temperature
Remote control and monitoring can be realized through RS232
--
Control Connector RJ45:Remote control and monitoring can be realized through LAN --
Cooling Built-in cooling system, forced air cooling --
Weight ≤45 kg
ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. 0 +45 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, output mismatch protection

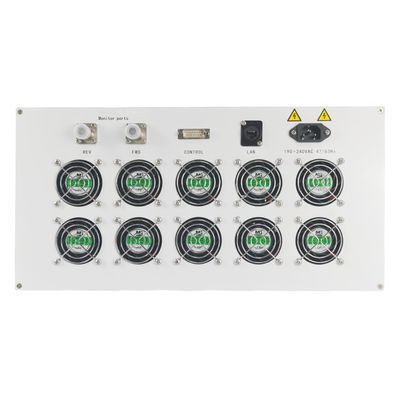

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: --
TRIAD CABLE PART NUMBER: --
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 N-FK RF OUT
X3 LCD Display Human-computer interaction interface
X4 Switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB15 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port
Connector Definition
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: --
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (Output analog voltage)
3 Reverse Power monitoring Reverse Power Detection (Output analog voltage)
4 Temp monitoring Temp monitoring alarm (Output analog voltage)
5 GND GND
6 RXD RS232 serial bus interface (TTL)
7 TXD
8 GND
9-15 NC NC
