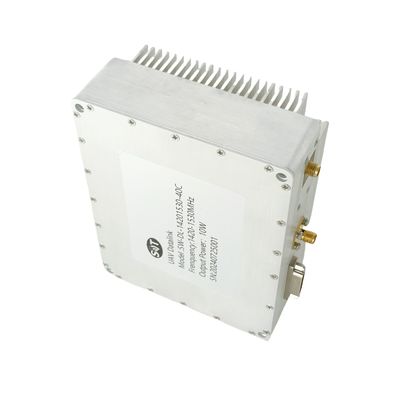

Military Grade UAV Video Transmission 1420-1530MHz 10W Amplifier Provides Excellent Signal Integrity

Place of Origin China
Brand Name SWT
Model Number SW-DL-14201530-40C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
1420MHz~1530MHz
Weight:
≤0.6kg
Connector:
SMA-F
Operating Temp.:
2
Power Gain Flatness:
-40~70°c
Output Power:
40dBm
Specification:
128*100*46mm
Highlight:

10W UAV Video Transmission

,

Military Grade UAV Video Transmission

,

1420-1530MHz UAV Video Transmission

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD)1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
For Military-Grade UAV Video Transmission 1420-1530MHz 10W Amplifier Provides Excellent Signal Integrity and Low Latency

Product Description

1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military
The SW-DL-14201530-40C is a 10W data link power amplifier designed for military and commercial applications. It supports a frequency range of 1420 to 1530 MHz and offers modulation methods such as CoFDM (QPSK, QAM16, QAM64 TDD). This amplifier provides a maximum wireless transmission rate of 25 Mbps and supports point-to-point, point-to-multipoint, and star network configurations. It measures 128 x 100 x 46 mm, uses forced air cooling, and includes over-temperature protection.
1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military
1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military

Product Parameters

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Working frequency band 1420   1530 MHz
Channel bandwidth 1.4/3/5/10/20 MHz
Modulation method CoFDM (QPSK/QAM16/QAM64) TDD --
Output Power   40   dBm
Platform speed 700 km/h
Range Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing
Networking mode point-to-point, point-to-multi-point star network --
Data interface 1 network ports + 1 serial port --
Wireless transmission rate maximum 25Mbps, shared by all nodes in two-way transmission optional
Antenna interface 2 SMA connectors --
Operating Voltage   24   V DC
Currents     1.4 A
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Working frequency band 1420   1530 MHz
Channel bandwidth 1.4/3/5/10/20 MHz
Modulation method CoFDM (QPSK/QAM16/QAM64) TDD --
Output Power   40   dBm
Platform speed 700 km/h
Range Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing
Networking mode point-to-point, point-to-multi-point star network --
Data interface 1 network ports + 1 serial port --
Wireless transmission rate maximum 25Mbps, shared by all nodes in two-way transmission optional
Antenna interface 2 SMA connectors --
Operating Voltage   24   V DC
Currents     1.4 A
ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -40 +70 °C
Storage Temp. -40 +80 °C
Amplifier Safeguard Temp. +90 °C
Protections With over temperature protection
INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: --
TRIAD CABLE PART NUMBER: --
NUMBER interface type DESCRIPTION
X1 SMA-FK RF IN
X2 SMA-FK RF OUT
X3 Power Supply +24V Power Supply & Ethernet interface & UART

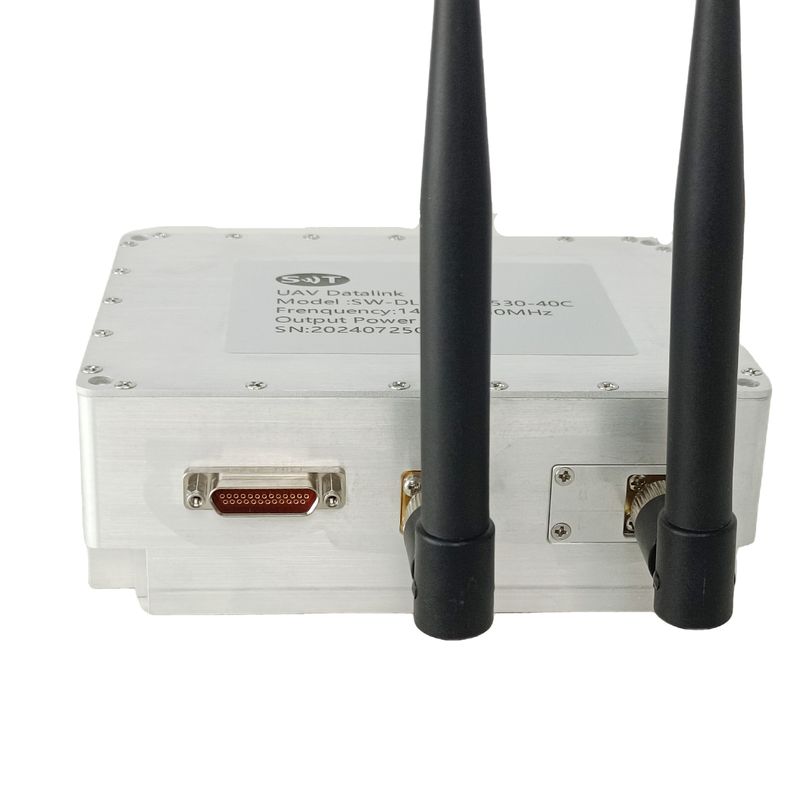

1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military
1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military
1420-1530MHz 10W Power Amplifier Designed Video Transmission Uav Datalink for Military
