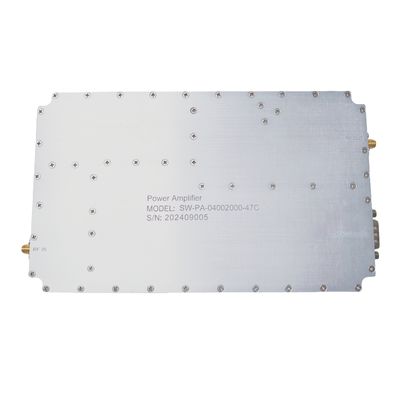

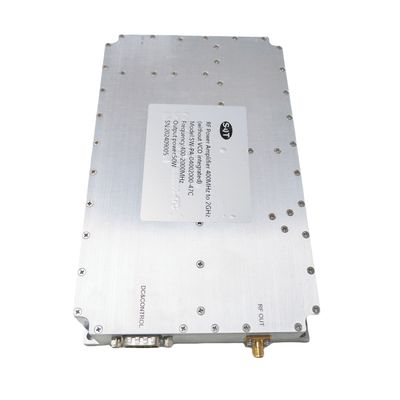

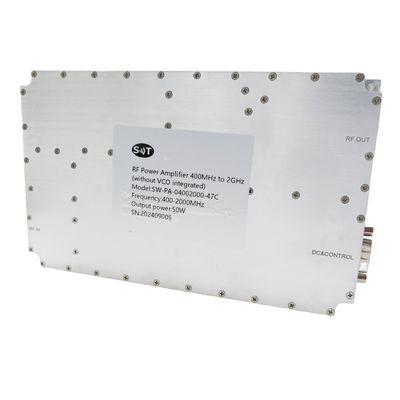

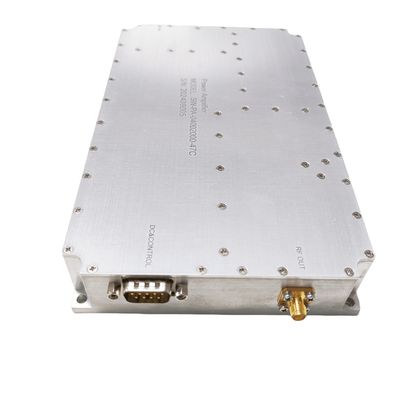

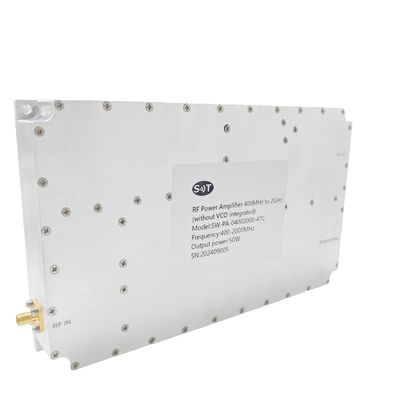

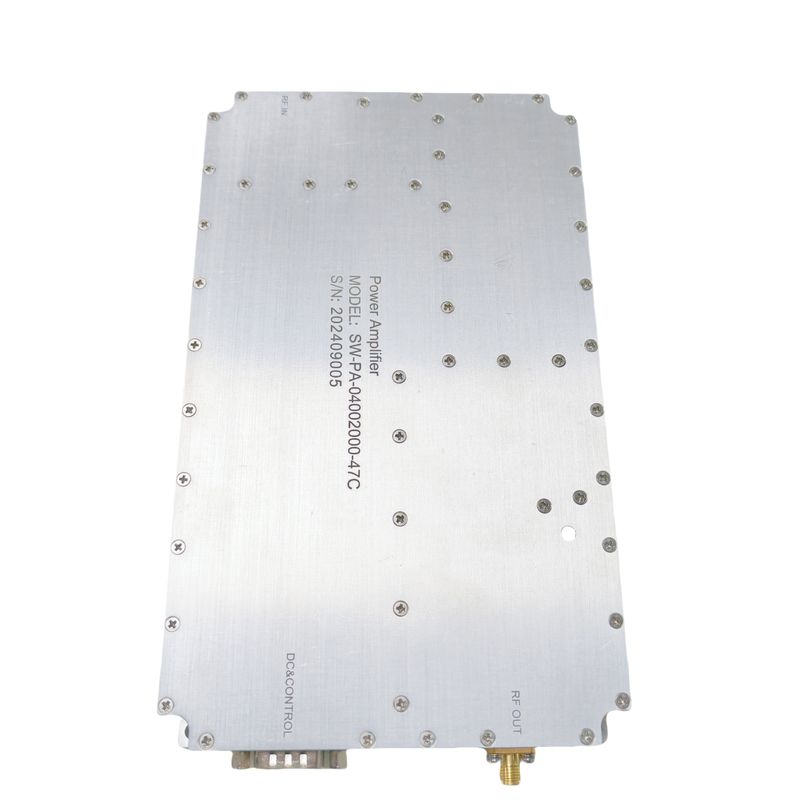

400-2000MHz 50W RF Power Amplifier For Medium- To High-Power Signal Amplification In Testing & Measurement

Place of Origin	China
Brand Name	SWT
Model Number	SW-PA-04002000-47C

Product Details

Name:

RF Power Amplifier

Operating Frequency:

400~2000MHz

RF INPUT:

0dBm

Power Gain:

49dB

P-sat Power Output:

47dBm

Input VSWR:

Power Gain Flatness:

±2.5dB

Current:

Operating Voltage:

28VDC

Operating Temp.:

-40~85°C

Application:

Communication, Broadcasting, And Radar

Dimensions (L X W x H):

200x120x30mm

Highlight:

50W RF Power Amplifier

Medium Power RF Power Amplifier

High Power RF Power Amplifier

Payment & Shipping Terms

Minimum Order Quantity

950-1500/pcs

Price

US Dollar (USD)2110/pcs

Packaging Details

Standard Packing

Delivery Time

5-8 working days

Payment Terms

T/T, D/P, D/A, L/C, Western Union

Supply Ability

100pcs/Month

Product Description

400-2000MHz 50W RF Power Amplifier for Medium- to High-Power Signal Amplification in Testing & Measurement

A 400-2000 MHz 50W RF Power Amplifier is widely used in fields like communication, broadcasting, and radar. Here's an overview of its main features and applications:

Key Features

Frequency Range: 400-2000 MHz, covering UHF and part of the VHF band, making it compatible with multiple communication and broadcasting standards.
Output Power: Typically 50W, suitable for medium- to high-power signal amplification, meeting the needs of long-distance communication, radar detection, and more.
High Efficiency Design: Designed with efficient circuitry to reduce power consumption, featuring effective thermal management to prevent overheating and extend device lifespan.
Broadband Design: Supports a wide range of input frequencies, adaptable to different bands, making it suitable for broadband applications.
High Linearity: High linear amplification characteristics minimize distortion and improve signal fidelity, ideal for amplifying digitally modulated signals.

Application Fields

Communication Equipment: Used in radio communication, microwave communication, public safety communication systems for signal amplification.
Testing & Measurement: Suitable for RF test equipment, used in signal generation and signal link testing.
Broadcasting Systems: Applied in broadcasting and transmission equipment to ensure broader signal coverage.
Radar Systems: Enhances radar signal power to increase detection range.

400-2000MHz 50W RF Power Amplifier For Medium- To High-Power Signal Amplification In Testing & Measurement 1

Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	400		2000	MHz
RF INPUT		0	5	dBm
P-sat Power Output	46.5	47		dBm
Power Gain		47		dB
Power Gain Flatness		±2.5		dB
Input VSWR			2
Operating Voltage		28		VDC
In-Out impedance		50		Ω
Current		7		A

MECHANICAL
PARAMETER	VALUE	UNIT
Dimensions (L x W x H)	200x120x30	mm
RF Connectors (Input / Output)	SMA- KFD/ SMA- KFD	--
DC / Control Connector	DB9	--
Cooling	Consider heat dissipation with the system	--
Mounting	3-6 Thru Hole	--
Weight	≤500	g

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-40	+85	°C
Humidity Range	0-100		%
PA Baseplate Shutoff Temperature	+ 90		°C

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:			DB9
TRIAD CABLE PART NUMBER:			——
PIN NUMBER	LABEL		DESCRIPTION
1-3		+VDC	+28V
4-6		GND	Ground
7		Amp Enable	Enable : TTL “Low”, Disable : TTL “High” (Low : 0~0.5V, High : 2.5~5V)
8-9		NC	NC

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication

Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.

TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service

PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions

PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication

1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.

3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.

4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.

5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.

6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
