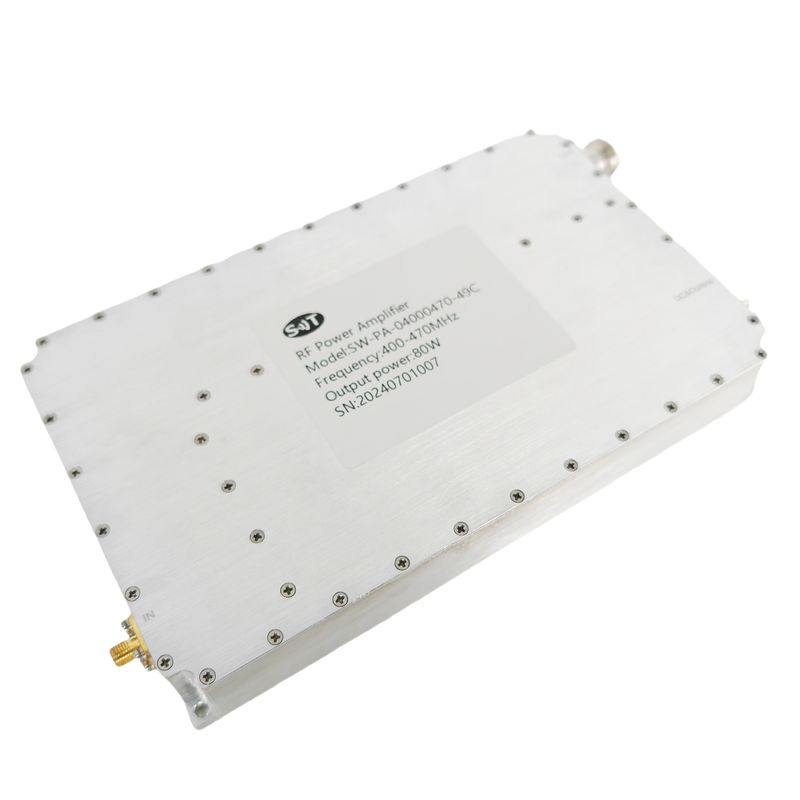

Customized 400-470MHz 80W UHF RF Power Amplifier With High Linearity And Wideband Operation For Military Systems

Place of Origin China
Brand Name SWT
Model Number SW-PA-04000470-49C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
400~470MHz
RF INPUT:
0dBm
Power Gain:
49dB
P-sat Power Output:
49dBm
Input  VSWR:
1.5
Power Gain Flatness:
±0.5dB
Current:
9A
Operating Voltage:
24VDC
Operating Temp.:
-40~60°C
Application:
Communication, Broadcasting, And Radar
Dimensions (L X W x  H):
200x120x30mm
Highlight:

80W UHF RF Power Amplifier

,

Military Systems UHF RF Power Amplifier

,

Wideband UHF RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
600-700 USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized 400-470MHz 80W UHF RF Power Amplifier with High Linearity and Wideband Operation for Military Systems
Customized 400-470MHz 80W UHF RF Power Amplifier With High Linearity And Wideband Operation For Military Systems 0

Customized 400-470MHz 80W UHF RF Power Amplifier With High Linearity And Wideband Operation For Military Systems 1

  • Output Power: 80W
  • Operating Frequency Range: 400-470 MHz
  • High Efficiency: Uses advanced amplification technology to reduce power consumption.
  • High Linearity: Ensures signal quality, supporting various modulation types.
  • Rugged Design: Reliable operation in harsh environments, suitable for industrial and communication applications.

This amplifier is commonly used in public safety communications, commercial radio, and military systems.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 400   470 MHz
RF INPUT   0   dBm
P-Sat Power Output   49   dBm
Gain   49   dB
Power Gain Flatness   ±0.5   dB
Input VSWR   1.5
Operating Voltage 20 24 30 VDC
Gain Adjust Range   31
Gain Adjust Step   1
Gain Adjustment Linearity   ±1
Power current   9   A
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
