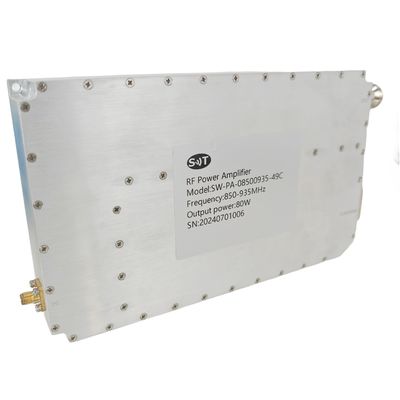

High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar
  • High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar

High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar

Place of Origin China
Brand Name SWT
Model Number SW-PA-08500935-49C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
850~935MHz
RF INPUT:
0dBm
Power Gain:
49dB
P-sat Power Output:
49dBm
Input  VSWR:
1.5
Power Gain Flatness:
±1dB
Current:
9A
Operating Voltage:
24VDC
Operating Temp.:
-40~60°C
Application:
Communication, Broadcasting, And Radar
Dimensions (L X W x  H):
200x120x30mm
Highlight:

80W RF Power Amplifier

,

Communication Systems RF Power Amplifier

,

850-935MHz RF Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
600-700 USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar


High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar 0



High Performance Solid State 850-935MHz 80W RF Power Amplifier for Communication Systems, Radar 1

  • The 850-935MHz 80W RF power amplifier operates within a frequency range of 850 to 935MHz, delivering a powerful output of 80 watts. It is designed for various applications such as communication systems, radar, and test equipment that require reliable and efficient amplification within this specific frequency band. This amplifier is suitable for both commercial and military uses, providing high gain and stable performance, making it ideal for integration into RF systems that demand robust power and consistency across a wide range of conditions.
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 850   935 MHz
RF INPUT   0   dBm
P-Sat Power Output   49   dBm
Gain   49   dB
Power Gain Flatness   ±1   dB
Input VSWR   1.5
Operating Voltage 20 24 30 VDC
Gain Adjust Range   31
Gain Adjust Step   1
Gain Adjustment Linearity   ±1
Power current   9   A
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc

Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication


Customized 1000-2000 MHz High Power 200W RF Power Amplifier for Various Wireless Communication
