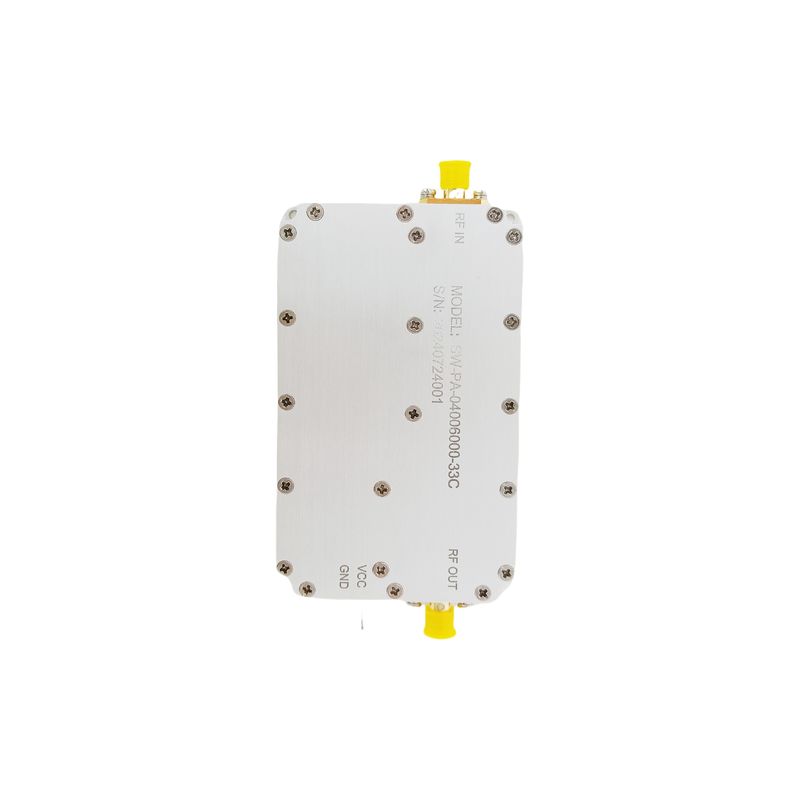

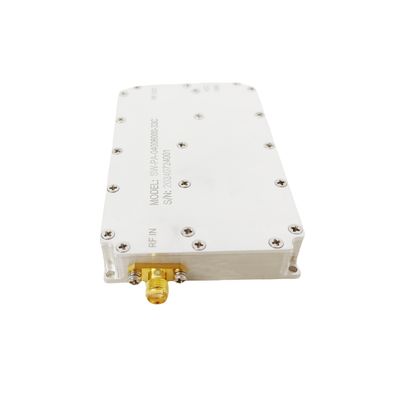

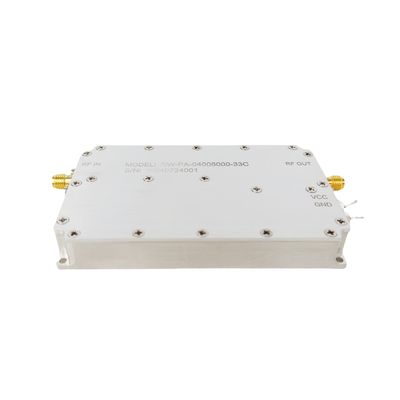

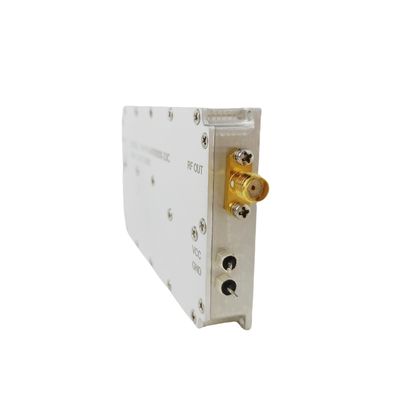

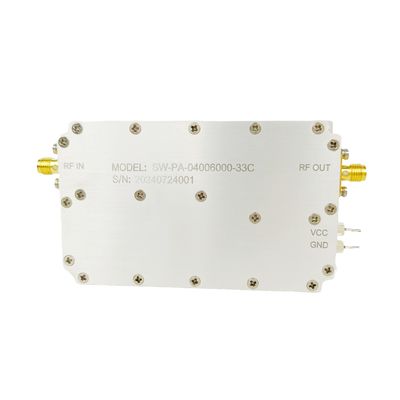

High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
  • High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem

High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem

Place of Origin China
Brand Name SWT
Model Number SW-PA-04006000-33C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
400~6000MHz
Power Gain:
47dB
P-sat Power Output:
47dBm
Input  VSWR:
2
Power Gain Flatness:
±2.5dB
Operating Voltage:
28VDC
Operating Temp.:
-40~60°C
Application:
Communication, Broadcasting, And Radar
Dimensions:
200x150x30
Highlight:

Uitra-Broadband Power Amplifier

,

Wireless Communication Power Amplifier

,

Radar Syatem Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
1400-1550USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem



The 400-6000MHz 2W RF power amplifier is a high-performance, medium-power device suitable for various RF and wireless communication applications. Key features include:

  1. Wide Frequency Range: Covers 400MHz to 6000MHz, suitable for diverse communication and testing scenarios.
  2. 2W Output Power: Provides 33dBm output, ideal for medium-range signal transmission.
  3. High Gain: Delivers 30dB gain, effectively amplifying signals.
  4. Compact Design: Small form factor for easy integration.

Applications:

Used in wireless communication, testing equipment, radar, and electronic warfare to enhance signal transmission and system performance.

High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem 0

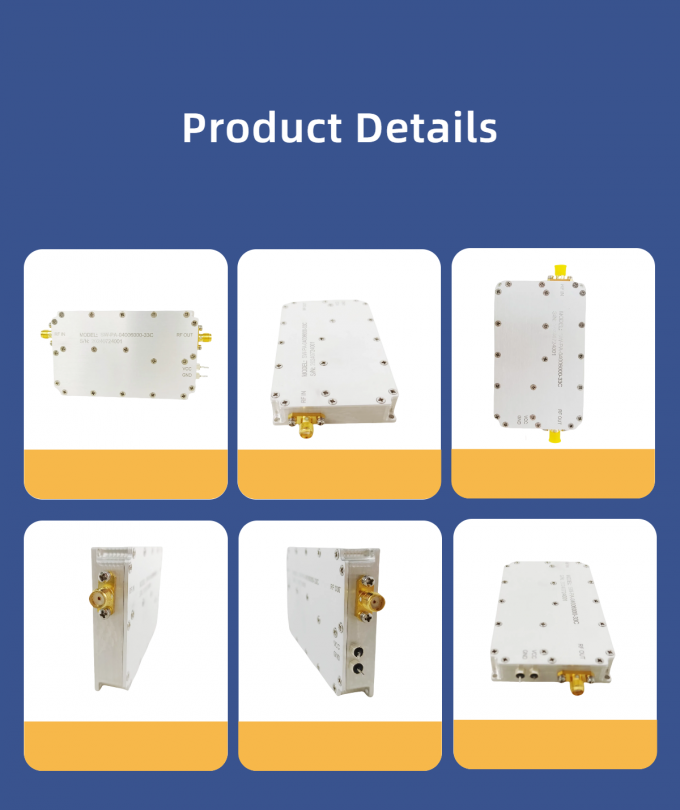

High Linearity and High Gain Uitra-Broadband Power Amplifier for Wireless Communication, Radar Syatem 1

Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 400   6000 MHz
Oeration mode Seep frequency source
P-sat Power Output 46.5 47   dBm
Power Gain Flatness   ±2.5   dB
Input VSWR     2
Operating Voltage   28   VDC
In-Out impedance   50
Current   7 8 A

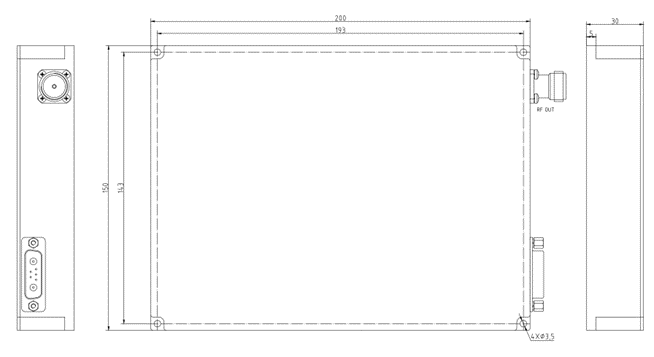

Outline Dimensional Drawing
