High Gain 37dB 5W S Band Power Amplifier for Amplifying Signals in Wireless Communication (such as Wi-Fi and Bluetooth)

Place of Origin China
Brand Name SWT
Model Number SW-PA-24002500-37C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
2400~2500MHz
Power Gain:
37dB
P-sat Power Output:
37dBm
Spurious Signals:
-60dBc
Harmonic  Signals:
-15dBc
Input  VSWR:
2
Operating Voltage:
28VDC
Operating Temp.:
-20~60°C
Application:
Communication, Broadcasting, And Radar
Dimensions:
200x150x30
Highlight:

5W S Band Power Amplifier

,

Wireless Communication S Band Power Amplifier

,

37dB S Band Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
625-700USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
High Gain 37dB 5W S Band Power Amplifier for Amplifying Signals in Wireless Communication (such as Wi-Fi and Bluetooth)

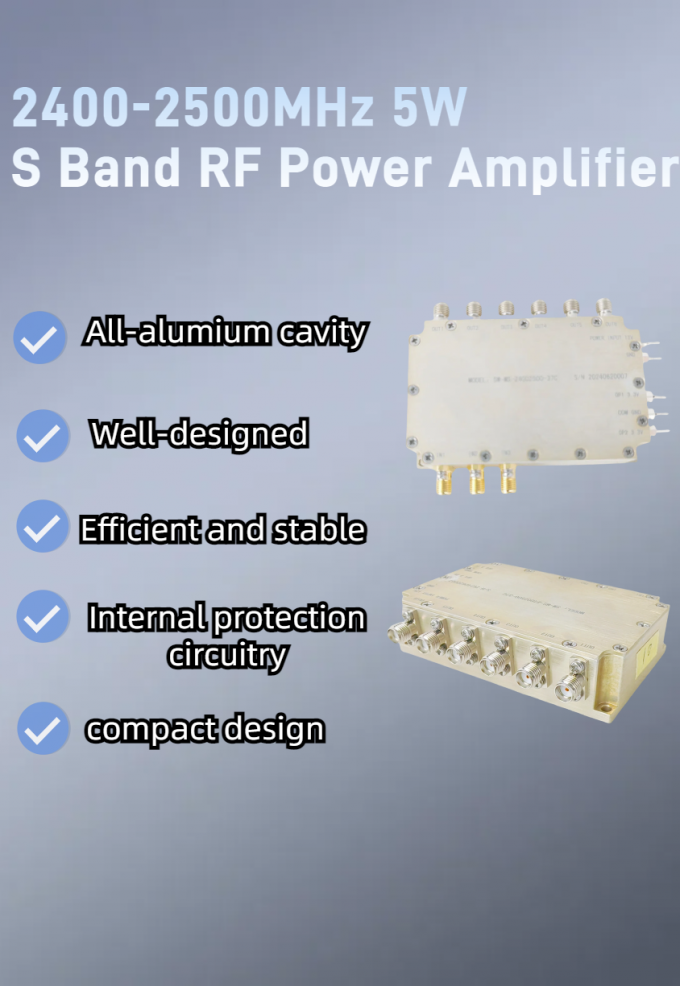

High Gain 37dB 5W S Band Power Amplifier for Amplifying Signals in Wireless Communication (such as Wi-Fi and Bluetooth) 0

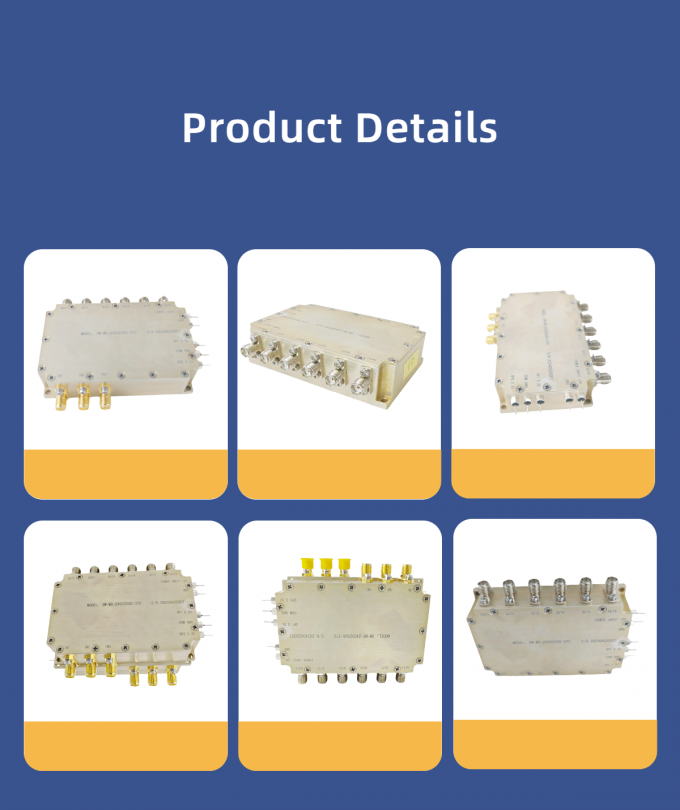

High Gain 37dB 5W S Band Power Amplifier for Amplifying Signals in Wireless Communication (such as Wi-Fi and Bluetooth) 1

The 2400-2500MHz 5W RF power amplifier is a high-power device with the following key features:

  1. Frequency Range: Covers 2400MHz to 2500MHz, suitable for 2.4GHz wireless communication (such as Wi-Fi and Bluetooth).
  2. Output Power: Provides 5W (37dBm) output, enhancing signal transmission distance and coverage.
  3. High Gain: Delivers 30dB gain, effectively amplifying signals.
  4. High Linearity: Ensures signal quality with minimal distortion.
  5. Efficient Design: Reduces power consumption and improves energy efficiency.

Applications:Used in wireless communication, RF testing, and wireless network devices to enhance signal performance and coverage.

Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2.4   2.5 GHz
RF INPUT   0   dBm
RF Gain   37   dB
P-sat output power 37     dBm
In/Out Impedance 50 Ω
Spurious Signals   -60   dBc
Harmonic Signals   -15   dBc
Input VSWR     2
Operating Voltage   20   V
Current     1.8 A

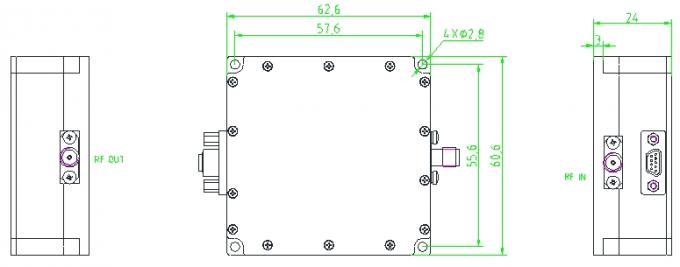

Outline Dimensional Drawing
