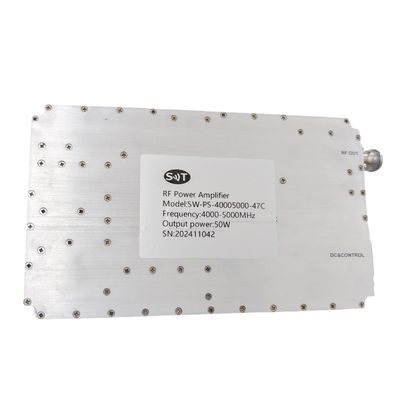

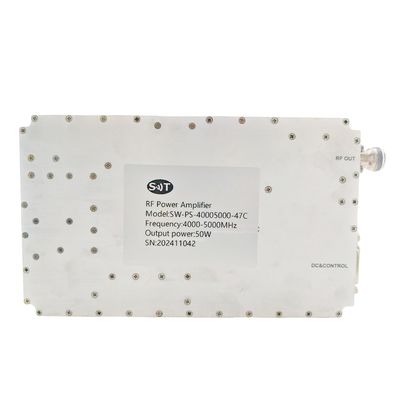

Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System

Place of Origin China
Brand Name SWT
Model Number SW-PS-40005000-47C
Product Details
Name:
RF Power Amplifier
Operating Frequency:
4000~5000MHz
Power Gain:
47dB
P-sat Power Output:
47dBm
Power Gain  Flatness:
±2.5dB
Input  VSWR:
2
Operating Voltage:
28VDC
Operating Temp.:
-40~60°C
Application:
Communication, Broadcasting, And Radar
Dimensions:
200x150x30mm
Highlight:

C Band RF Power Amplifier

,

Customized C Band Power Amplifier

,

Radar System C Band Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
2100-2300USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description
Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System

  1. The 4000-5000 MHz RF power amplifier is a high-performance device designed to operate within the 4-5 GHz frequency range, delivering up to 50W of output power. It is widely used in applications such as wireless communication systems, radar technologies, electronic warfare, and testing scenarios, meeting the needs of high-frequency and moderate-power applications.

Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System 0

Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 4000   5000 MHz
Oeration mode Sweep frequency source
P-sat Power Output 46.5 47   dBm
Power Gain Flatness   ±2.5   dB
Input VSWR     2
Operating Voltage   28   VDC
In-Out impedance   50
Current   8   A

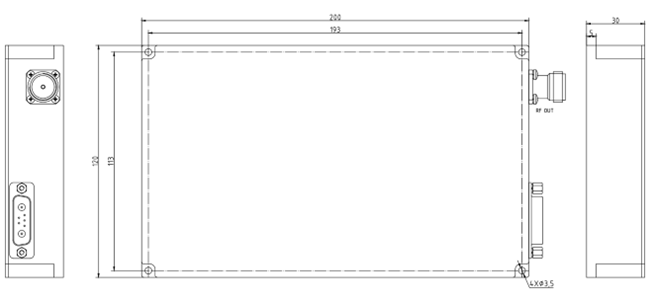

 Customized High Efficiency Communication Amplifier Module C Band RF Power Amplifier for Radar System 1
