Place of Origin | China |
Brand Name | SWT |
Model Number | SWT-TWTPA- 900010000-68C |

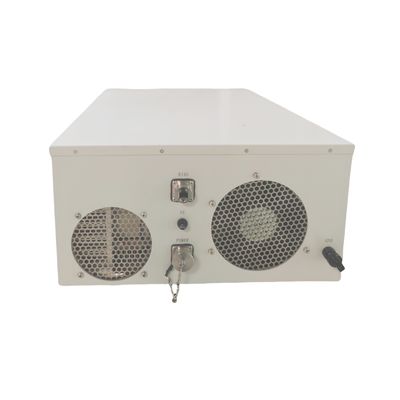

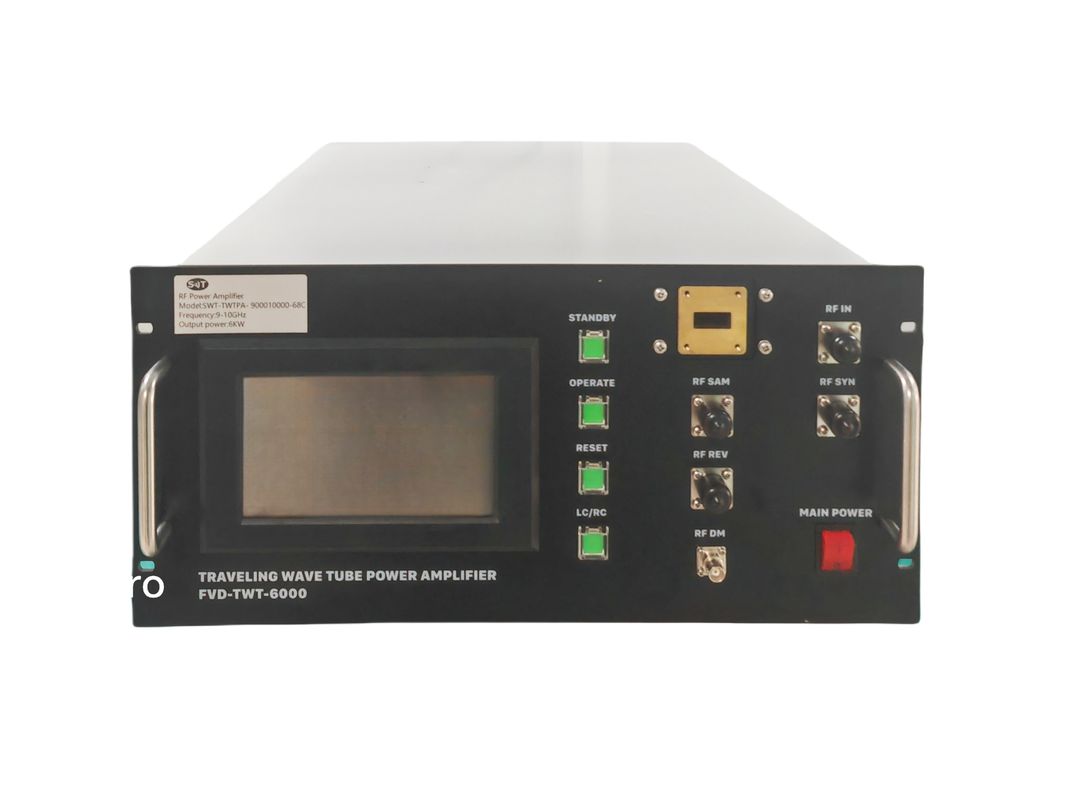

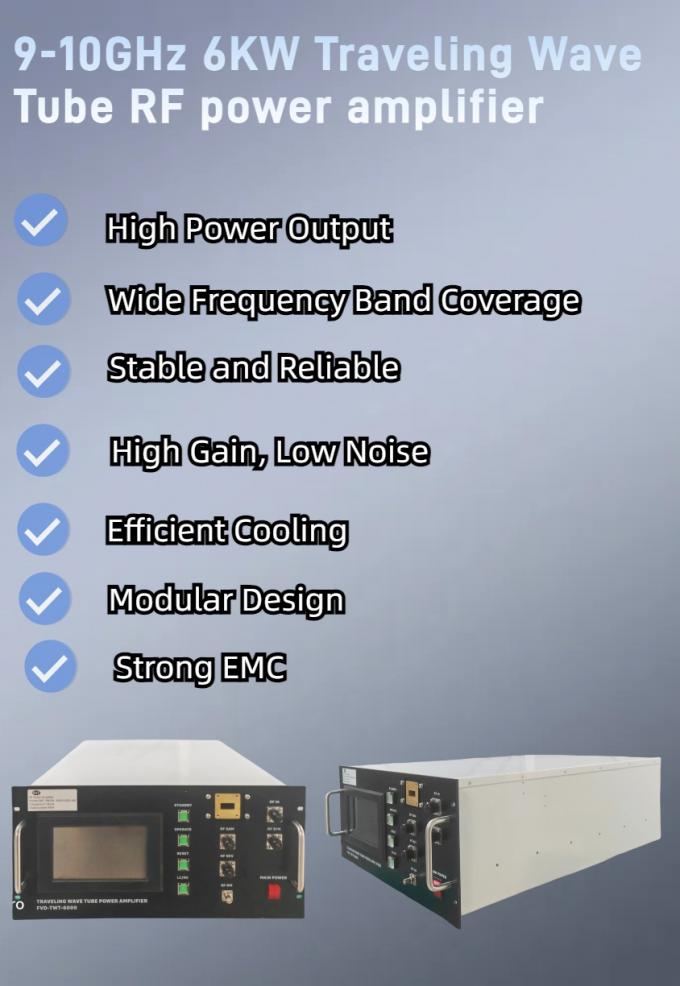

The 9-10GHz 6kW TWT RF Power Amplifier is a high-power microwave amplifier designed for applications requiring significant power output in the 9-10GHz frequency band. This device employs Traveling Wave Tube (TWT) technology as the core amplification method, ensuring high gain, wide bandwidth, and stable output for a variety of high-frequency applications.
2.Specification
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 9 | 10 | GHz | |
Operating Mode | Pulsed | |||
RF INPUT | -2 | 0 | 2 | dBm |
Power Gain | 68 | dB | ||
P-sat Output Power | 68 | 68 | dBm | |
Power Gain Flatness | ±2 | dB | ||
Pulse width | 0.26 | 30 | us | |
Repeat Rate | 10 | kHz | ||
Duty cycle | 5 | % | ||
Operating Voltage | 220 | V AC | ||
Supply Power | 2000 | 3000 | W | |
Continuous operating time in full power (6kW) |
15 |
minute |
||
RF output reverse power Samples (coupler) |
-60 |
dB |
||
RF output forward power Sample (coupler) |
-60 |
dB |
||
RF Output Pulse Video Sample | 10 mv/kw into 50Ω |
|||
Modulation Input imedance | 50 | Ω | ||
Monitor | LCD, LED, ethernet | |||
Control mode |
Local (button)/Remote(ethernet) |
|||
Input modulation pulse level | 5V(TTL) | |||
Throughput delay(from input RF/modulation pulse to output video, 50% point) | <500ns | |||
Spurious phase noise | <40dBc | |||
Operating VSWR | <1.5:1 |

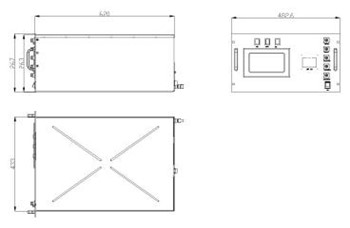

3.Outline Dimensional Drawing
1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.
2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.
3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.
4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.
5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.
6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
Contact Us at Any Time
