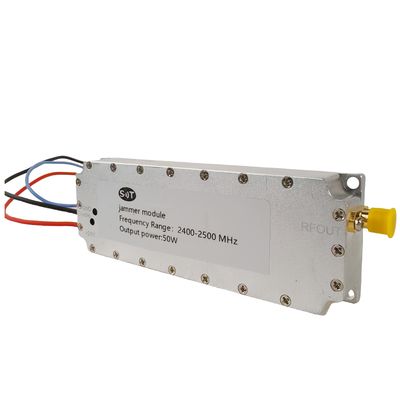

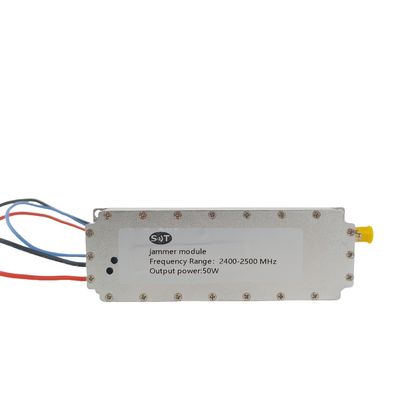

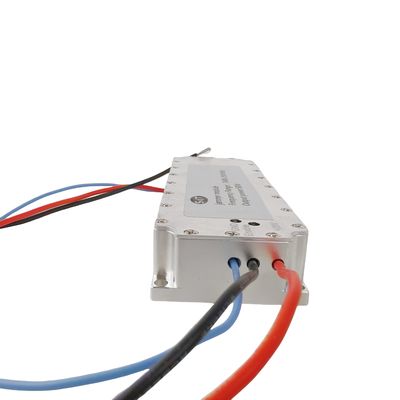

2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
  • 2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output
2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output

2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output

Place of Origin China
Brand Name SWT
Product Details
Name:
Jammer Module
Operating Frequency:
2400~2500MHz
Power Gain:
47±1 DB
P-sat Power Output:
47±1 DBm
Power Gain  Flatness:
±2dB
Operating VSWR:
<1.5:1
Operating Voltage:
220VDC
Output VSWR:
≤1.5
Dimension:
117*40*18 Mm/117*58*16mm
Weight:
230g
Application:
Drone Interference
Highlight:

50w High-Power Output Jammer Module

,

Wireless Signal Blocking Jammer Module

,

2400-2500MHz Jammer Module

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
120-150USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description

2400-2500MHz Jammer Module Wireless Signal BlockingDevice with 50w High-Power Output

Product Overview

The 2400-2500 MHz Jammer Module is an efficient wireless signal blocking device designed specifically for interference within the 2.4GHz frequency band. Below are its detailed technical features and application advantages:

  1. Frequency Range: Covers the 2400-2500 MHz band, targeting Wi-Fi, Bluetooth, drone control signals, and wireless LAN (WLAN) communication devices operating on the 2.4GHz band.

  2. Output Power: 50W high-power output, offering strong interference capability to block signals over medium to long distances.

  3. Power Supply: Operates with +28V stable power input, ensuring reliable and continuous operation under high-load conditions.

  4. Heat Dissipation Design: Constructed with high-strength aluminum alloy housing, providing excellent heat dissipation and electromagnetic shielding to prevent overheating and maintain stable performance during high-power output.

  5. Control Interface: Equipped with an enable control interface, supporting both local and remote control for easy operation, deployment, and integration.

  6. Application Scenarios:

    Anti-Drone Systems: Blocks drone control and video transmission signals, ensuring the security of sensitive areas.

    Security Facilities: Shields 2.4GHz signals in meeting rooms, government offices, and confidential areas to prevent information leaks.

    Exams and Prisons: Disrupts Wi-Fi and Bluetooth signals to prevent cheating and illegal information transmission.

    Military Exercises: Interferes with 2.4GHz wireless devices, ensuring secure military communications.

    Industrial Applications: Prevents external interference with industrial wireless control systems, ensuring stable and safe operation.

2400-2500MHz Jammer Module Wireless Signal Blocking Device With 50w High-Power Output 0



2.Specification

​

Item Spec. Remarks
Frequency Range 400-500 MHz Bandwidth Range±10MHz
Frequency Range 500-600 MHz Bandwidth Range±10MHz
Frequency Range 700-840 MHz Bandwidth Range±10MHz
Frequency Range 840-960 MHz Bandwidth Range±10MHz
Frequency Range 950-1100 MHz Bandwidth Range±10MHz
Frequency Range 1100-1300 MHz Bandwidth Range±10MHz
Frequency Range 1300-1500 MHz Bandwidth Range±10MHz
Frequency Range 2400-2500 MHz Bandwidth Range±10MHz
Frequency Range 5150-5300 MHz Bandwidth Range±10MHz
Frequency Range 5700-5900 MHz Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Working current ≤ 5A output 50W
Analog sweeping speed

Customized 50-300KHz

Standard 120 KHz

 8μ/s
Output Power (Max) 47±1 dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Customize 24-28V
Input power (Max) ≤ +10dBm Optional (If signal source from Subscriber)
Input Signal Source Built-in high-speed noise modulation signal source

Optional

(customize VCO, DDS or SDR)
Output VSWR ≤1.5 Inside circulator, VSWR protect

High Low

Temperature test

 Working Temperature -20~+65ºC Working properly
Gain Stability ±1 dB

at

-20ºC~+65ºC
Power stability ±1 dB

at

-20ºC~+65ºC
Power supply Port Positive and negative lines

24-28V; GND;

(optional: Enable control wire)
Shell Material Aluminum with natural color oxide sand blasting
Vibration Need Meet the load need of moving vehicle
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm/117*58*16mm
Screw Size M3.2
Weight 230g



3.Outline Dimensional Drawing
