5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems
  • 5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems

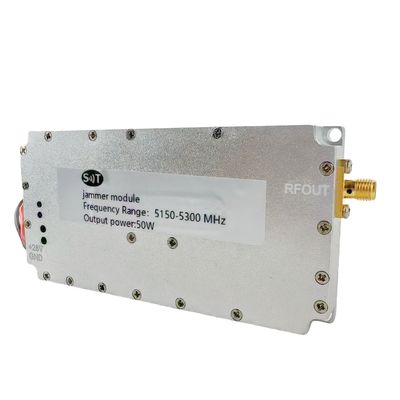

5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems

5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems

Place of Origin China
Brand Name SWT
Product Details
Name:
Jammer Module
Operating Frequency:
5150~5300MHz
Power Gain:
47±1 DB
P-sat Power Output:
47±1 DBm
Power Gain  Flatness:
±2dB
Operating VSWR:
<1.5:1
Operating Voltage:
220VDC
Output VSWR:
≤1.5
Dimension:
117*40*18 Mm/117*58*16mm
Weight:
230g
Application:
Drone Interference
Highlight:

5.1GHz Jammer Module

,

50W Jammer Module

,

5150-5300 MHz Jammer Module

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
120-150USD/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
T/T, D/P, D/A, L/C, Western Union
Supply Ability
100pcs/Month
Product Description

5.1GHz Frequency Band 50W High-Power Output 5150-5300 MHz Jammer Module for Anti-Drone Systems

Product Overview

The 5150-5300 MHz Jammer Module is a high-performance wireless signal interference device designed specifically for the 5.1GHz frequency band. Below are its technical specifications and applications:

  1. Frequency Range: Covers the 5150-5300 MHz band, targeting Wi-Fi 5 (802.11ac), drone transmission signals, and other 5.1GHz wireless devices for interference and blocking.

  2. Output Power: Delivers 50W high-power output, ensuring strong interference capabilities for medium to long-range signal disruption.

  3. Power Supply: Operates with a +28V stable power input, enabling reliable and continuous performance under high-load conditions.

  4. Heat Dissipation: Built with high-strength aluminum alloy housing, providing excellent heat dissipation and electromagnetic shielding to prevent overheating and ensure consistent high-power output.

  5. Control Interface: Equipped with an enable control interface, supporting local and remote control for quick deployment and easy integration.

  6. Application Scenarios:

    Anti-Drone Systems: Blocks 5.1GHz drone control and video transmission signals, securing airports, prisons, and military zones.

    Security and Confidentiality: Disrupts Wi-Fi 5 signals to prevent information leaks in meeting rooms, government offices, and secure facilities.

    Exam Halls and Prisons: Disables 5.1GHz wireless network signals to prevent communication-based cheating and illegal data transfer.

    Military Communication: Interferes with enemy wireless devices operating in the 5.1GHz band to secure military drills and operations.

    Industrial Control: Protects industrial environments by preventing interference with 5.1GHz wireless control systems, ensuring stable operation.

5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems 0



2.Specification

​

Item Spec. Remarks
Frequency Range 400-500 MHz Bandwidth Range±10MHz
Frequency Range 500-600 MHz Bandwidth Range±10MHz
Frequency Range 700-840 MHz Bandwidth Range±10MHz
Frequency Range 840-960 MHz Bandwidth Range±10MHz
Frequency Range 950-1100 MHz Bandwidth Range±10MHz
Frequency Range 1100-1300 MHz Bandwidth Range±10MHz
Frequency Range 1300-1500 MHz Bandwidth Range±10MHz
Frequency Range 2400-2500 MHz Bandwidth Range±10MHz
Frequency Range 5150-5300 MHz Bandwidth Range±10MHz
Frequency Range 5700-5900 MHz Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Working current ≤ 5A output 50W
Analog sweeping speed

Customized 50-300KHz

Standard 120 KHz

 8μ/s
Output Power (Max) 47±1 dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Customize 24-28V
Input power (Max) ≤ +10dBm Optional (If signal source from Subscriber)
Input Signal Source Built-in high-speed noise modulation signal source

Optional

(customize VCO, DDS or SDR)
Output VSWR ≤1.5 Inside circulator, VSWR protect

High Low

Temperature test

 Working Temperature -20~+65ºC Working properly
Gain Stability ±1 dB

at

-20ºC~+65ºC
Power stability ±1 dB

at

-20ºC~+65ºC
Power supply Port Positive and negative lines

24-28V; GND;

(optional: Enable control wire)
Shell Material Aluminum with natural color oxide sand blasting
Vibration Need Meet the load need of moving vehicle
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm/117*58*16mm
Screw Size M3.2
Weight 230g



3.Outline Dimensional Drawing

5.1GHz Frequency Band 50W High Power Output 5150-5300 MHz Jammer Module For Anti-Drone Systems 1
